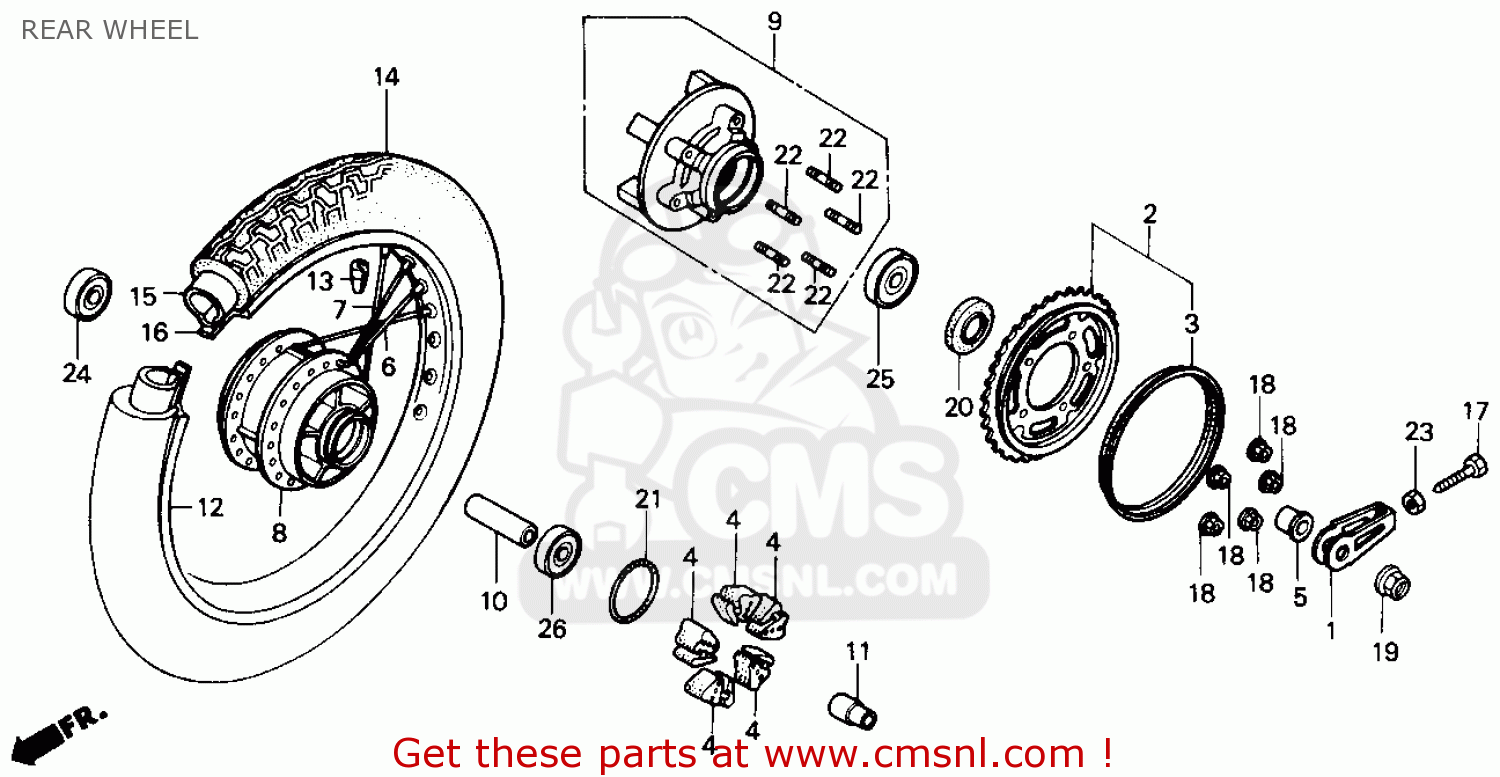

REAR WHEEL

ref

Teil #

Beschreibung

Anzahl

1

40543MK4000
ref: 1

ADJUSTER,CHAIN

€ 14.50

2

41200MK6000
ref: 2

SPRKT.COMP.,FINAL

€ 112.00

2

41200MK6505
ref: 2

SPRKT COMP,FINAL

€ 112.00

3

41212MK4000
ref: 3

ARRESTER,NOISE

€ 15.00

4

41241ML7690
ref: 4

DAMPER,RR.WHEEL

€ 12.00

5

42311KE5000
ref: 5

COLLAR,WHEEL SIDE

€ 17.00

5

44311MAY000
ref: 5

COLLAR,FR WHEEL S

€ 17.00

6

426A0MK4851
ref: 6

SPOKE SET A,RR.

€ 3.00

7

426B0MK4851
ref: 7

SPOKE SET B,RR.

€ 3.00

8

42601MK4850
ref: 8

HUB COMP.,RR.

€ 372.50

9

42610MM2770
ref: 9

FLANGE ASSY.F/DR1

€ 141.00

10

42620KAZ000
ref: 10

COLLAR,RR.AXLE DI

€ 15.00

10

42620MC4000
ref: 10

COLLAR A,RR.DIST.

€ 15.00

10

42620MK5680
ref: 10

COLLAR A,RR.AXLE

€ 15.00

11

42625MA6000
ref: 11

COLLAR B,RR.DIST

€ 23.00

12

42701MK6671
ref: 12

RIM,RR.WHEEL (MT2

€ 464.00

13

42704MK4850
ref: 13

BALANCER (5G)

€ 7.00

13

42705MK4850
ref: 13

BALANCER (10G)

€ 7.00

13

42706MK4850
ref: 13

BALANCER (15G)

€ 7.00

13

42707MK4850
ref: 13

BALANCER (20G)

€ 7.00

14

42711MK6671
ref: 14

TIRE (110/90-18)

€ 70.50

15

42712287003
ref: 15

TUBE3251350-18TR6

€ 54.50

15

42712446631
ref: 15

TUBE,TIRE

€ 35.50

16

42713300003
ref: 16

FLAP,X-18B

€ 7.50

17

90119300000
ref: 17

BOLT,CHAIN ADJUST

€ 7.50

18

90304GE8003
ref: 18

NUT,U,FLANGE,10MM

€ 4.00

19

90305MC0003
ref: 19

NUT,RR.AXLE,16MM

€ 8.00

20

91252MC4003
ref: 20

OILSEAL,28X47.2X7

€ 16.00

20

91252MC4005
ref: 20

OIL,28X47.2X7

€ 16.00

20

91252MC4013
ref: 20

OIL SEAL 28X47.2X

€ 16.00

21

91302MA6003
ref: 21

O-RING,61X2

€ 3.50

22

92716100450E
ref: 22

BOLT,STUD,10X45

€ 3.00

23

94002080000S
ref: 23

NUT,HEX.,8MM

€ 1.00

24

961506203010
ref: 24

B/BRG RAD N/COM

€ 22.00

25

961506204010
ref: 25

B/BRG RAD N/COM

€ 23.50

26

961506303010
ref: 26

B/BRG RAD N/COM

€ 34.00
