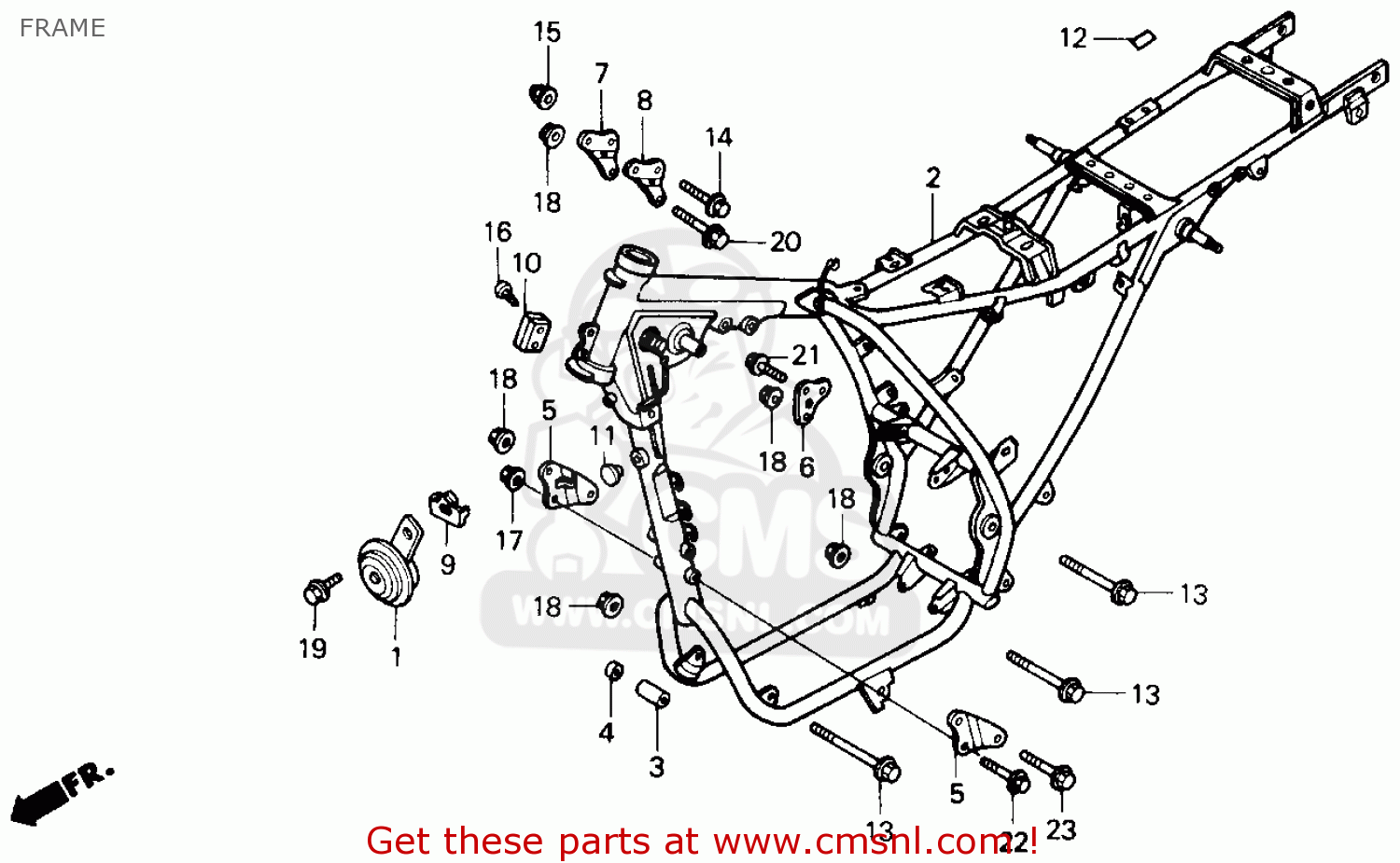

FRAME

ref

Teil #

Beschreibung

Anzahl

1

38110MK6670
ref: 1

HORN COMP.,HIGH

€ 69.00

2

50100MK6670ZA
ref: 2
A

BODY COMP.,F*NH1*

€ 1,885.00

2

50100MK6740ZA
ref: 2
AC

FRAME *NH1*

€ 1,506.50

3

50130MK4000
ref: 3

COLLAR,L FR.ENG H

€ 2.50

4

50135MK4000
ref: 4

COLLAR,R FR.ENG.H

€ 1.50

5

50350MK6010
ref: 5

STAY, R. FR. ENG HGR

€ 11.50

6

50351MK6000
ref: 6

PLATE,RR.ENGINE H

€ 8.00

7

50352MK6000
ref: 7

STAY, R.

€ 14.00

8

50353MK6670
ref: 8

STAY, L.

€ 11.00

9

50360MK6670
ref: 9

BRACKET,HORN SETT

€ 5.50

10

61402KN8000
ref: 10

COVER, FAIRING STAY

€ 9.50

11

75826634300
ref: 11

SEAL, PNL INSIDE (HO

€ 4.00

12

87565MK6670ZA
ref: 12

LABEL, COLOR (TYPE1)

€ 2.00

12

87565MK6770ZA
ref: 12

LABEL, COLOR (TYPE1)

€ 2.00

13

90105MG3000
ref: 13

BOLT,FLNG,10X110

€ 8.00

14

90218KJ2000
ref: 14

BOLT.FLANGE 8X57

€ 4.00

15

90443107000
ref: 15

NUT,HEX.CAP

€ 3.50

16

9390345480
ref: 16

SCREW,TAPPING,5X2

€ 0.50

19

957010801607
ref: 19

BOLT,FLANGE,8X16

€ 1.50

20

958011006000
ref: 20

BOLT,FLANGE,10X60

€ 2.00

21

963000801600
ref: 21

BOLT,FLANGE,8X16

€ 1.50

22

964000807000
ref: 22

BOLT,FLANGE,DR 8X

€ 2.00

23

964001007000
ref: 23

BOLT,FLANGE,10X70

€ 3.50
