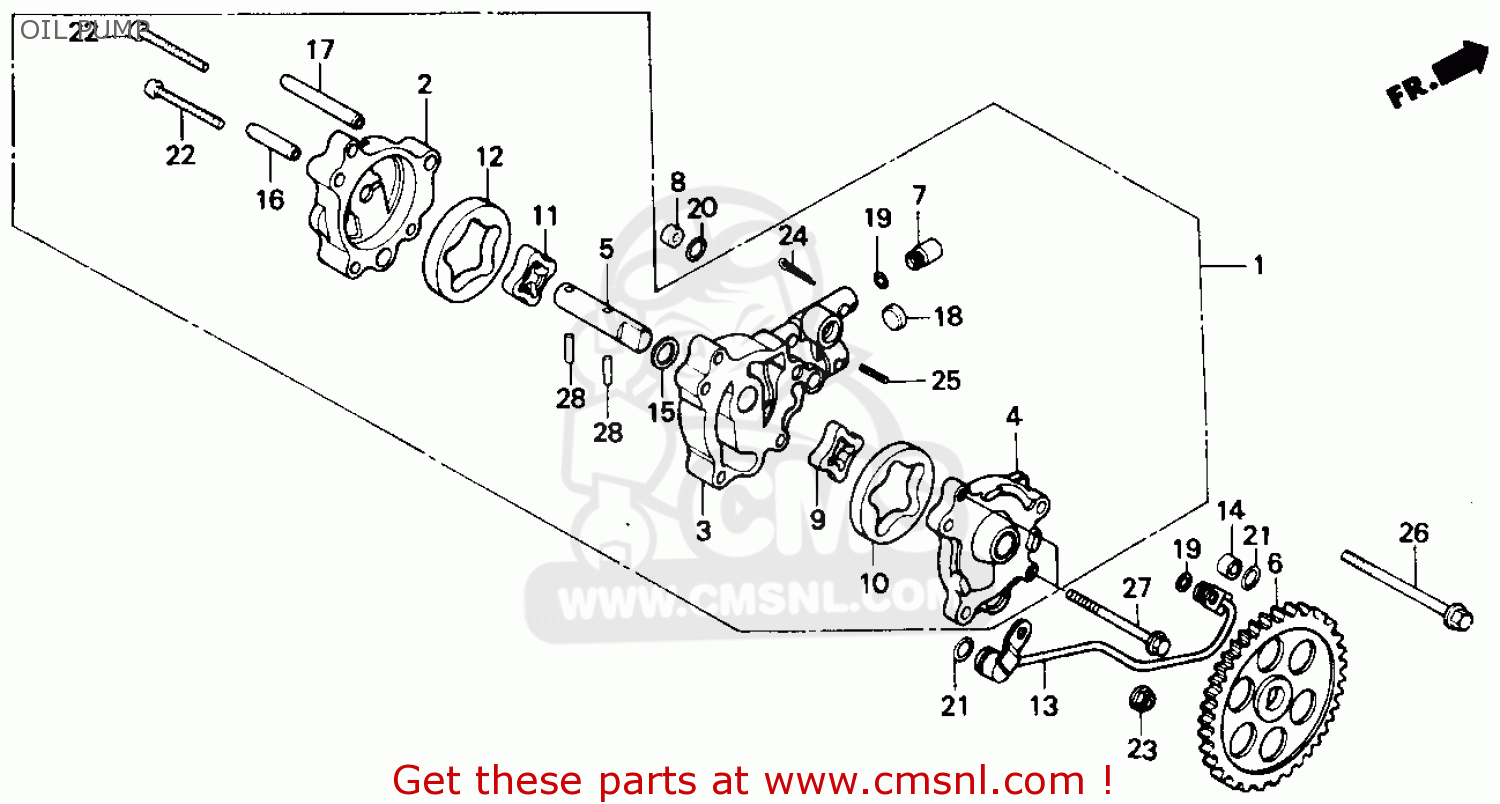

OIL PUMP

ref

Teil #

Beschreibung

Anzahl

1

15100MK4600
ref: 1

PUMP ASSY.,OIL

€ 165.50

2

15101MN9000
ref: 2

BASE,OIL PUMP

€ 33.00

3

15102MN9300
ref: 3

SPACER,OIL PUMP

€ 50.00

4

15103MG3000
ref: 4

BODY,OIL PUMP

€ 30.50

5

15104MG3000
ref: 5

SHAFT,OIL PUMP

€ 18.50

6

15105MG3000
ref: 6

GEAR,OIL PUMP DRI

€ 50.00

7

15106MK4600
ref: 7

STOPPER,OIL LEAK

€ 13.00

8

15109MG3000
ref: 8

ORIFICE,5.5MM

€ 8.50

9

15115MG3000
ref: 9

ROTOR A,PUMP IN

€ 11.50

10

15116MG3000
ref: 10

ROTOR A,PUMP OUT.

€ 17.50

11

15121MG3000
ref: 11

ROTOR B,PUMP IN.

€ 13.00

12

15122MG3000
ref: 12

ROTOR B,PUMP OUT.

€ 19.50

13

15510MK2000
ref: 13

PIPE COMP.,OIL

€ 49.00

14

17958197300
ref: 14

COLLAR,HOLDER

€ 2.50

15

90456333000
ref: 15

WASHER,THRUST

€ 3.50

16

90701MG3000
ref: 16

PINDOWEL,8X24

€ 3.00

17

90702MG3000
ref: 17

PINDOWEL,8X44

€ 2.50

18

90802MG3000
ref: 18

PLUG,SEALING,11MM

€ 2.00

19

91301473003
ref: 19

O-RING,7X1.7

€ 3.50

19

91302HA0004
ref: 19

O RING,6.8X1.8

€ 3.50

19

91306PJ4000
ref: 19

O RING, 6.8X1.9

€ 3.50

20

91301PM5A01
ref: 20

O-RING

€ 3.50

20

91302PJ4000
ref: 20

O-RING,9.6X1.9

€ 3.50

20

91302PJ4004
ref: 20

O-RING,9.6X1.9

€ 3.50

20

91305PE2003
ref: 20

O-RING 9.8X1.9

€ 3.50

21

91306MG3000
ref: 21

O-RING,1.5X9.5

€ 3.00

22

93500050400A
ref: 22

SCREW,PAN,5X40

€ 1.00

23

9405006080
ref: 23

NUT,FLANGE,6MM

€ 1.00

24

9420103200
ref: 24

PIN,SPLIT,3

€ 1.00

24

9420130200
ref: 24

PIN,SPLIT, 3.0

€ 1.00

24

9420130250
ref: 24

PIN,SPLIT,3X25

€ 1.00

24

9420130280
ref: 24

PIN,COTTER 3.0MM

€ 1.50

24

9420130300
ref: 24

PIN COTTER 3.0MM

€ 1.00

24

9420130400
ref: 24

PIN COTTER 3.0MM

€ 1.50

24

9420130450
ref: 24

PIN,C0TTER 30X45

€ 1.00

25

9430525182
ref: 25

PIN,SPRING,2.5X18

€ 1.50

26

960010605000
ref: 26

BOLT,FLANGE,6X50

€ 2.00

27

960010606000
ref: 27

BOLT,FLANGE,6X60

€ 2.00

28

9622040158
ref: 28

ROLLER,4X15.8

€ 1.00
