REAR FENDER

GSX250E 1983 (D) GENERAL EXPORT (E01)

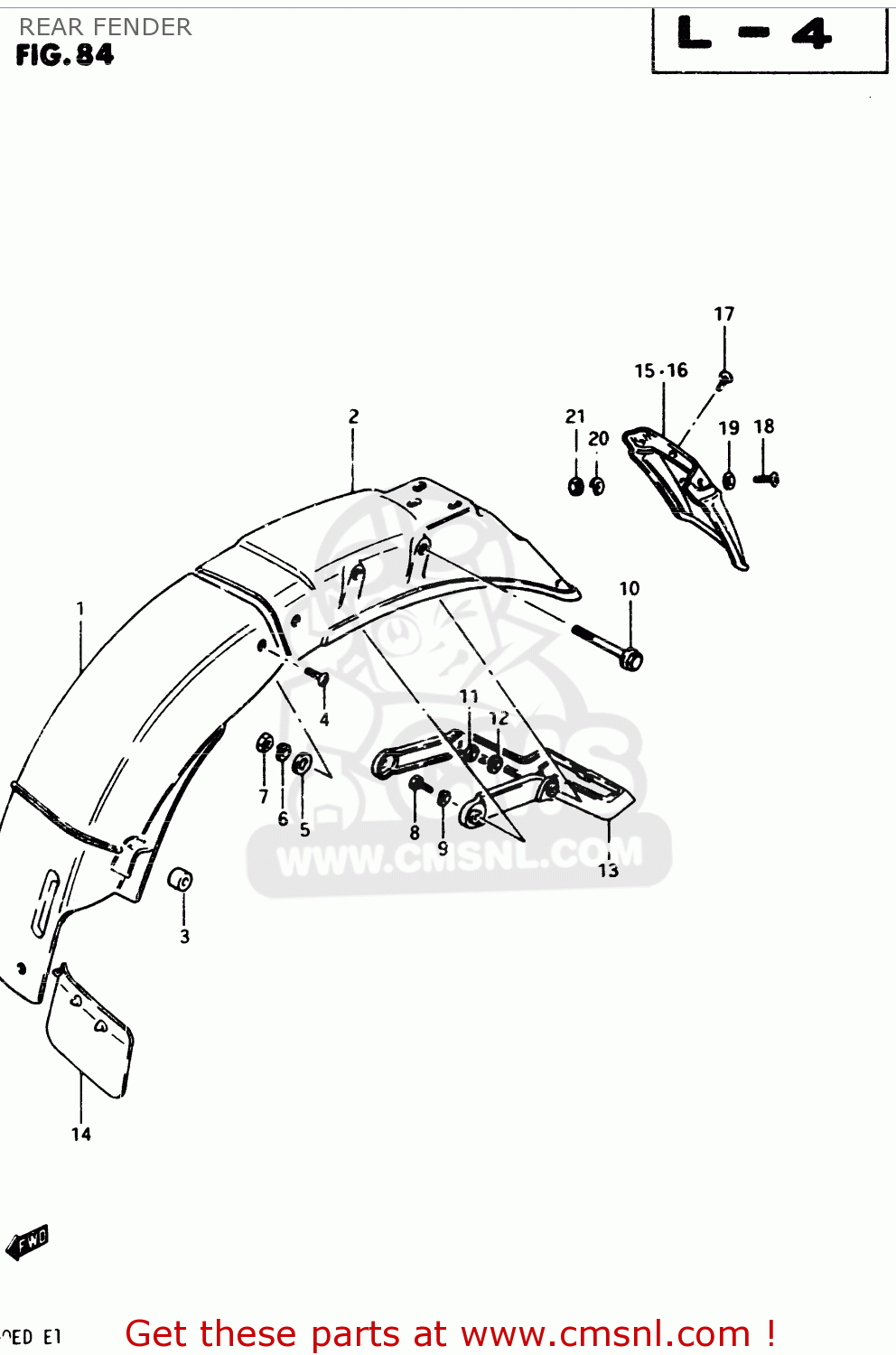

Rear fender диаграмма GSX250E 1983 (D) GENERAL EXPORT (E01)

REAR FENDER GSX250E 1983 (D) GENERAL EXPORT (E01)
REAR FENDER GSX250E 1983 (D) GENERAL EXPORT (E01)
цены в EUR
ссылка
часть #
описание
количество
1
6311244100
ссылка: 1
FENDER,REAR
€ 51.00
2-1
6311344400
ссылка: 2-1
BODY,REAR FENDER,REAR
6311344400
€ 66.50
2-2
6311344410
ссылка: 2-2
E17,E18
BODY, REAR FENDER REAR
€ 66.50
3
0932905003
ссылка: 3
CUSHION
0932905003
€ 4.00
4
0214205128
ссылка: 4
SCREW
0214205128
€ 1.50
5
0916005017
ссылка: 5
WASHER (5.5X16X1.2)
0916005017
€ 2.00
6
0832121058
ссылка: 6
LOCK WASHER
0832121058
€ 2.00
7
0831011058
ссылка: 7
NUT
0831011058
€ 1.50
8
0110706168
ссылка: 8
BOLT, UPPER
€ 2.00
9
0832121068
ссылка: 9
LOCK WASHER
0832121068
€ 1.50
10
0151708258
ссылка: 10
BOLT
0151708258
€ 2.50
11
0831012088
ссылка: 11
NUT
0831012088
€ 1.50
12
0832121088
ссылка: 12
LOCK WASHER
0832121088
€ 1.50
13
6312044400
ссылка: 13
REINFORCEMENT,REAR FENDER
€ 22.50
14
6341131900
ссылка: 14
GUIDE,RR FENDER MUD
6341131900
€ 8.00
15
6331144400
ссылка: 15
E18
EXTENTION, REAR FENDER
€ 12.50
16
6331144410
ссылка: 16
E17
EXTENTION, REAR FENDER
€ 8.50
17
0214206127
ссылка: 17
E17,E18
SCREW 6X12
0214206127
€ 1.50
18
0214206167
ссылка: 18
E17,E18
SCREW
0214206167
€ 1.50
19
0916006028
ссылка: 19
E17,E18
WASHER(6.5X18X1)
0916006028
€ 1.00
20
0832121068
ссылка: 20
E17,E18
LOCK WASHER
0832121068
€ 1.50
21
0831011068
ссылка: 21
E17,E18
NUT
0831011068
€ 1.50
