REAR COMBINATION LAMP (E18)

GSX250E 1983 (D) GENERAL EXPORT (E01)

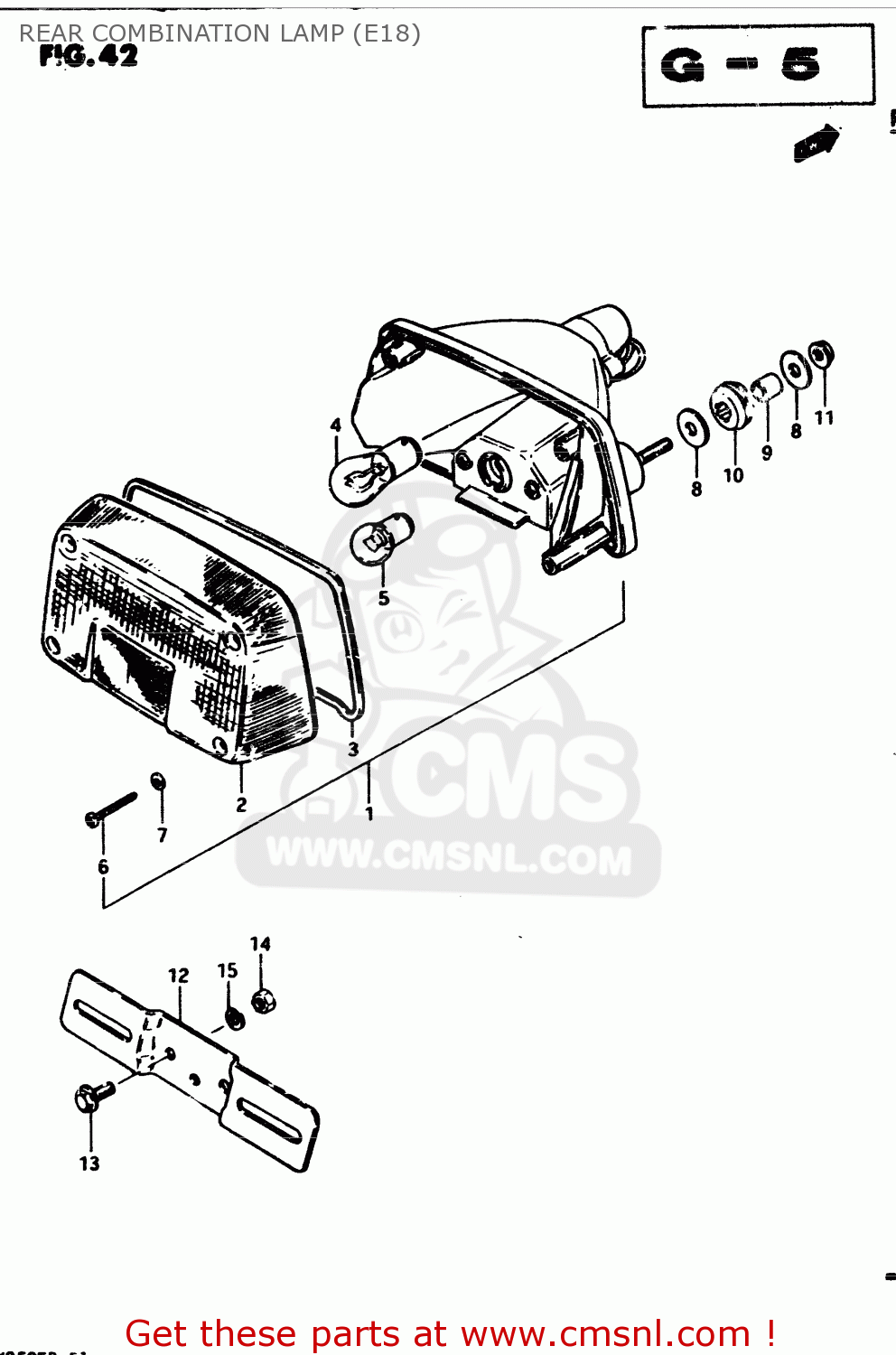

Rear combination lamp (e18) диаграмма GSX250E 1983 (D) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (E18) GSX250E 1983 (D) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (E18) GSX250E 1983 (D) GENERAL EXPORT (E01)
цены в EUR
ссылка
часть #
описание
количество
1
3571011581
ссылка: 1
LAMP ASSY, REAR COMBINATION
€ 173.00
2
3571211521
ссылка: 2
LENS,RR COMBI
3571211521
€ 59.50
3
3571311520
ссылка: 3
GASKET
3571311520
€ 5.50
4
0947112046
ссылка: 4
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
5
0947112059
ссылка: 5
EXECUTED LOCALLY
BULB
€ 4.00
6
0321104308
ссылка: 6
SCREW
0321104308
€ 1.50
7
3562743010
ссылка: 7
GASKET (NAS)
3562743010
€ 1.50
8
0916006060
ссылка: 8
WASHER
0916006060
€ 1.50
9
0918006006
ссылка: 9
SPACER (6.8X10X11.5)
0918006006
€ 2.00
10
0932009010
ссылка: 10
CUSHION
0932009010
€ 2.50
11
0831626068
ссылка: 11
NUT 6MM
0831626068
€ 2.50
12
3592733200
ссылка: 12
BRACKET, LICENSE PLATE
€ 9.50
13
0151706168
ссылка: 13
BOLT
€ 2.00
14
0831011068
ссылка: 14
NUT
0831011068
€ 1.50
15
0832121068
ссылка: 15
LOCK WASHER
0832121068
€ 1.50
