CYLINDER HEAD COVER (MODEL D)

GSX250E 1983 (D) GENERAL EXPORT (E01)

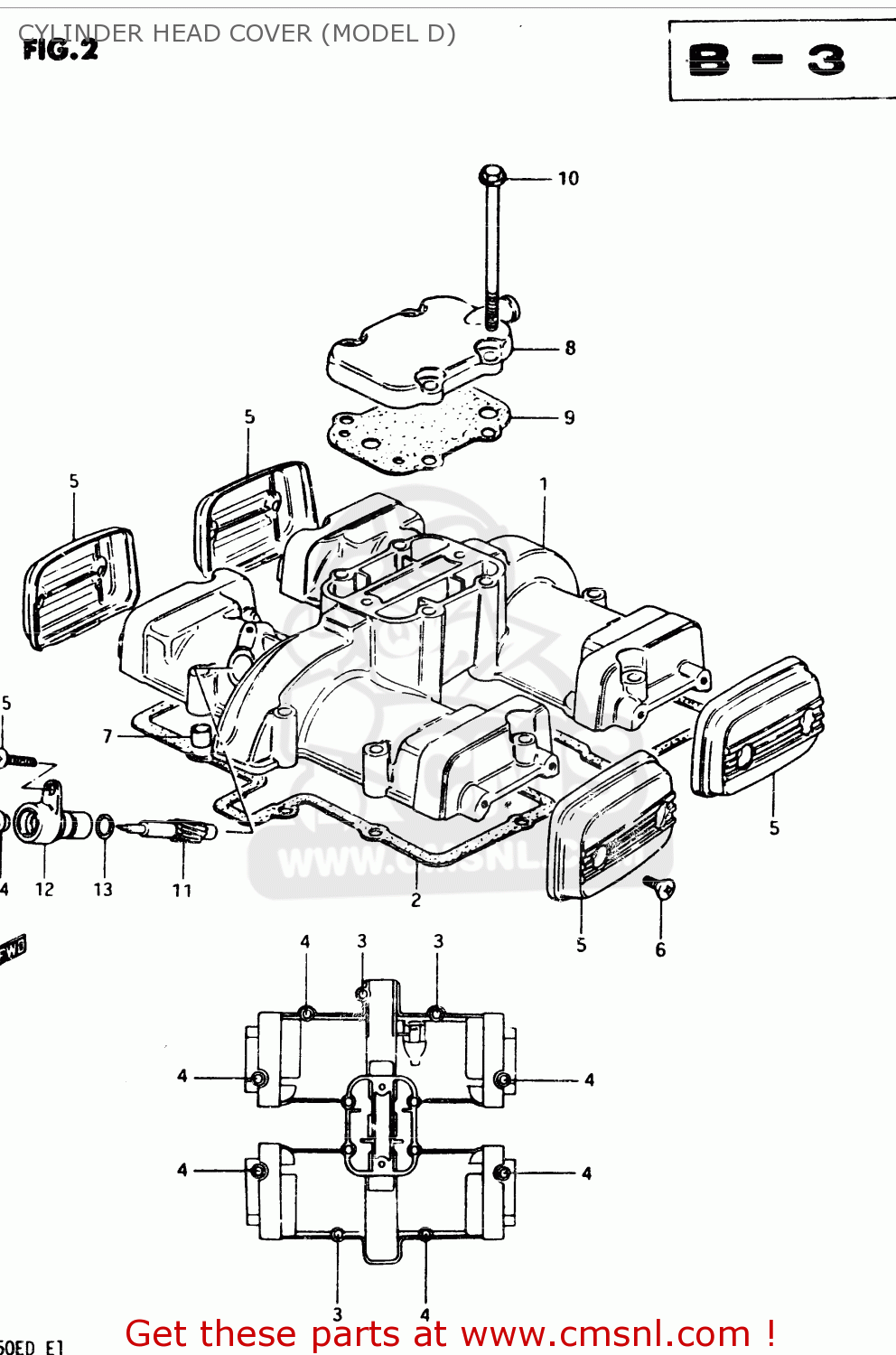

Cylinder head cover (model d) диаграмма GSX250E 1983 (D) GENERAL EXPORT (E01)

CYLINDER HEAD COVER (MODEL D) GSX250E 1983 (D) GENERAL EXPORT (E01)
CYLINDER HEAD COVER (MODEL D) GSX250E 1983 (D) GENERAL EXPORT (E01)
цены в EUR
ссылка
часть #
описание
количество
1
1117111450
ссылка: 1
COVER,CYLINDER HEAD
€ 152.50
2
1117311430
ссылка: 2
GASKET,CYLINDER HEAD COVER (MCA)
1117311430
€ 22.50
3
0151706405
ссылка: 3
BOLT (6X40)
€ 2.00
4
0151706355
ссылка: 4
BOLT
€ 2.50
5
1117449221
ссылка: 5
CAP,CYLINDER HEAD COVER
1117449221
€ 20.50
6
0912705015
ссылка: 6
SCREW(5X12)
0912705015
€ 2.00
7
0920608001
ссылка: 7
PIN(6.2X8X11)
0920608001
€ 1.50
8
1117611420
ссылка: 8
COVER,BREATHER
1117611420
€ 17.00
9
1117711400
ссылка: 9
GASKET,BREATHER COVER (MCA)
1117711400
€ 5.00
10
0151706755
ссылка: 10
BOLT (6X75)
€ 2.50
11
2643147002
ссылка: 11
GEAR,TACHOMETER DRIVEN
2643147002
€ 27.50
12
2644149000
ссылка: 12
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 19.00
13
2645145000A
ссылка: 13
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
14
0928905002
ссылка: 14
SEAL,OIL(5X12X8)
0928905002
€ 9.00
15
0912805101
ссылка: 15
SCREW(5X12)
0912805101
€ 1.50
