STARTING MOTOR

GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

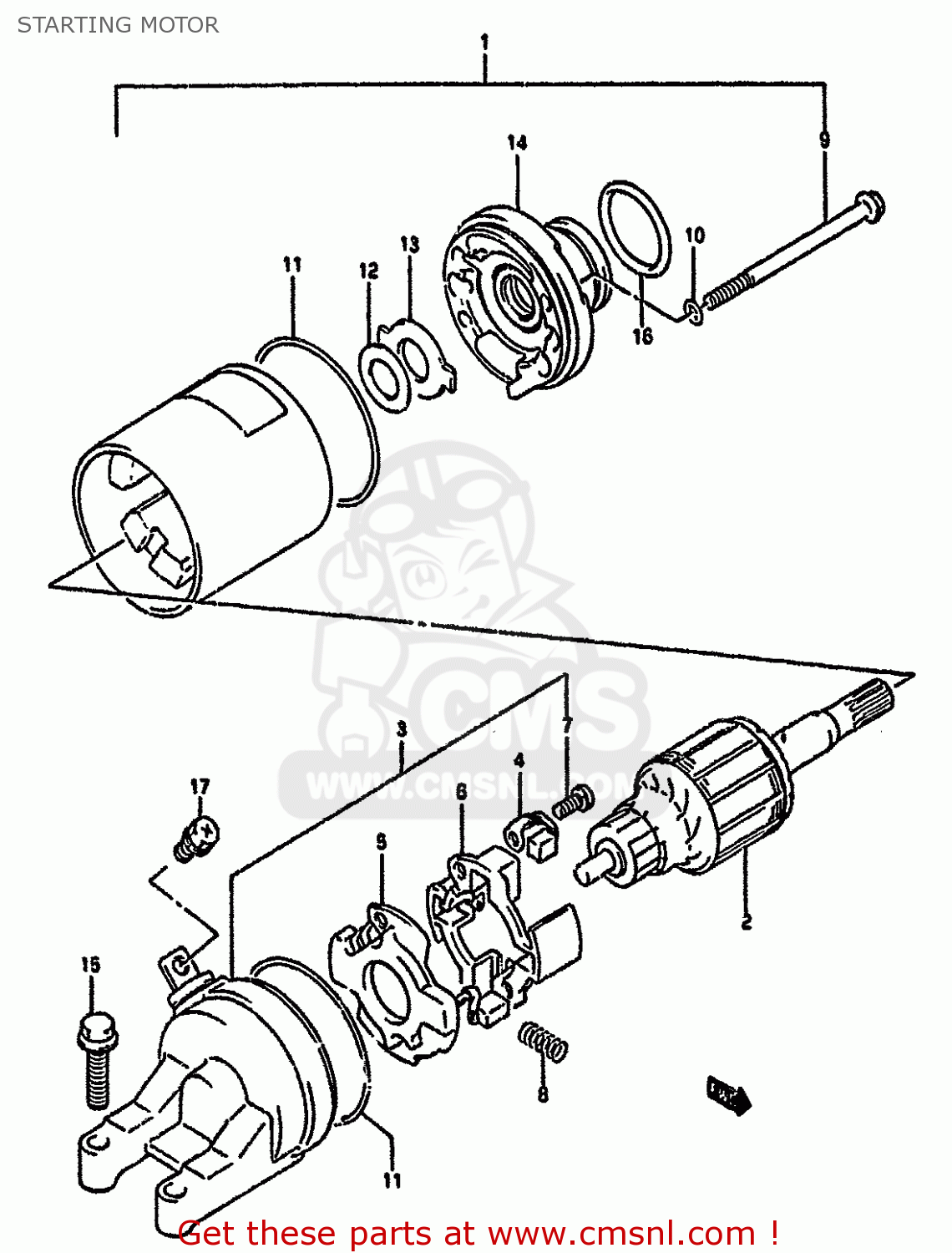

Starting motor Schemat GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

ceny są w EUR

Ref

Część #

opis

Ilość

3110010D00
Ref: 1

MOTOR ASSEMBLY,STARTING

€ 929.00

3131032C10
Ref: 2

ARMATURE

€ 266.00

3117532C10
Ref: 3

FRAME ASSEMBLY,COMMUTATOR

€ 87.50

3113232C10
Ref: 4

BRUSH

€ 13.00

3113032C10
Ref: 5

BRUSH SUB ASSEMBLY

€ 26.00

3113332C10
Ref: 6

HOLDER,BRUSH

€ 8.50

3113432C10
Ref: 7

SCREW

€ 2.00

3113532C10
Ref: 8

SPRING

€ 3.50

3128132C10
Ref: 9

BOLT

€ 8.00

3115638300
Ref: 10

O RING

€ 3.00

3126432C10
Ref: 11

O RING

€ 8.50

3136138300
Ref: 12

SHIM

€ 1.50

3136132C10
Ref: 13

PLATE,LOCK

€ 2.50

3115032C10
Ref: 14

BRACKET

€ 105.50

0910306066
Ref: 15

BOLT(6X23)

€ 2.00

0928024003
Ref: 16

O RING(D:3,ID:24.5)

€ 1.50

0913705004
Ref: 17

SCREW(5X8)

€ 2.00
