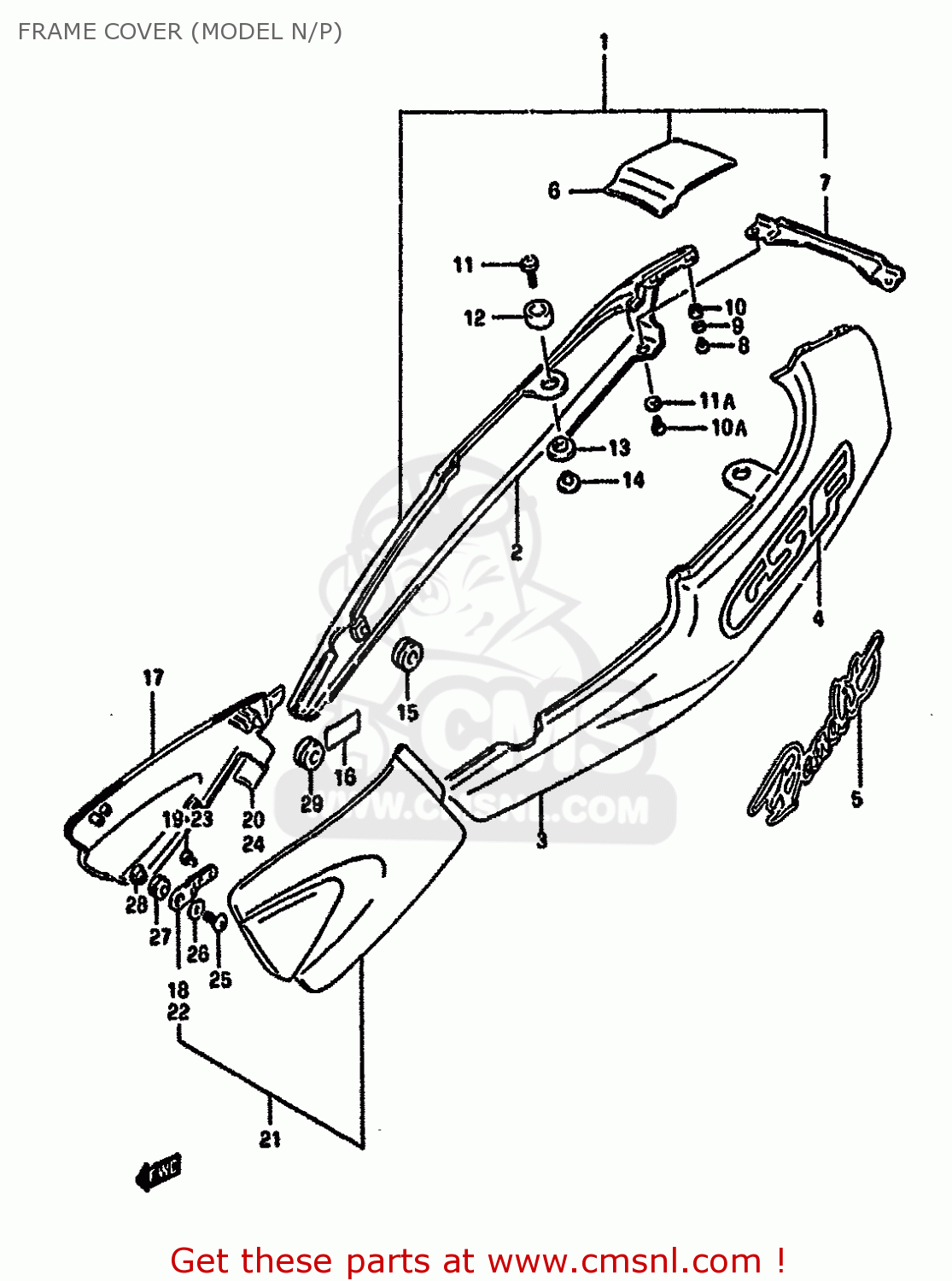

FRAME COVER (MODEL N/P)

Ref

Część #

opis

Ilość

1-1

4710010D20019
Ref: 1-1

COVER ASSY,FRAME (BLACK)

€ 203.00

1-2

4710010D2007P
Ref: 1-2
MODEL N

COVER ASSY,FRAME (RED)

€ 203.00

1-3

4710010D201TY
Ref: 1-3
MODEL P

COVER ASSY,FRAME (RED)

€ 203.00

1-4

4710010D200WP
Ref: 1-4

COVER ASSY,FRAME (GREEN)

€ 203.00

1-5

4710011D00019
Ref: 1-5
E4,E16,E21,E22,E25,E

COVER ASSY,FRAME(BLACK)

€ 305.00

1-6

4710011D0007P
Ref: 1-6
MODEL N E4,E16,E21,E

COVER ASSY,FRAME(RED)

€ 273.00

1-7

4710011D001TY
Ref: 1-7
MODEL P E4,E16,E21,E

COVER ASSEMBLY,FRAME,RIGHT

€ 203.00

1-8

4710011D000WP
Ref: 1-8
E4,E16,E21,E22,E25,E

COVER ASSEMBLY,FRAME,RIGHT

€ 203.00

2-1

4711110D00019
Ref: 2-1

COVER,FRAME,RIGHT (BLACK)

€ 157.00

2-2

4711110D0007P
Ref: 2-2
MODEL N

COVER,FRAME,R(RED)

€ 127.00

2-3

4711110D001TY
Ref: 2-3
MODEL P

COVER,FRAME,R(RED)

€ 145.50

2-4

4711110D000WP
Ref: 2-4

COVER,FRAME,R(GREEN)

€ 145.50

3-1

4721110D00019
Ref: 3-1

COVER,FRAME,L(BLACK)

€ 123.00

3-2

4721110D0007P
Ref: 3-2
MODEL N

COVER,FRAME,LEFT (RED)

€ 137.50

3-3

4721110D001TY
Ref: 3-3
MODEL P

COVER,FRAME,L(RED)

€ 145.50

3-4

4721110D000WP
Ref: 3-4

COVER,FRAME,L(GREEN)

€ 167.50

4-1

6813110D101AF
Ref: 4-1
FOR 019

EMBLEM

€ 14.50

4-2

6813110D101AG
Ref: 4-2
MODEL N FOR 07P

EMBLEM

€ 14.50

4-3

6813110D10B3H
Ref: 4-3
MODEL P FOR 1TY

EMBLEM

€ 14.50

4-4

6813110D10N39
Ref: 4-4
FOR 0WP

EMBLEM,FRAME COVER

€ 0.00

5-1

6813111D003UJ
Ref: 5-1
E4,E16,E21,E22,E25,E

EMBLEM,FRAME COVER

€ 13.00

5-2

6813111D003WP
Ref: 5-2
E4,E16,E21,E22,E25,E

EMBLEM,FRAME COVER

€ 17.50

5-3

6813111D00B3J
Ref: 5-3
E4,E16,E21,E22,E25,E

EMBLEM,FRAME COVER

€ 18.50

5-4

6813111D00N39
Ref: 5-4
E4,E16,E21,E22,E25,E

EMBLEM,FRAME COVER

€ 18.50

6-1

4731110D00019
Ref: 6-1

COVER,FRAME RR

€ 31.50

6-2

4731110D0007P
Ref: 6-2
MODEL N

COVER,FRAME,REAR (RED)

€ 25.50

6-3

4731110D001TY
Ref: 6-3
MODEL P

COVER,FRAME RR

€ 31.50

6-4

4731110D000WP
Ref: 6-4

COVER,FRAME RR

€ 33.50

7-1

4741110D00019
Ref: 7-1

COVER,FRAME,REAR,LOWER

€ 18.50

7-2

4741110D0007P
Ref: 7-2
MODEL N

COVER,FRAME RR LWR

€ 26.50

7-3

4741110D001TY
Ref: 7-3
MODEL P

COVER,FRAME RR UNDER

€ 18.50

7-4

4741110D000WP
Ref: 7-4

COVER,FRAME,REAR,UNDER

€ 25.50

8

0354104086
Ref: 8

SCREW

€ 2.00

9

0832221046
Ref: 9

WASHER

€ 1.50

10

4731510D00
Ref: 10

SPACER,RR COVER

€ 3.50

10A

0916906064
Ref: 10A

WASHER

€ 4.50

11

0913606082
Ref: 11

SCREW(6X25)

€ 3.00

11A

0913905047
Ref: 11A

SCREW (5X20)

€ 1.50

12

4514904A00
Ref: 12

CUSHION,TAIL COVER UPR

€ 3.00

13

4532604A00
Ref: 13

CUSHION,TAIL COVER LWR

€ 3.00

14

4553704A00
Ref: 14

SPACER,SEAT TAIL COVER

€ 2.00

15

0932008018
Ref: 15

CUSHION

€ 4.00

16

4716110D00
Ref: 16

PROTECTOR,FRAME COVER

€ 4.00

17-1

4751010D0287N
Ref: 17-1
FOR 019

COVER COMP,AIR CLEANER,RIGHT

€ 102.00

17-2

4751010D0294F
Ref: 17-2
MODEL N FOR 07P

COVER COMP,AIR CLEANER,RIGHT

€ 102.00

17-3

4751010D02A6K
Ref: 17-3
MODEL P FOR 1TY

COVER COMP,AIR CLEANER,RIGHT

€ 102.00

17-4

4751010D02J74
Ref: 17-4
FOR 0WP

COVER COMP,AIR CLEANER,RIGHT

€ 128.50

18

4751310D00
Ref: 18

PLATE,AIR CLEANER COVER

€ 6.00

19

0354104085
Ref: 19

SCREW

€ 2.00

20

4751210D00
Ref: 20

CUSHION

€ 2.00

21-1

4761010D0287N
Ref: 21-1
FOR 019

COVER,AIR CLEANER,L

€ 92.00

21-2

4761010D0294F
Ref: 21-2
MODEL N FOR 07P

COVER COMP,AIR CLEANER,LEFT

€ 91.50

21-3

4761010D02A6K
Ref: 21-3
MODEL P FOR 1TY

COVER COMP,AIR CLEANER,LEFT

€ 111.00

21-4

4761010D02J74
Ref: 21-4
FOR 0WP

COVER,AIR CLEANER,L

€ 97.50

22

4751310D00
Ref: 22

PLATE,AIR CLEANER COVER

€ 6.00

23

0354104085
Ref: 23

SCREW

€ 2.00

24

4751210D00
Ref: 24

CUSHION

€ 2.00

25

0913906063
Ref: 25

SCREW(6X20)

€ 4.00

26

0916006056
Ref: 26

WASHER(6.5X18X1)

€ 1.50

27

0932008051
Ref: 27

CUSHION

€ 6.00

28

0916906063
Ref: 28

WASHER

€ 2.50

29

0932008018
Ref: 29

CUSHION

€ 4.00
