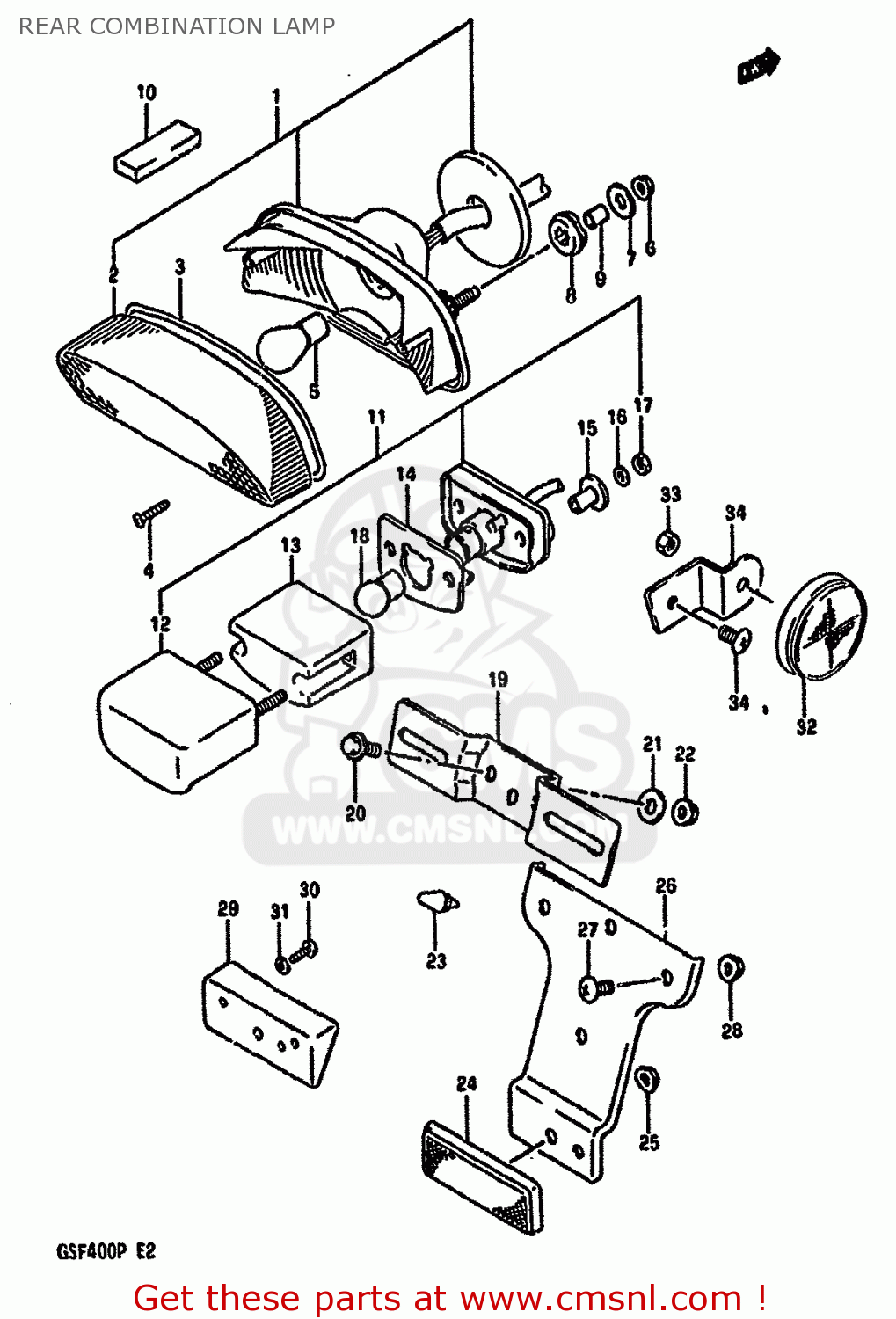

REAR COMBINATION LAMP

GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

Rear combination lamp Schemat GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

REAR COMBINATION LAMP GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
REAR COMBINATION LAMP GSF400 1992 (N) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
ceny są w EUR
Ref
Część #
opis
Ilość
1-1
3571045C00
Ref: 1-1
LAMP ASSY,RR COMBINATION
3571045C00
€ 85.00
1-2
3571045C10
Ref: 1-2
E30
LAMP ASSEMBLY,REAR COMBINATION
3571045C10
€ 64.00
2
3571238B30
Ref: 2
LENS
3571238B30
€ 30.50
3
3571338B30
Ref: 3
GASKET (NAS)
3571338B30
€ 6.50
4
3572338B30
Ref: 4
SCREW
€ 1.50
5
0947112083
Ref: 5
BULB(12V21/5W)
0947112083
€ 5.50
6
0831626066
Ref: 6
NUT
€ 2.50
7
0916006060
Ref: 7
WASHER
0916006060
€ 1.50
8
0932009009
Ref: 8
CUSHION
0932009009
€ 3.50
9
0918006152
Ref: 9
SPACER
0918006152
€ 3.00
10
3573310D00
Ref: 10
CUSHION,REAR LENS
€ 3.00
11-1
3591024B20
Ref: 11-1
LAMP ASSY,LICENSE
€ 298.50
11-2
3591024B00999
Ref: 11-2
E30
LAMP ASSEMBLY,LICENSE
€ 142.50
12
3591738A20
Ref: 12
COVER,LICENSE LAMP
3591738A20
€ 121.50
13-1
3591238A20
Ref: 13-1
LENS
3591238A20
€ 13.50
13-2
3591238A30
Ref: 13-2
E30
LENS
3591238A30
€ 10.50
14
3591338A30
Ref: 14
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
15
3576624B30
Ref: 15
SPACER
3576624B30
€ 2.00
16
0832121047
Ref: 16
WASHER,LOCK 4M
0832121047
€ 1.50
17
0831011047
Ref: 17
NUT
0831011047
€ 1.50
18-1
0947112140
Ref: 18-1
BULB(12V5W,BF150-40160A)
€ 4.00
18-2
0947112058
Ref: 18-2
E30
BULB
0947112058
€ 4.00
19-1
3592717C00
Ref: 19-1
BRACKET,LICENSE PLATE
3592717C00
€ 9.50
19-2
3592700A10
Ref: 19-2
E30
BRACKET,LICENSE PLATE
3592700A10
€ 8.00
20
0151706164
Ref: 20
BOLT
€ 2.50
21
0916006059
Ref: 21
WASHER,COVER,FRONT
€ 1.50
22
0831626066
Ref: 22
NUT
€ 2.50
23-1
0932106031
Ref: 23-1
CUSHION
0932106031
€ 4.00
23-2
0932105005
Ref: 23-2
E30
CUSHION
0932105005
€ 7.00
24
3597000A21
Ref: 24
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 20.50
25
0831626058
Ref: 25
NUT 5MM
€ 2.50
26
3597410D10
Ref: 26
BRACKET,REAR REFLECTOR
3597410D10
€ 7.00
27
0214206125
Ref: 27
SCREW 6X12
0214206125
€ 1.50
28
0831626065
Ref: 28
NUT
0831626065
€ 2.50
29
3597712C00
Ref: 29
E16,E22,E25
SPACER,RR RR
3597712C00
€ 7.50
30
0354104126
Ref: 30
E16,E22,E25
SCREW
0354104126
€ 1.50
31
0832221046
Ref: 31
WASHER
€ 1.50
32
3597014A10
Ref: 32
E30
REFLEX REFLECTOR,RR
3597014A10
€ 12.50
33
0836115055
Ref: 33
E30
NUT
€ 2.50
34-1
3597510D00
Ref: 34-1
E30
BRACKET,REAR SIDE REFLECTOR
€ 0.00
34-2
3597610D00
Ref: 34-2
E30
BRACKET,REAR SIDE REFLECTOR
€ 0.00
35
0214206104
Ref: 35
E30
SCREW
0214206104
€ 1.50
