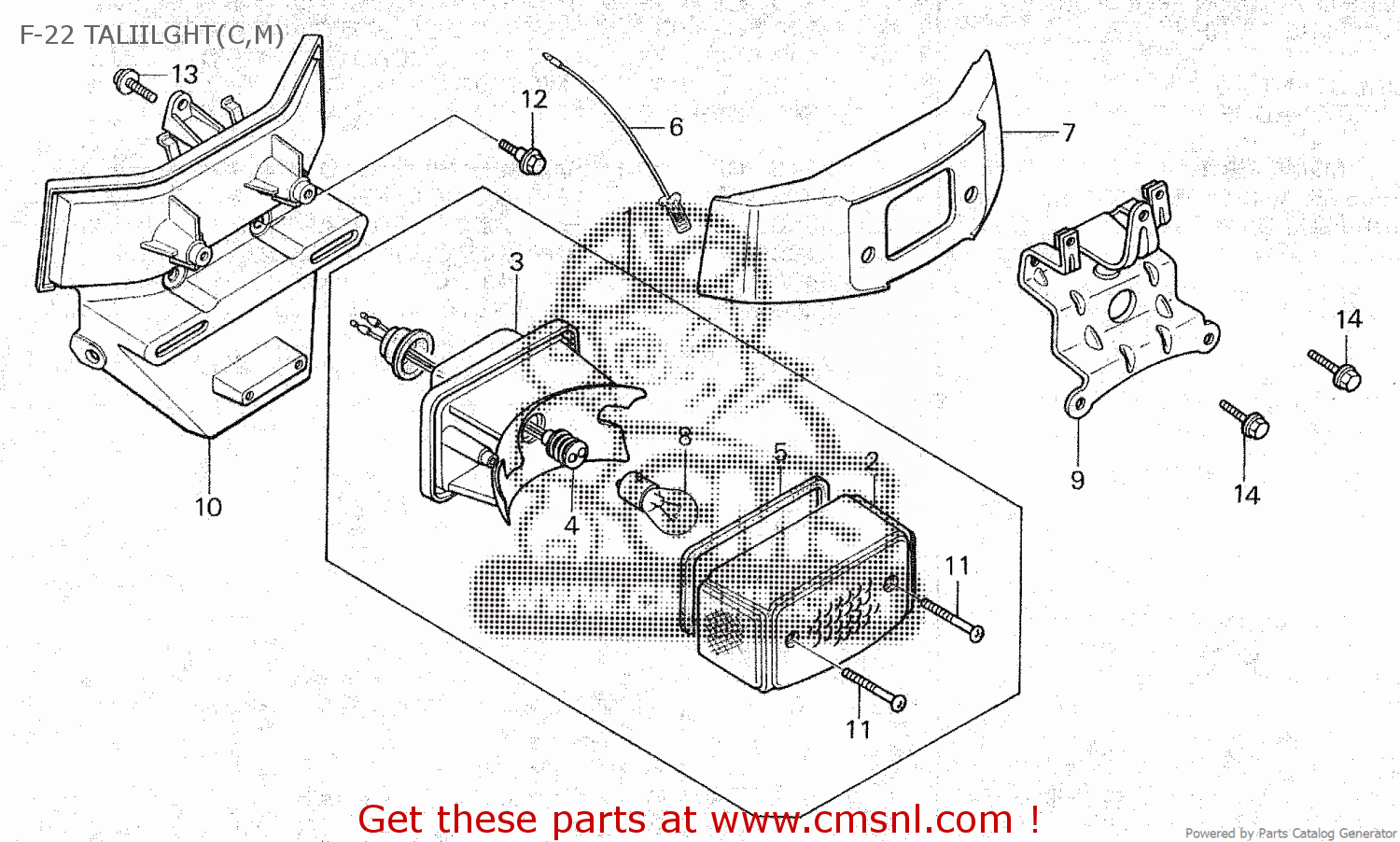

F-22 TALIILGHT(C,M)

NB50M 1984 (E)

F-22 taliilght(c,m) Schemat NB50M 1984 (E)

ceny są w EUR

Ref

Część #

opis

Ilość

33701MC4671
Ref: 1
CM

TAILLIGHT UNIT

€ 85.50

33702MC4671
Ref: 2
CM

LENS,TAIL LIGHT

€ 37.00

33703MC4671
Ref: 3
CM

SOCKET,TAIL LIGHT

€ 54.00

33708147003
Ref: 4
CM

CORD,TAIL LIGHT

€ 7.00

33709KB7003
Ref: 5
CM

PKG,TAILLIGHT LEN

€ 4.50

33711GE8671
Ref: 6
CM

WIRE, GROUND

€ 6.00

33720GE8671ZD
Ref: 7
CM

COVER *PB109*

€ 14.50

33720GE8671ZE
Ref: 7
CM

COVER, TAILLIGHT *YR-26*

€ 0.00

34906341671
Ref: 8
CM

BULB,TAIL LIGHT

€ 6.50

50358GE8000
Ref: 9
CM

STAY,TAILLIGHT

€ 20.00

84710GE8671
Ref: 10
CM

BRKT,NO

€ 69.50

90105GA7003
Ref: 11
CM

SCREW,TAP 4X40

€ 2.50

90111162000
Ref: 12
CM

BOLT,FLANGE,6MM

€ 3.00

938910502000
Ref: 13
CM

BOLT WASHER 5X20

€ 1.50

957000601200
Ref: 14
CM

BOLT, FLANGE,6X12

€ 1.00
