E-7 DRIVEN FACE

NB50M 1984 (E)

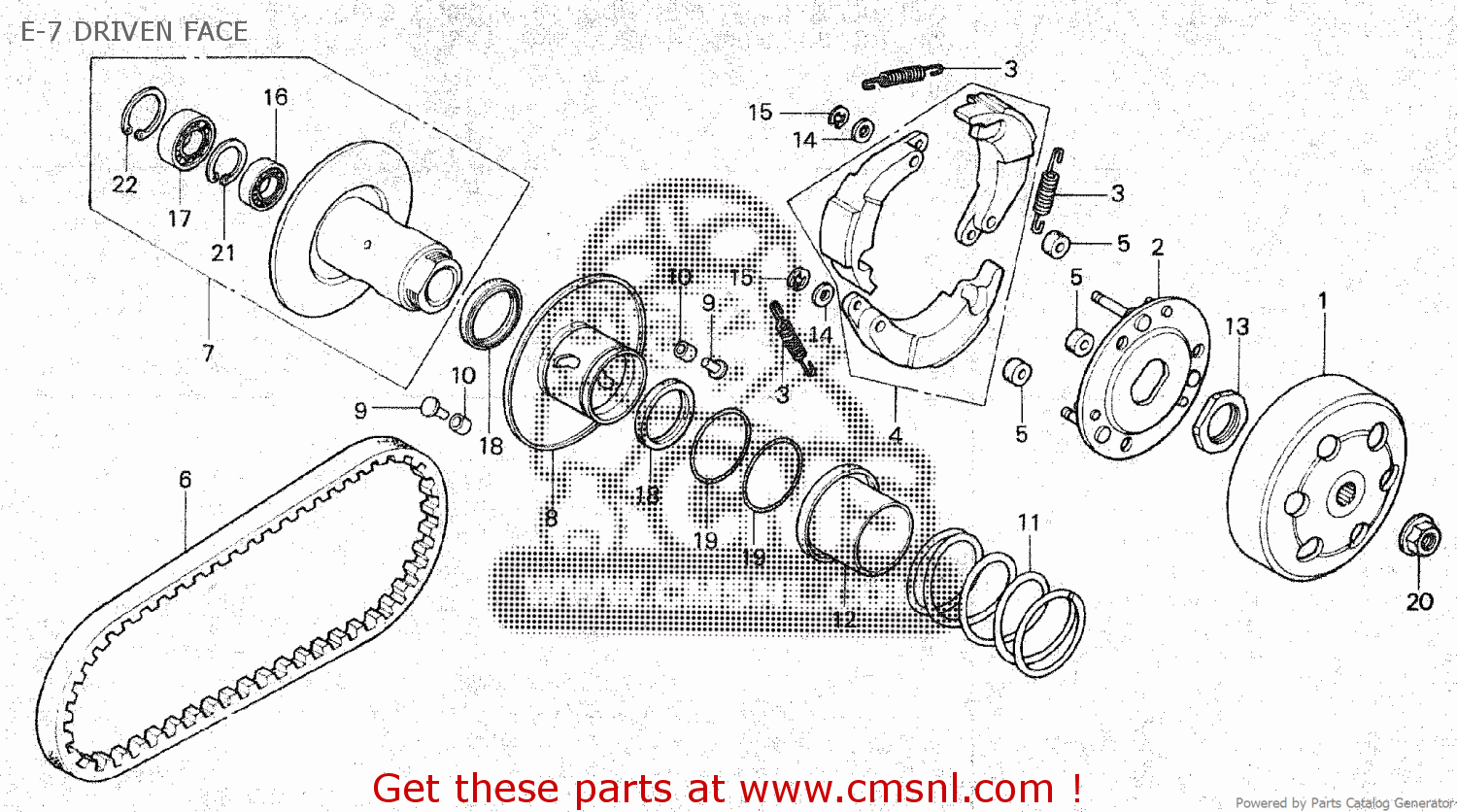

E-7 driven face Schemat NB50M 1984 (E)

E-7 DRIVEN FACE NB50M 1984 (E)
E-7 DRIVEN FACE NB50M 1984 (E)
ceny są w EUR
Ref
Część #
opis
Ilość
1
22100GE8000
Ref: 1
CLUTCH OUTER COMP
22100GE8000
€ 61.00
2
22350GE8000
Ref: 2
PLATE COMP,DRIVE
22350GE8000
€ 34.00
3
22401GE8000
Ref: 3
SPRING,CLUTCH
22401GE8000
€ 3.00
4
22535GE8000
Ref: 4
WEIGHT SET,CLUTCH
22535GE8000
€ 71.50
5
22804148000
Ref: 5
RUBBER,CLUTCH DPR
22804148000
€ 2.00
6
23100GE8004
Ref: 6
BELT,DRIVE
23100GE8004
€ 28.00
7
23200GE8000
Ref: 7
FACE ASSY.,DRIVEN
23200GE8000
€ 84.50
8
23220GE8000
Ref: 8
FACE,MOVABLE DRIV
23220GE8000
€ 26.50
9
23225187003
Ref: 9
PIN,ROLLER GUIDE
23225187003
€ 2.00
10
23226187003
Ref: 10
ROLLER,GUIDE
23226187003
€ 2.50
11
23233GE8000
Ref: 11
SPG.,DRIVEN FACE
23233GE8000
€ 10.50
12
23237GA7700
Ref: 12
COLLAR,SEAL
23237GA7700
€ 7.50
13
90202GA7700
Ref: 13
NUT SPECIAL 28MM
90202GA7700
€ 5.50
14
90442GE8000
Ref: 14
WASHER,THRUST,8MM
€ 2.00
15
90605166720
Ref: 15
CIR CLIP,7MM
90605166720
€ 2.00
16
91001GA7701
Ref: 16
B/BRG,RAD,N/COM
91001GA7701
€ 11.00
17
91002GA7701
Ref: 17
B/BRG,RAD,N/COM
91002GA7701
€ 17.50
17
91002GA7702
Ref: 17
B/BRG RAD N/COM
91002GA7702
€ 17.50
18
91211187003
Ref: 18
SEAL,DRIVEN FACE
91211187003
€ 2.00
19
91351642000
Ref: 19
O RING PINION CAP
91351642000
€ 4.00
21
9452024000
Ref: 21
CIRCLIP,IN,24
9452024000
€ 1.00
22
9452028000
Ref: 22
CIRCLIP IN 28MM
9452028000
€ 2.50
