F-12 FUEL TANK

NB50M 1984 (E)

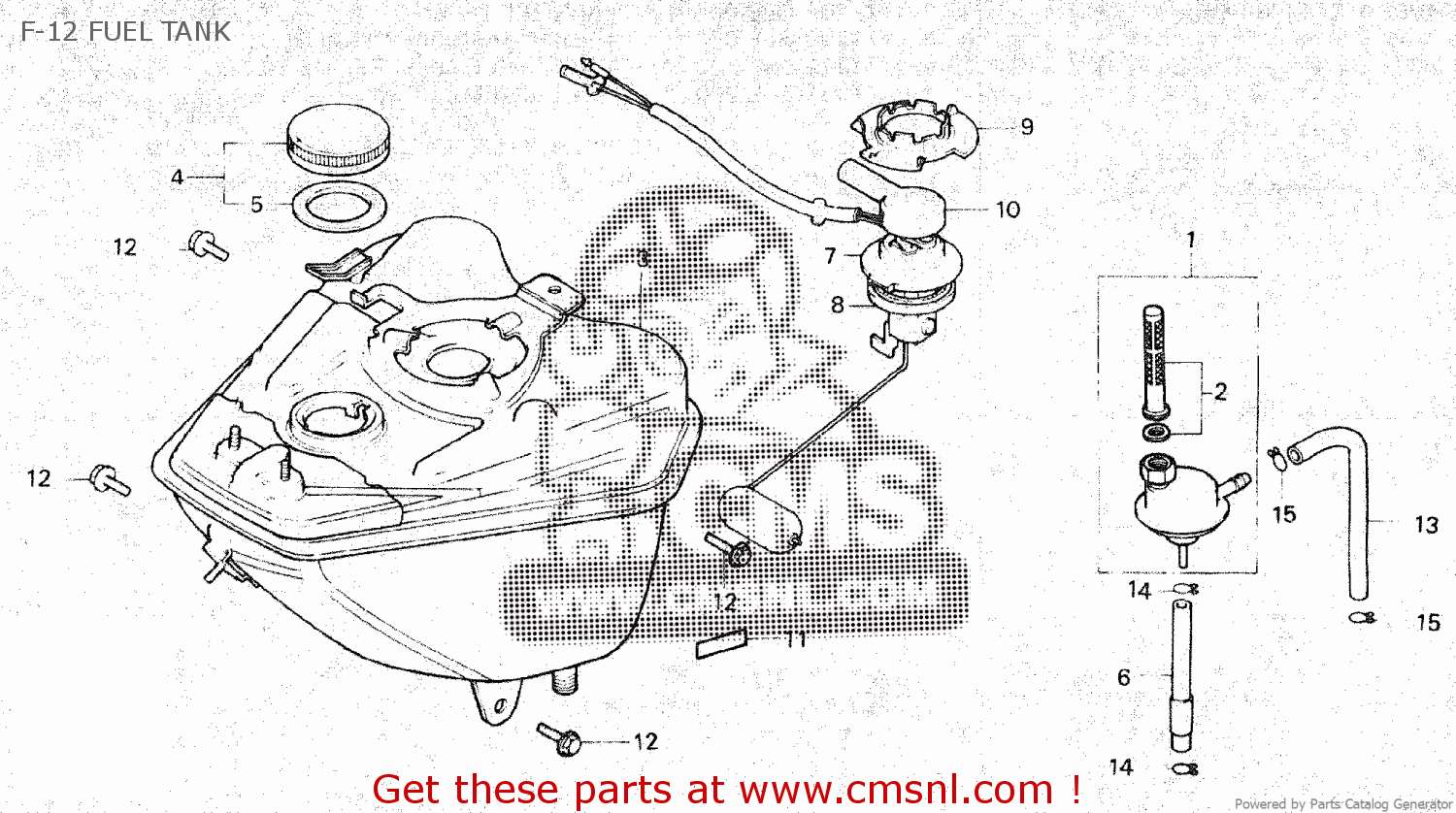

F-12 fuel tank Schemat NB50M 1984 (E)

F-12 FUEL TANK NB50M 1984 (E)
F-12 FUEL TANK NB50M 1984 (E)
ceny są w EUR
Ref
Część #
opis
Ilość
1
16950GA7701
Ref: 1
DK,E,F,G
COCK,FUEL AUTO
16950GA7701
€ 48.50
1
16950187671
Ref: 1
CM
AUTO COCK,FUEL
16950187671
€ 49.50
2
16952187005
Ref: 2
DK,E,F,G
SCREEN,FUEL STRN.
16952187005
€ 34.00
2
16952187671
Ref: 2
CM
SCREEN SET,F/STR
€ 17.00
3
17500GE8000
Ref: 3
TANK COMP.,FUEL
€ 118.50
4
17620GE7003
Ref: 4
CM
CAP FUEL FILLER
€ 31.00
4
17620GE7013
Ref: 4
DK,E,F,G
CAP FUEL FILLER
17620GE7013
€ 31.00
5
17631096700
Ref: 5
PACKING,CAP
17631096700
€ 3.50
6
17681GE8000
Ref: 6
TUBE,FUEL,3.5X125
€ 3.50
7
37800GE8000
Ref: 7
FUEL UNIT
37800GE8000
€ 51.00
8
37801GA7700
Ref: 8
PACKING,BASE
37801GA7700
€ 4.50
9
37802GA7700
Ref: 9
RET,FUEL UNIT
37802GA7700
€ 4.50
10
37805KG8000
Ref: 10
COV,FUEL UNIT
37805KG8000
€ 6.00
11
87512147670ZB
Ref: 11
DK,E,G
LABEL,FUEL*N*NH0*
87512147670ZB
€ 3.00
11
87512147720
Ref: 11
CM,F
LABEL,FUEL
€ 3.50
12
90111GA7000
Ref: 12
BOLT,FLANGE,6X14
90111GA7000
€ 2.00
13
950014514040
Ref: 13
TUBE,FUEL 4.5X140
€ 6.00
14
9500202070
Ref: 14
CLIP B7,TUBE
9500202070
€ 1.00
