WINKER (VT1100CV/CW/C2)

VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

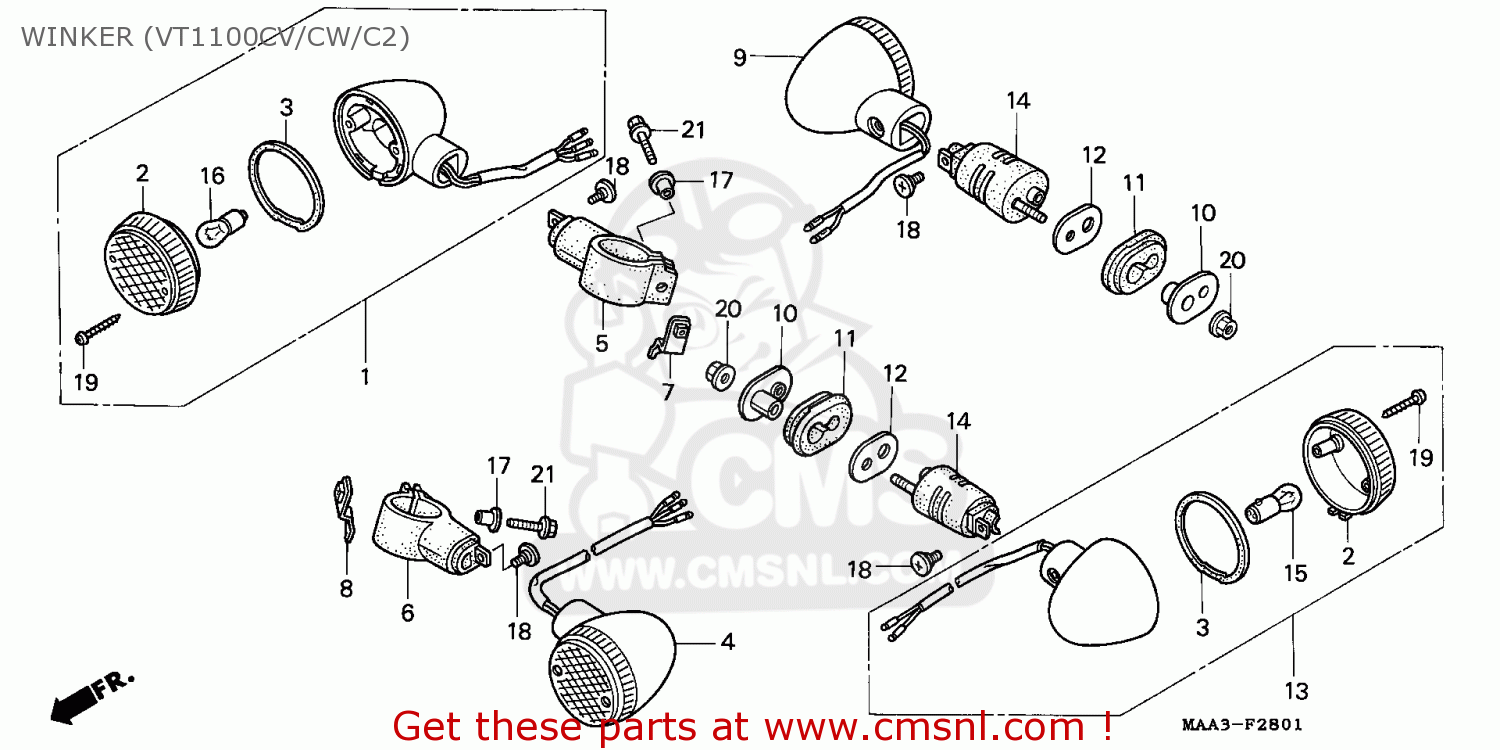

Winker (vt1100cv/cw/c2) Schemat VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

WINKER (VT1100CV/CW/C2) VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
WINKER (VT1100CV/CW/C2) VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
ceny są w EUR
Ref
Część #
opis
Ilość
1
33400MAH671
Ref: 1
WINKER ASSY,R FR
33400MAH671
€ 26.50
2
33401MK7672
Ref: 2
LENS FR.WINKER
33401MK7672
€ 15.00
3
33407MK7671
Ref: 3
LENS,PACKING WINK
33407MK7671
€ 3.50
4
33450MAH671
Ref: 4
WINKER ASSY,L FR
33450MAH671
€ 39.50
5
33490MN0003
Ref: 5
STAY,R.FR.WINKER
33490MN0003
€ 34.50
6
33491MN0003
Ref: 6
STAY,L.FR.WINKER
33491MN0003
€ 40.50
7
33495MAH000
Ref: 7
STOPPER R,FR WINK
33495MAH000
€ 6.50
8
33496MAH000
Ref: 8
STOPPER L,FR WINK
33496MAH000
€ 6.50
9
33600MAH671
Ref: 9
WINKER ASSY,R RR
33600MAH671
€ 60.00
10
33602MM8770
Ref: 10
WASHER,WINKER MOU
33602MM8770
€ 7.00
11
33603MM8000
Ref: 11
RUBBER,RR.WINKER
33603MM8000
€ 6.50
12
33604MAH000
Ref: 12
WASHER,RR WINKER
33604MAH000
€ 2.50
13
33650MAH671
Ref: 13
WINKER ASSY,L RR
33650MAH671
€ 63.00
14
33690MZ5000
Ref: 14
STAY COMP,RR WINK
33690MZ5000
€ 35.50
15
34905268671
Ref: 15
BULB, WINKER
34905268671
€ 4.00
16
34905425671
Ref: 16
BULB,WINKER
34905425671
€ 4.00
17
84702KV0670
Ref: 17
COLLAR,NUMBER PLA
84702KV0670
€ 7.50
18
90380MZ5000
Ref: 18
SCREW,SPECIAL 6X8
90380MZ5000
€ 3.00
19
9390134610
Ref: 19
SCREW,TAP 4X25
9390134610
€ 1.00
21
960010602807
Ref: 21
BOLT,FLANGE,6X28
960010602807
€ 1.50
