TRANSMISSION

VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

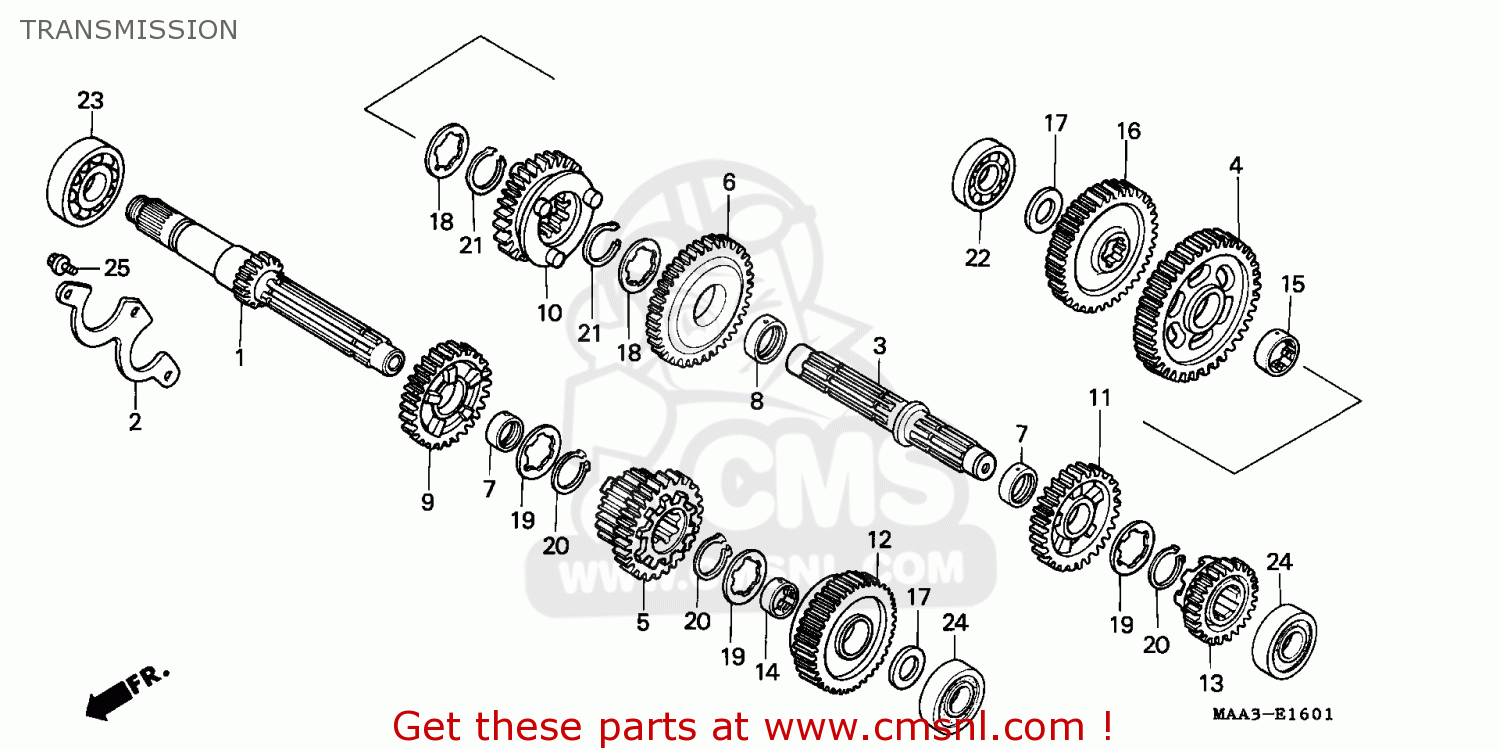

Transmission Schemat VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

TRANSMISSION VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
TRANSMISSION VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
ceny są w EUR
Ref
Część #
opis
Ilość
1
23211MAH000
Ref: 1
SHAFT,MAIN
€ 210.50
2
23212MK7670
Ref: 2
PLATE,BEARING
€ 10.00
3
23220MAA610
Ref: 3
SHAFT COMP,COUNTE
€ 157.00
4
23421MAA610
Ref: 4
GEAR,C-1
€ 171.50
5
23431MAA610
Ref: 5
GEAR,M-2 M-4
23431MAA610
€ 175.00
6
23441MAA610
Ref: 6
GEAR,C-2
€ 134.50
7
23442ML7000
Ref: 7
COLLAR 28MM
23442ML7000
€ 23.00
8
23442MS2610
Ref: 8
COLLAR,30X11.2
23442MS2610
€ 14.00
9
23451MAA610
Ref: 9
GEAR,M-3
23451MAA610
€ 158.50
10
23461MAA611
Ref: 10
GEAR,C-3
23461MAA611
€ 161.00
11
23481MAA610
Ref: 11
GEAR,C-4
€ 155.00
12
23491MAA610
Ref: 12
GEAR,M-5
€ 149.50
13
23501MAH000
Ref: 13
GEAR,C-5
€ 132.00
14
23512MM8000
Ref: 14
COLLAR,SPLINE 28X
€ 14.00
15
23514MM8000
Ref: 15
COLLAR,SPLINE 30X
23514MM8000
€ 14.50
16
23725MM8000
Ref: 16
GEAR,FINAL DRIVE
€ 126.50
17
90404KK0000
Ref: 17
WASHER,20X37X2
90404KK0000
€ 2.50
18
90451MG8000
Ref: 18
WASHER,THRUST 30M
€ 3.50
19
90451422000
Ref: 19
WASHER,THRUST,28
90451422000
€ 8.50
20
90601422000
Ref: 20
CIR CLIP,28MM
90601422000
€ 3.00
21
90604MG8000
Ref: 21
CIRCLIP,30MM
90604MG8000
€ 4.00
22
91003MG8003
Ref: 22
B/BRG RAD N/COM
91003MG8003
€ 21.00
23
91004MG8003
Ref: 23
B/BRG RAD N/COM
91004MG8003
€ 27.00
24
91005MG8003
Ref: 24
B/BRG RAD N/COM
91005MG8003
€ 20.50
25
957010601600
Ref: 25
BOLT,FLANG,6X16
957010601600
€ 1.00
