CARBURETOR ASSY.

VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

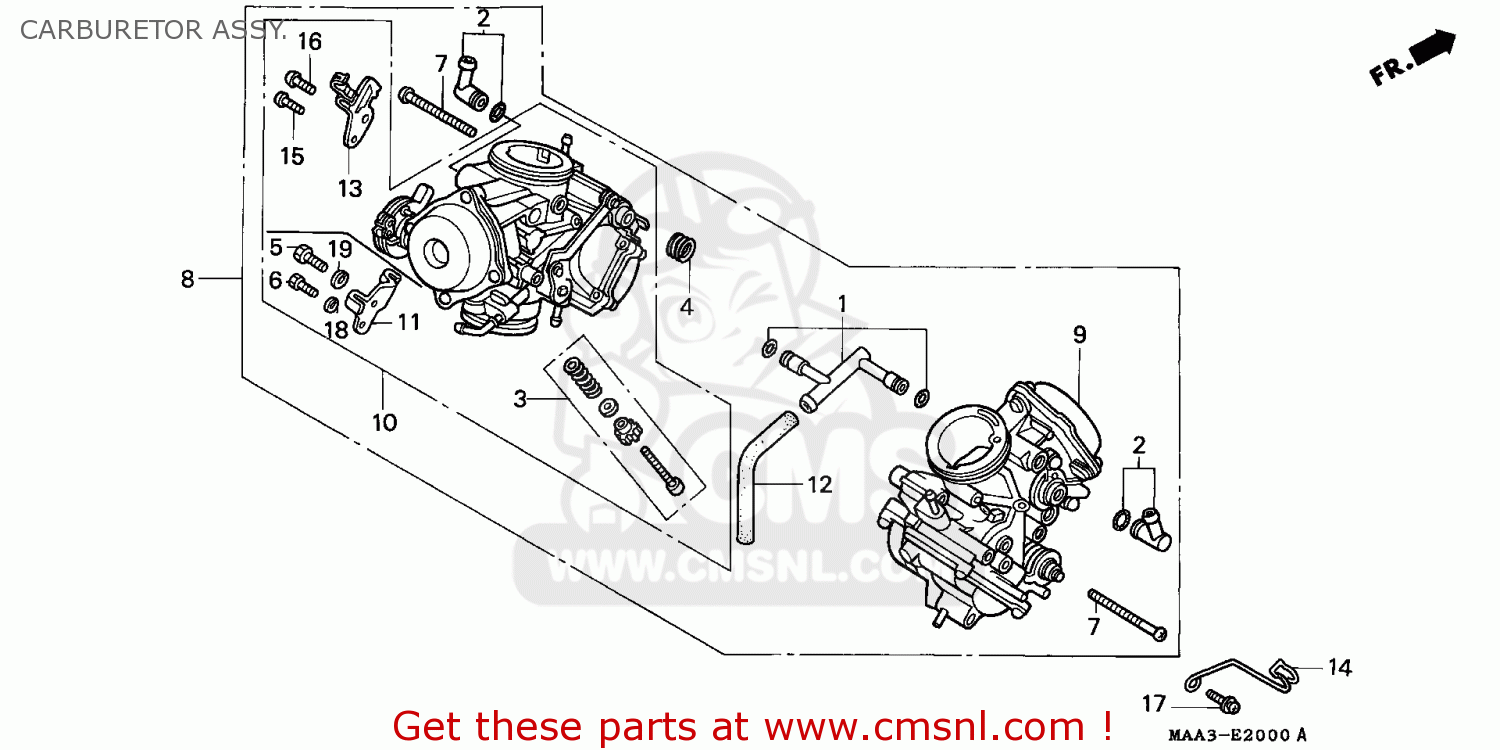

Carburetor assy. Schemat VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI

CARBURETOR ASSY. VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
CARBURETOR ASSY. VT1100C2 SHADOW 1998 (W) CANADA / RBM WHI
ceny są w EUR
Ref
Część #
opis
Ilość
1
16026MAH670
Ref: 1
JOINT SET
€ 31.00
3
16028MAH000
Ref: 3
SCREW SET
16028MAH000
€ 38.00
4
16053MG7601
Ref: 4
SPRING
16053MG7601
€ 3.50
5
16080ME9671
Ref: 5
SCREW,PAN
16080ME9671
€ 1.50
7
16082ME9671
Ref: 7
WASHER,SCREW
16082ME9671
€ 3.50
8
16100MAH750
Ref: 8
CARBURETOR ASSY
€ 1,168.00
9
16101MAH750
Ref: 9
CARBURETOR ASSY,F
€ 565.50
10
16102MAH750
Ref: 10
CARBURETOR ASSY,R
€ 565.50
12
16144MM8004
Ref: 12
TUBE
16144MM8004
€ 14.00
13
16169MM9621
Ref: 13
STAY COMP.,WIRE
16169MM9621
€ 13.50
14
30701MAH000
Ref: 14
CLAMP,H/T CODE
€ 8.00
15
938920400810
Ref: 15
SCREW-WASHER 4X8
€ 1.50
16
938920501210
Ref: 16
SCREW-WASHER,5X12
€ 1.00
17
938930501008
Ref: 17
SCREW-WASH.,5X10
938930501008
€ 1.50
