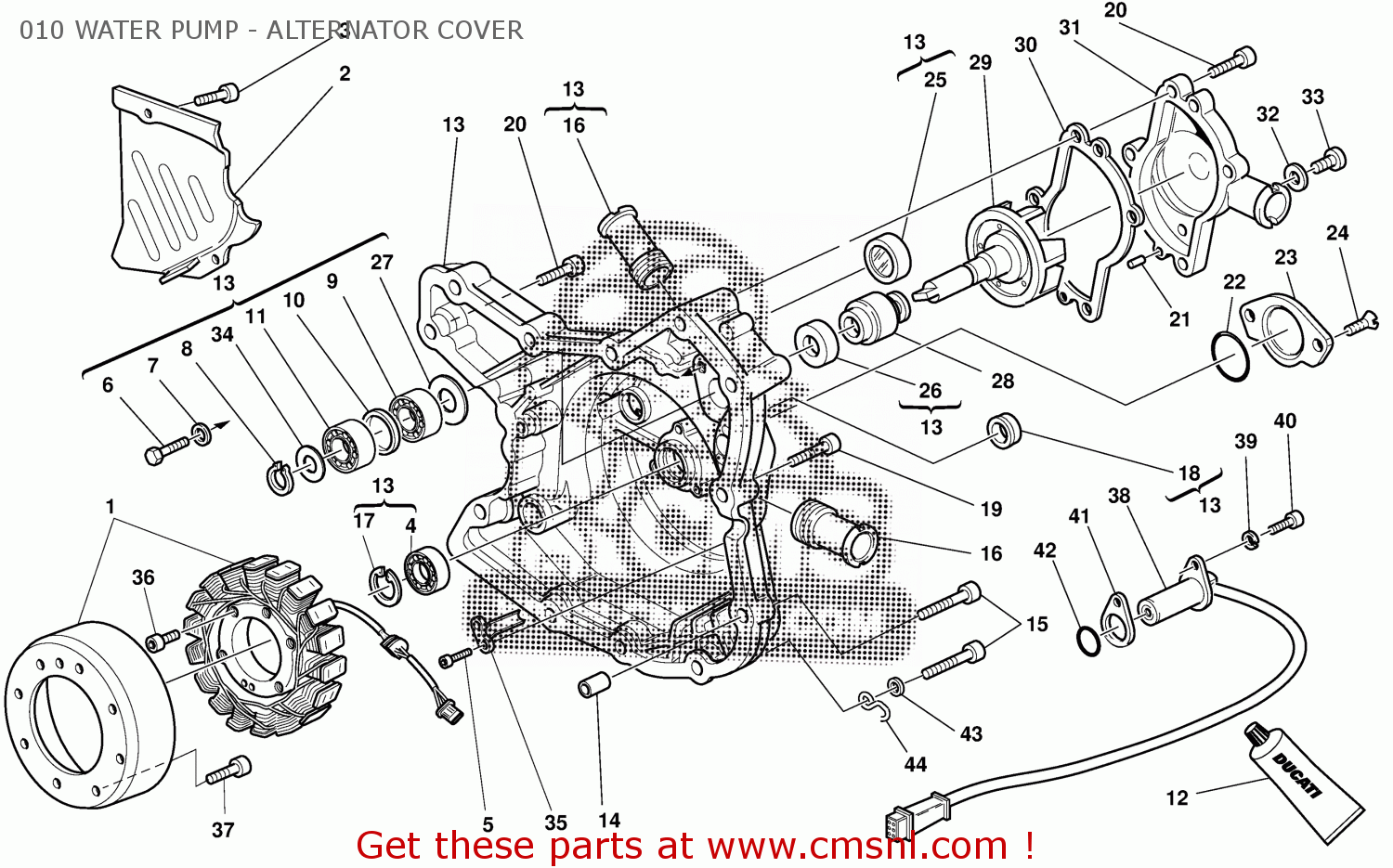

010 WATER PUMP - ALTERNATOR COVER - MS4 2001 EU (MONSTER S4) 9151-1171A

Ref

Część #

opis

Ilość

1

26440181A
Ref: 1

GENERATOR

€ 491.00

2

24710831AE
Ref: 2

CHAIN PINION COVER

€ 27.00

3

706205212
Ref: 3

SCREW M5X12

€ 1.00

4

70250081A
Ref: 4

BALL BEARING 6003 TN9 C3

€ 10.50

5

77150402B
Ref: 5

SCREW M5X14

€ 1.00

6

60N101079
Ref: 6

SCREW TE M6X1.00X16

€ 1.00

7

46230038A
Ref: 7

WASHER

€ 1.00

8

88450111A
Ref: 8

CIRCLIP

€ 4.00

9

70240101A
Ref: 9

BALL BEARING 6000

€ 7.50

10

71311181A
Ref: 10

SPACER

€ 9.00

11

70240091A
Ref: 11

BALL BEARING 6000

€ 7.00

12

942470014
Ref: 12

LIQUID GASKET

€ 16.50

13

24220381BB
Ref: 13

GENERATOR COVER

€ 673.00

14

040049240
Ref: 14

PIN DOWEL

€ 2.00

15

60N102511
Ref: 15

SCREW TCEI M6X1.00X30

€ 1.00

16

66810012A
Ref: 16

WATER PUMP DELIVERY PIPE UNION

€ 10.00

17

735033380
Ref: 17

CIRCLIP

€ 1.00

18

937831524
Ref: 18

OIL SEAL

€ 4.50

19

60N102510
Ref: 19

BOLT, SOCKET HEAD M6X25

€ 1.00

20

77150662B
Ref: 20

SCREW

€ 1.00

21

001152010
Ref: 21

PIN DOWEL

€ 1.00

22

88640351A
Ref: 22

O-RING

€ 4.50

23

24710021BC
Ref: 23

COVER

€ 33.00

24

77750492C
Ref: 24

SCREW

€ 1.00

25

25410011A
Ref: 25

LENS, IGNITION INSPECTION

€ 15.50

26

93050051A
Ref: 26

MECHANICAL SEAL

€ 10.50

27

71311281B
Ref: 27

SPACER

€ 4.00

28

93050062B
Ref: 28

MECHANICAL SEAL

€ 33.50

29

25120014B
Ref: 29

WATER PUMP ROTOR

€ 150.00

30

78810561A
Ref: 30

GASKET HOUSING COVER

€ 5.50

31

24711141AB
Ref: 31

WATER PUMP COVER

€ 114.00

32

42020010A
Ref: 32

COPPER GASKET 11.9X8.2X2

€ 1.00

33

78050011A
Ref: 33

PLUG

€ 2.00

34

85211141A
Ref: 34

WASHER 10X17X1.8

€ 9.50

35

83011441A
Ref: 35

BRACKET

€ 73.00

36

77150732B
Ref: 36

SCREW M6X40

€ 1.00

37

77140061A
Ref: 37

SCREW

€ 1.00

38

55240201A
Ref: 38

SENSOR, TIMING & RPM

€ 99.00

39

734005N01
Ref: 39

WASHER, SPRING

€ 1.00

40

60N107335
Ref: 40

SCREW TCEI M6X1.00X16

€ 1.00

41

78810661AA
Ref: 41

GASKET 0.6 MM

€ 3.00

41

78810661AB
Ref: 41

GASKET 0.8 MM

€ 3.00

41

78810661AC
Ref: 41

GASKET 1.0 MM

€ 3.00

42

88640031A
Ref: 42

O-RING

€ 1.00

43

734306N01
Ref: 43

WASHER

€ 1.00

44

82911341A
Ref: 44

RING

€ 4.00

010 WATER PUMP - ALTERNATOR COVER

wszystkie zespoły
