WIRING HARNESS (DL650AK8/AK9)

DL650 VSTROM 2007 (K7) USA (E03)

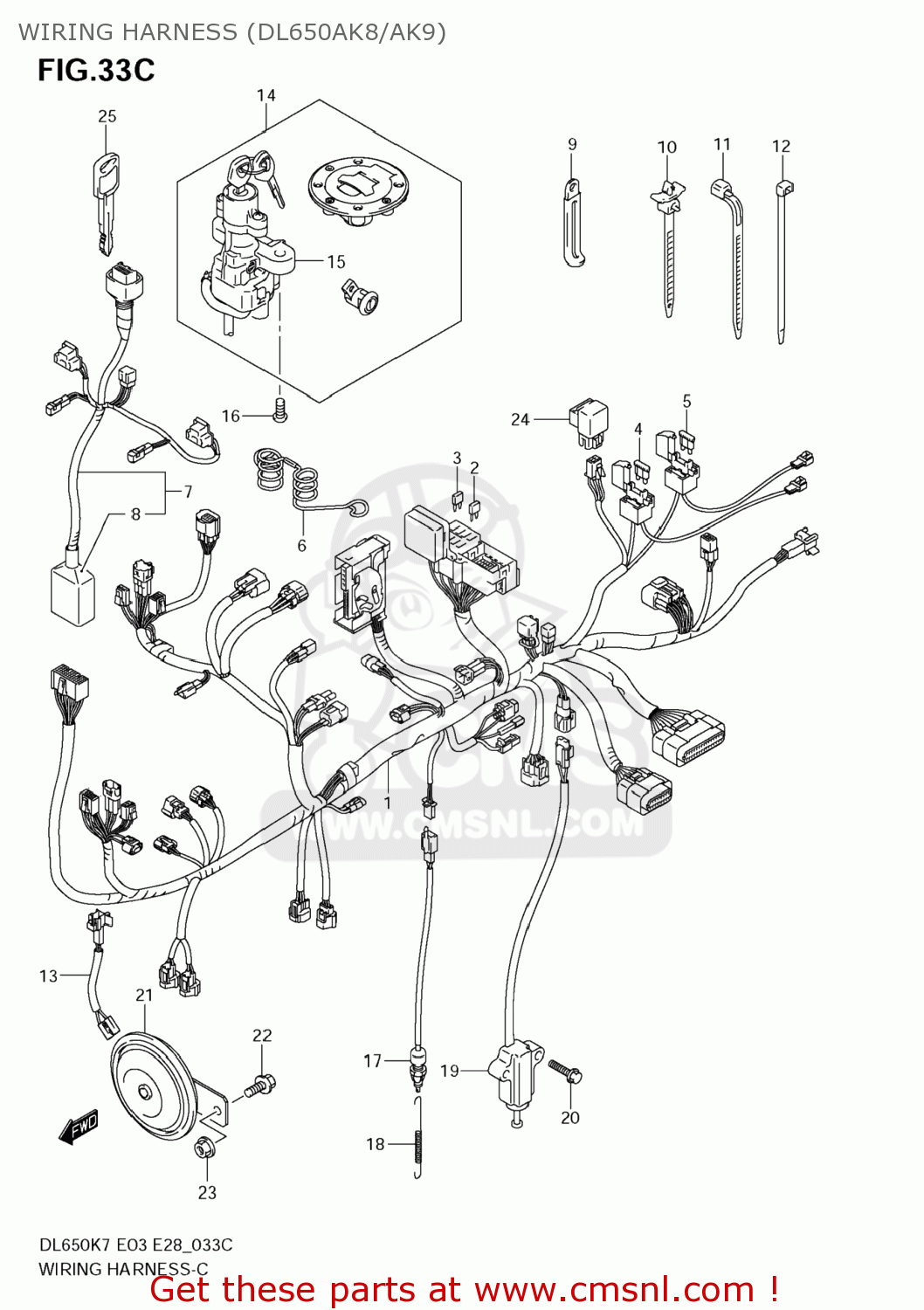

Wiring harness (dl650ak8/ak9) technisch schema DL650 VSTROM 2007 (K7) USA (E03)

WIRING HARNESS (DL650AK8/AK9) DL650 VSTROM 2007 (K7) USA (E03)
WIRING HARNESS (DL650AK8/AK9) DL650 VSTROM 2007 (K7) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
3661027GH0
ref: 1
36610-27GH1
HARNESS,WIRING NO.1
€ 613.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 2.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
0948140101
ref: 4
FUSE(40A)
€ 7.00
5
0948125101
ref: 5
09481-25103
FUSE (25A)
0948125101
€ 2.50
6
3661906G01
ref: 6
GUIDE,WIRING HARNESS
€ 16.50
7
3662027G80
ref: 7
HARNESS,WIRING NO.2
€ 268.00
8
3661818G10
ref: 8
COVER,CONNECTOR
€ 10.00
9-1
0940406429
ref: 9-1
CLAMP(L:45)
€ 2.00
9-2
0940406433
ref: 9-2
CLAMP(L:80)
0940406433
€ 3.00
10
0940714408
ref: 10
09407-17402
CLAMP(L:120)
0940714408
€ 5.00
11-1
0940711401
ref: 11-1
CLAMP(L:95)
€ 2.50
11-2
0940714403
ref: 11-2
CLAMP(L:125)
0940714403
€ 2.50
12
0940714407
ref: 12
CLAMP(L:145)
0940714407
€ 3.00
13
3685206G00
ref: 13
WIRE,HORN LEAD
3685206G00
€ 14.00
14-1
3700027860
ref: 14-1
LOCK SET
3700027860
€ 523.00
14-2
3700027870
ref: 14-2
LOCK SET
€ 0.00
15
3710027G00
ref: 15
LOCK ASSY,STEERING
3710027G00
€ 159.50
16
0913908016
ref: 16
BOLT(8X20)
0913908016
€ 3.00
17
3774045D00
ref: 17
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.00
18
0944306012
ref: 18
SPRING
0944306012
€ 3.00
19
3784006G00
ref: 19
SWITCH ASSY,SIDE STAND
3784006G00
€ 67.00
20
015500616B
ref: 20
BOLT
015500616B
€ 2.50
21
3850027G00
ref: 21
HORN ASSY
3850027G00
€ 75.50
22
015500812B
ref: 22
BOLT
015500812B
€ 2.50
23
083161008B
ref: 23
NUT
083161008B
€ 2.50
24
3874024X50
ref: 24
RELAY ASSY
3874024X50
€ 33.50
25
3714633E00
ref: 25
KEY,BLANK
3714633E00
€ 16.00
