WIRING HARNESS (DL650AK7)

DL650 VSTROM 2007 (K7) USA (E03)

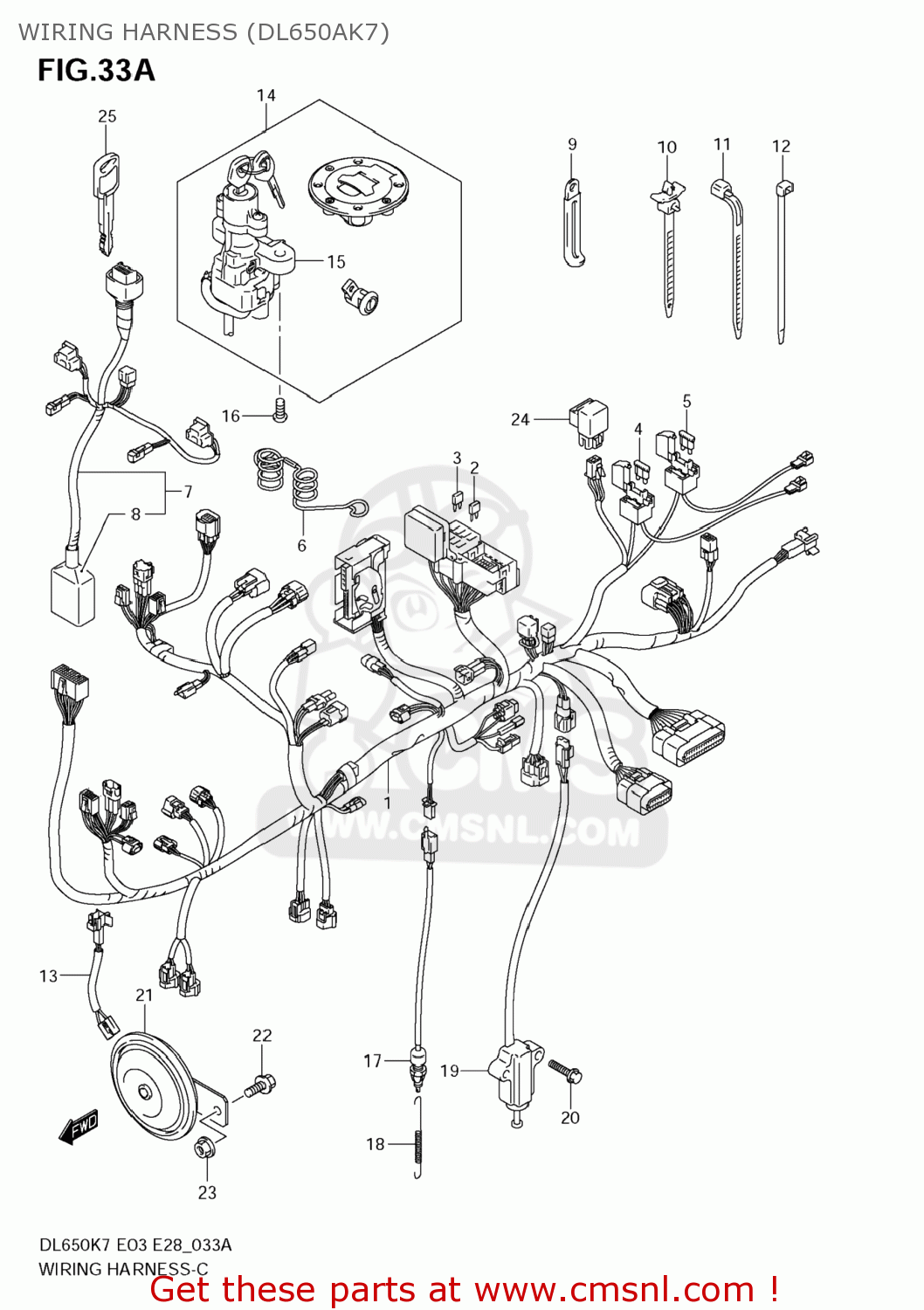

Wiring harness (dl650ak7) technisch schema DL650 VSTROM 2007 (K7) USA (E03)

WIRING HARNESS (DL650AK7) DL650 VSTROM 2007 (K7) USA (E03)
WIRING HARNESS (DL650AK7) DL650 VSTROM 2007 (K7) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
3661027GD0
ref: 1
HARNESS, WIRING, NO.1
€ 783.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 2.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
0948140101
ref: 4
FUSE(40A)
€ 7.00
5
0948125101
ref: 5
09481-25103
FUSE (25A)
0948125101
€ 2.50
6
3661906G01
ref: 6
GUIDE,WIRING HARNESS
€ 16.50
7
3662027G80
ref: 7
HARNESS,WIRING NO.2
€ 268.00
8
3661818G10
ref: 8
COVER,CONNECTOR
€ 10.00
9-1
0940406429
ref: 9-1
CLAMP(L:45)
€ 2.00
9-2
0940406433
ref: 9-2
CLAMP(L:80)
0940406433
€ 3.00
10
0940711402
ref: 10
CLAMP(L:90)
0940711402
€ 1.50
11-1
0940711401
ref: 11-1
CLAMP(L:95)
€ 2.50
11-2
0940714403
ref: 11-2
CLAMP(L:125)
0940714403
€ 2.50
12
0940714407
ref: 12
CLAMP(L:145)
0940714407
€ 3.00
13
3685206G00
ref: 13
WIRE,HORN LEAD
3685206G00
€ 14.00
14-1
3700027860
ref: 14-1
LOCK SET
3700027860
€ 523.00
14-2
3700027870
ref: 14-2
LOCK SET
€ 0.00
15
3710027G00
ref: 15
LOCK ASSY,STEERING
3710027G00
€ 159.50
16
0913908016
ref: 16
BOLT(8X20)
0913908016
€ 3.00
17
3774045D00
ref: 17
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.00
18
0944306012
ref: 18
SPRING
0944306012
€ 3.00
19
3784006G00
ref: 19
SWITCH ASSY,SIDE STAND
3784006G00
€ 67.00
20
0155006163
ref: 20
01550-0616A
BOLT
0155006163
€ 2.50
21
3850027G00
ref: 21
HORN ASSY
3850027G00
€ 75.50
22
0155008123
ref: 22
01550-0812A
BOLT
0155008123
€ 2.50
23
083161008A
ref: 23
NUT
083161008A
€ 2.00
24
3874024X50
ref: 24
RELAY ASSY
3874024X50
€ 33.50
25
3714633E00
ref: 25
KEY,BLANK
3714633E00
€ 16.00
