De online onderdelen catalogus

FOOTREST

DL650 VSTROM 2007 (K7) USA (E03)

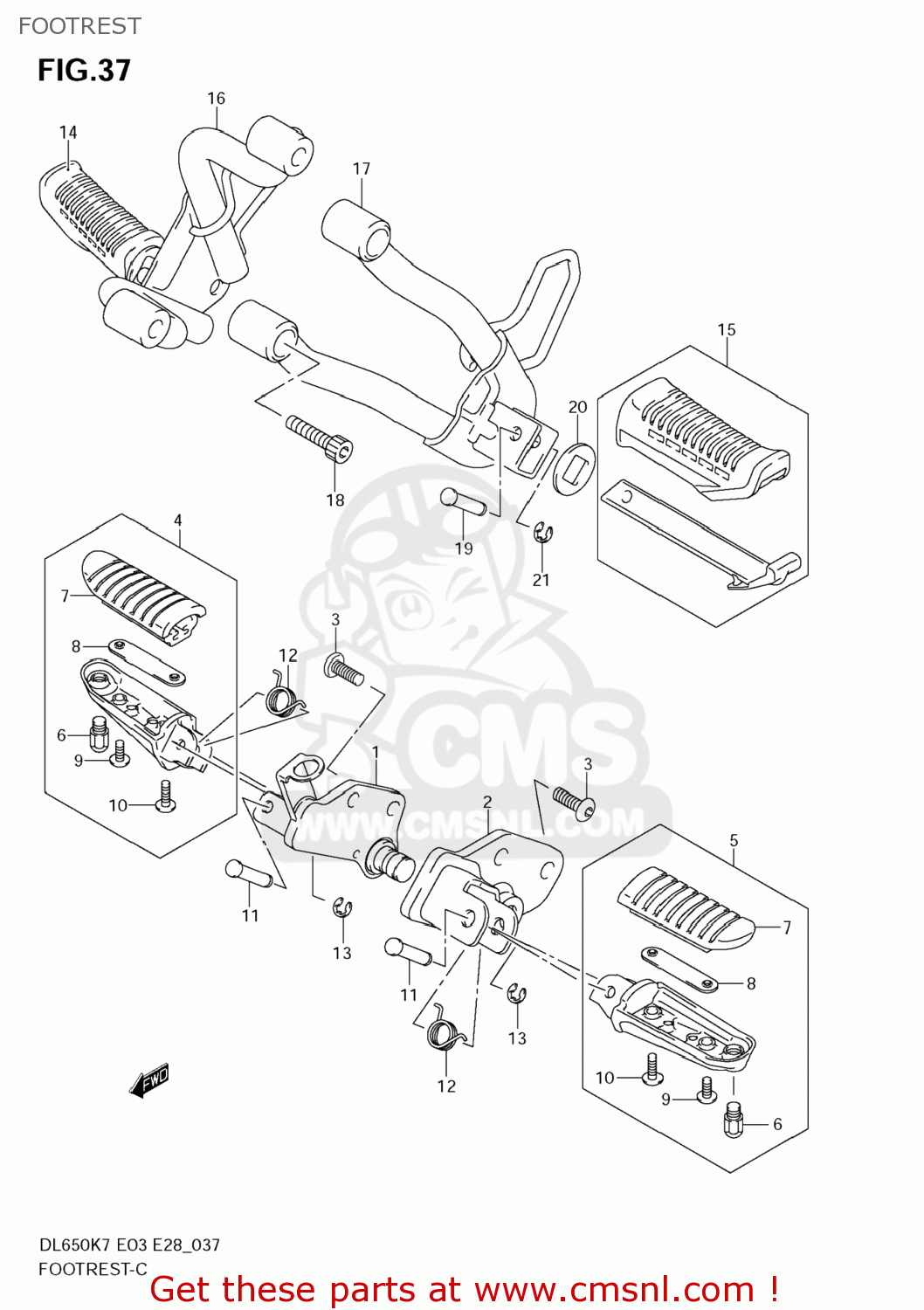

Footrest technisch schema DL650 VSTROM 2007 (K7) USA (E03)

FOOTREST DL650 VSTROM 2007 (K7) USA (E03)
FOOTREST DL650 VSTROM 2007 (K7) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
4351027G01YAP
ref: 1
BRACKET,FR FOO
4351027G01YAP
€ 57.00
2
4352027G01YAP
ref: 2
BRACKET,FR FOO
4352027G01YAP
€ 44.50
3
0910608150
ref: 3
BOLT(8X23)
0910608150
€ 2.50
4
4350106G01
ref: 4
FOOTREST ASSY,PILLION,R
4350106G01
€ 72.00
5
4350206G01
ref: 5
FOOTREST ASSY,PILLION,L
4350206G01
€ 74.00
6
4357607D01
ref: 6
BOLT,BANK SENSOR
4357607D01
€ 6.50
7
4355106G00
ref: 7
RUBBER,FOOTREST
4355106G00
€ 10.00
8
4355206G00
ref: 8
PLATE,FR FOOTREST RUBBER
4355206G00
€ 7.50
9
021420516B
ref: 9
SCREW
021420516B
€ 1.50
10
021420520B
ref: 10
SCREW
021420520B
€ 1.50
11
0920808010
ref: 11
PIN(8X33.2)
0920808010
€ 2.50
12
0944818022
ref: 12
SPRING
0944818022
€ 3.00
13-1
083321106A
ref: 13-1
E RING
083321106A
€ 1.50
13-2
083321106B
ref: 13-2
E RING
083321106B
€ 1.50
14
4360012B00
ref: 14
FOOTREST ASSY,PILLION,R
4360012B00
€ 22.50
15
4370012B00
ref: 15
FOOTREST ASSY,PILLION,L
4370012B00
€ 22.00
16
4381027G10019
ref: 16
BRACKET,PILLION FOOTREST,R
€ 132.50
17
4382027G01019
ref: 17
BRACKET,PILLION FOOTREST,L(BLA
4382027G01019
€ 132.50
18
0910608074
ref: 18
BOLT(8X40)
0910608074
€ 3.00
19-1
0920806005
ref: 19-1
PIN
0920806005
€ 2.00
19-2
0920806008
ref: 19-2
PIN(6X29.5)
0920806008
€ 2.50
20
4363134A01
ref: 20
WASHER,FOOTREST RUBBER
4363134A01
€ 6.50
21
083321104A
ref: 21
E RING
€ 1.50
