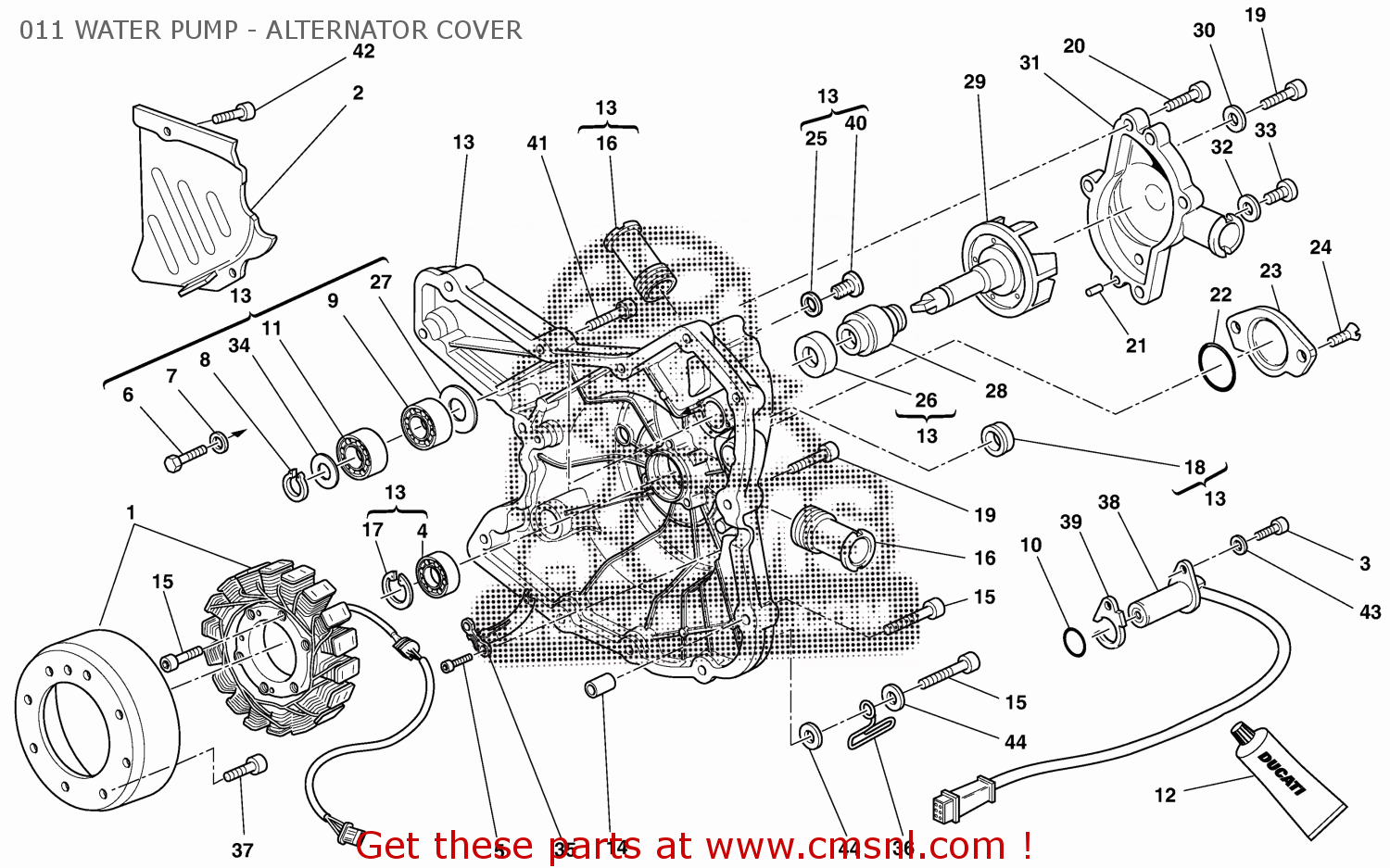

011 WATER PUMP - ALTERNATOR COVER - SBK749S 2004 USA (SUPERBIKE 749S) 9151-2062A

ref

onderdeelnr

omschrijving

hoeveelheid

1

26440171A
ref: 1

FLYWHEEL

€ 561.00

2

24710831A
ref: 2

CHAIN PINION COVER

€ 11.50

3

77150658B
ref: 3

SCREW TCEI M6X16

€ 1.00

4

70250081A
ref: 4

BALL BEARING 6003 TN9 C3

€ 10.50

5

77150648B
ref: 5

SCREW TCEI M6X14

€ 1.00

6

77052508B
ref: 6

SCREW TE M6X16

€ 1.00

7

85211721A
ref: 7

WASHER 6X14.2X1.3

€ 1.00

8

88450111A
ref: 8

CIRCLIP

€ 4.00

9

70240102A
ref: 9

BEARING

€ 7.50

10

88640031A
ref: 10

O-RING

€ 1.00

11

70240091A
ref: 11

BALL BEARING 6000

€ 7.00

12

942470014
ref: 12

LIQUID GASKET

€ 16.50

13

24220542A
ref: 13

GENERATOR COVER

€ 656.50

14

040049240
ref: 14

PIN DOWEL

€ 2.00

15

77150718B
ref: 15

SCREW TCEI M6X30

€ 1.00

16

66810013A
ref: 16

WATER PUMP DELIVERY PIPE UNION

€ 10.00

17

735033380
ref: 17

CIRCLIP

€ 1.00

18

937831524
ref: 18

OIL SEAL

€ 4.50

19

77150698B
ref: 19

SCREW TCEI M6X25

€ 1.00

20

77150668B
ref: 20

SCREW TCEI M6X18

€ 1.00

21

001152010
ref: 21

PIN DOWEL

€ 1.00

22

88640351A
ref: 22

O-RING

€ 4.50

23

24710021BC
ref: 23

COVER

€ 33.00

24

77750498B
ref: 24

SCREW TSPEI M6X14

€ 1.00

25

85211201A
ref: 25

ALUMINIUM GASKET

€ 2.00

26

93050051A
ref: 26

MECHANICAL SEAL

€ 10.50

27

71311281B
ref: 27

SPACER

€ 4.00

28

93050062B
ref: 28

MECHANICAL SEAL

€ 33.50

29

25120081A
ref: 29

WATER PUMP ROTOR

€ 110.50

30

85250231A
ref: 30

GASKET

€ 1.00

31

24721662A
ref: 31

WATER PUMP COVER

€ 124.50

32

85250241A
ref: 32

WASHER 10X14X1

€ 1.00

33

78050011A
ref: 33

PLUG

€ 2.00

34

85211141A
ref: 34

WASHER 10X17X1.8

€ 9.50

35

83012351A
ref: 35

CABLE GUIDE

€ 52.00

36

88110301A
ref: 36

GUIDE, CABLE

€ 5.50

37

77940751A
ref: 37

SCREW TCCE M6X25

€ 1.00

38

55240201A
ref: 38

SENSOR, TIMING & RPM

€ 99.00

39

78810761A
ref: 39

GASKET, SENSOR 0.6 MM

€ 4.00

39

78810761AA
ref: 39

GASKET, SENSOR 0.8 MM

€ 4.50

39

78810761AB
ref: 39

GASKET, SENSOR 1.0 MM

€ 4.00

40

77911982A
ref: 40

THREADED PLUG M15X1

€ 4.50

41

77150678B
ref: 41

SCREW TCEI M6X16

€ 1.00

42

77150652BB
ref: 42

SCREW TCEI M6X16

€ 3.00

43

85310031A
ref: 43

SPRING WASHER 6 MM

€ 1.00

44

734306N01
ref: 44

WASHER

€ 1.00

011 WATER PUMP - ALTERNATOR COVER
