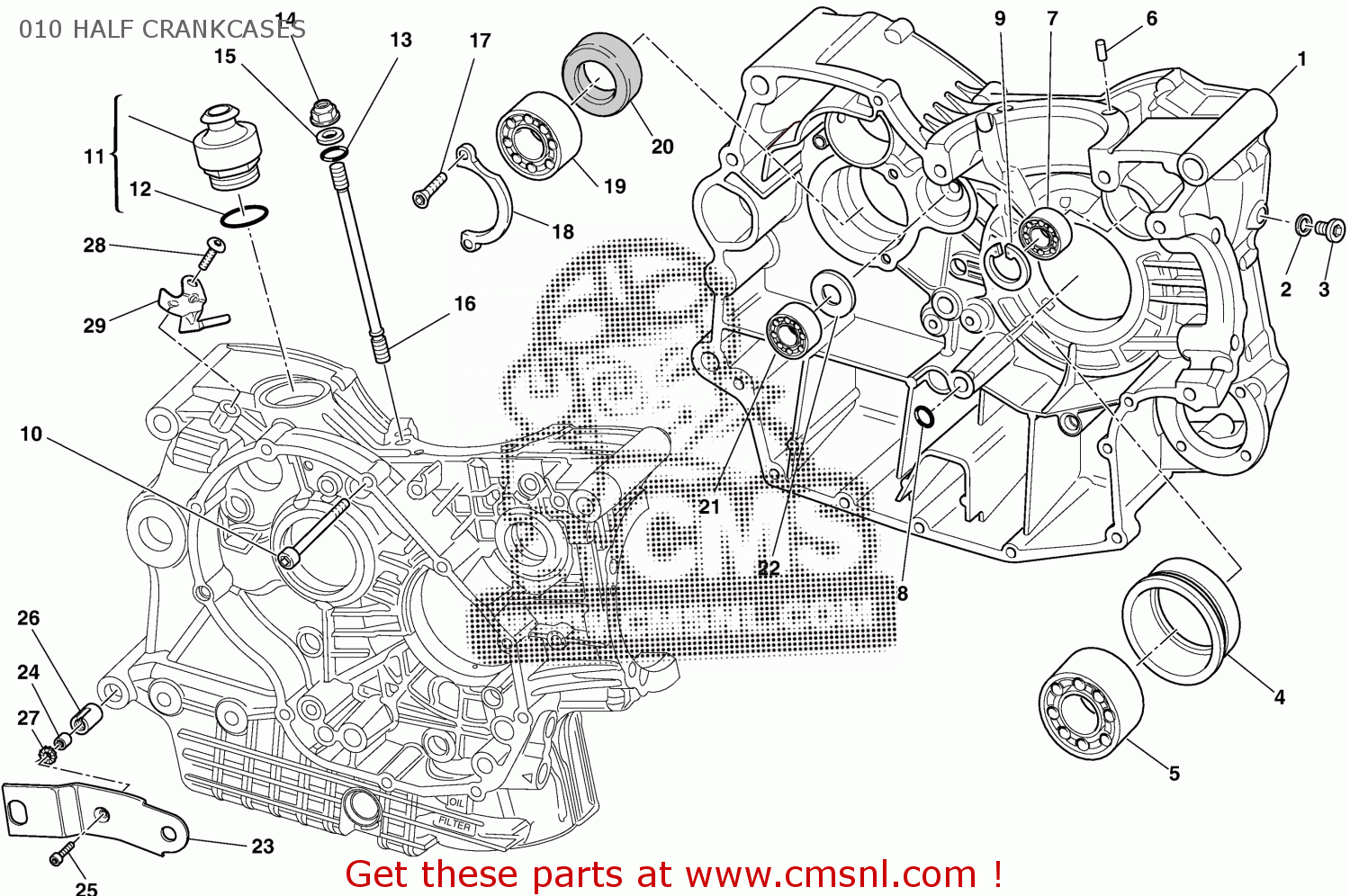

010 HALF CRANKCASES

ref

onderdeelnr

omschrijving

hoeveelheid

1

22520692A
ref: 1

CRANKCASE

€ 3,691.50

2

85250261A
ref: 2

GASKET, ALUMINIUM 12X16X1.5

€ 1.00

3

77910262A
ref: 3

SCREW M12X1

€ 3.00

4

71010701A
ref: 4

BUSHING

€ 60.50

5

751913380
ref: 5

BEARING

€ 85.00

6

001152010
ref: 6

PIN DOWEL

€ 1.00

7

70250081A
ref: 7

BALL BEARING 6003 TN9 C3

€ 10.50

8

938270114
ref: 8

O-RING

€ 1.00

9

735033380
ref: 9

CIRCLIP

€ 1.00

10

77151368B
ref: 10

SCREW TCEI M8X75

€ 1.00

11

59310031B
ref: 11

VALVE, BREATHER

€ 71.00

12

938233156
ref: 12

O RING 39.34X2.62

€ 3.00

13

040017030
ref: 13

O RING 2031

€ 1.00

14

74810381A
ref: 14

NUT

€ 2.00

15

85610642A
ref: 15

WASHER, SPECIAL 10.5X21X2

€ 1.00

16

76610242A
ref: 16

STUD BOLT, CYLINDER HEAD

€ 16.00

17

720941616
ref: 17

SCREW TSPEI M6X12

€ 1.00

18

82610121A
ref: 18

PLATE, RETAINER

€ 5.50

19

70240131A
ref: 19

BEARING

€ 82.50

20

93040221A
ref: 20

OIL SEAL

€ 22.00

21

70240331A
ref: 21

BEARING 17X40X12

€ 66.50

22

037049250
ref: 22

WASHER

€ 1.00

23

83012611A
ref: 23

RIGHT BRACKET

€ 15.50

24

71110721A
ref: 24

BUSH, CONICAL

€ 3.00

25

77156698B
ref: 25

SCREW TCEIF M6X25

€ 2.00

26

71010321A
ref: 26

SPINDLE, TAPER

€ 5.50

27

85240081A
ref: 27

TOOTHED LOCK WASHER

€ 1.00

28

77510622A
ref: 28

SCREW TBEI M8X10

€ 6.00

29

82914391A
ref: 29

HOLDER SENSOR

€ 4.00
