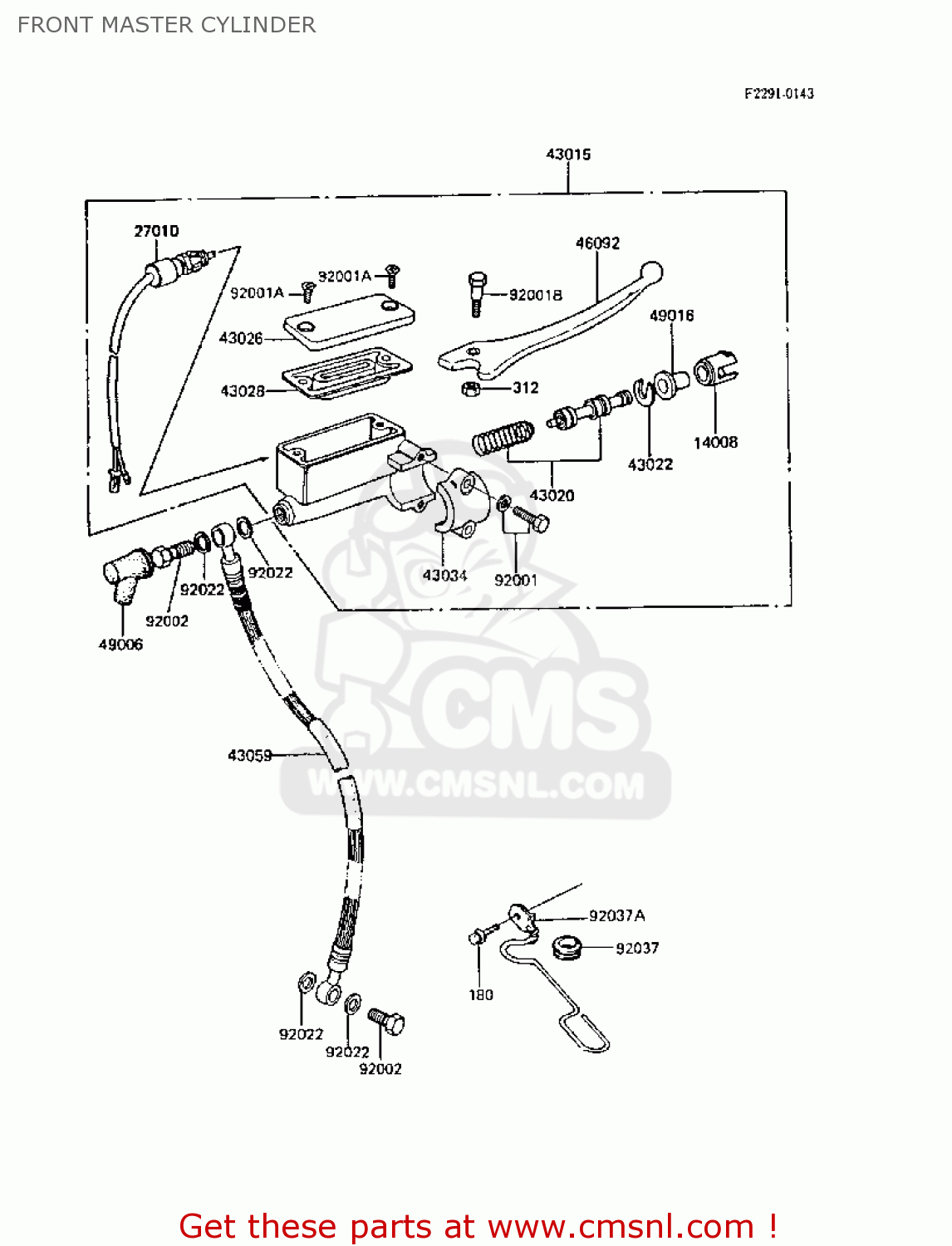

FRONT MASTER CYLINDER

Z305A3 CSR 1988 EUROPE

Front master cylinder スキーマ Z305A3 CSR 1988 EUROPE

FRONT MASTER CYLINDER Z305A3 CSR 1988 EUROPE
FRONT MASTER CYLINDER Z305A3 CSR 1988 EUROPE
価格は EUR 単位です
参照
パーツ番号
説明
量
180
180B0612
参照: 180
BOLT-UPSET-WS,6X12
€ 2.50
312
312B0600
参照: 312
NUT,6MM
312B0600
€ 0.50
14008
140081007
参照: 14008
LINER,PISTON
140081007
€ 7.50
27010
270101028
参照: 27010
SWITCH,BRAKE
270101028
€ 18.50
43015
430151044
参照: 43015
CYLINDER-ASSY-MASTER
€ 237.00
43020
430201026
参照: 43020
PISTON-COMP-BRAKE
430201026
€ 59.00
43022
430221001
参照: 43022
STOPPER-BRAKE,PISTON
430221001
€ 2.50
43026
430261006
参照: 43026
CAP-BRAKE
430261006
€ 44.00
43028
430281008
参照: 43028
DIAPHRAGM,MASTER CYLI
430281008
€ 19.50
43034
430341001
参照: 43034
HOLDER-BRAKE,MASTER C
430341001
€ 19.50
43059
430591207
参照: 43059
HOSE-BRAKE,FR,L=1010
€ 88.00
46092
460921009
参照: 46092
LEVER-GRIP,FRONT BRAK
460921009
€ 14.50
49006
490061041
参照: 49006
BOOT,DUST
490061041
€ 7.00
49016
490161010
参照: 49016
COVER-SEAL,BRAKE PIST
490161010
€ 9.00
92001
43033003
参照: 92001
BOLT,6X25,W/WASHER
43033003
€ 2.50
92001A
920011055
参照: 92001A
SCREW,COUNTERSUNK HED
920011055
€ 3.50
92001B
920011056
参照: 92001B
BOLT, CLUTCH LEV FITT
920011056
€ 8.00
92002
920021888
参照: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
43067001
参照: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92037
43064006
参照: 92037
GROMMET,BRAKE HOSE
43064006
€ 2.50
92037A
920371116
参照: 92037A
CLAMP,CABLE
920371116
€ 11.50
