BRAKE PEDAL

Z305A3 CSR 1988 EUROPE

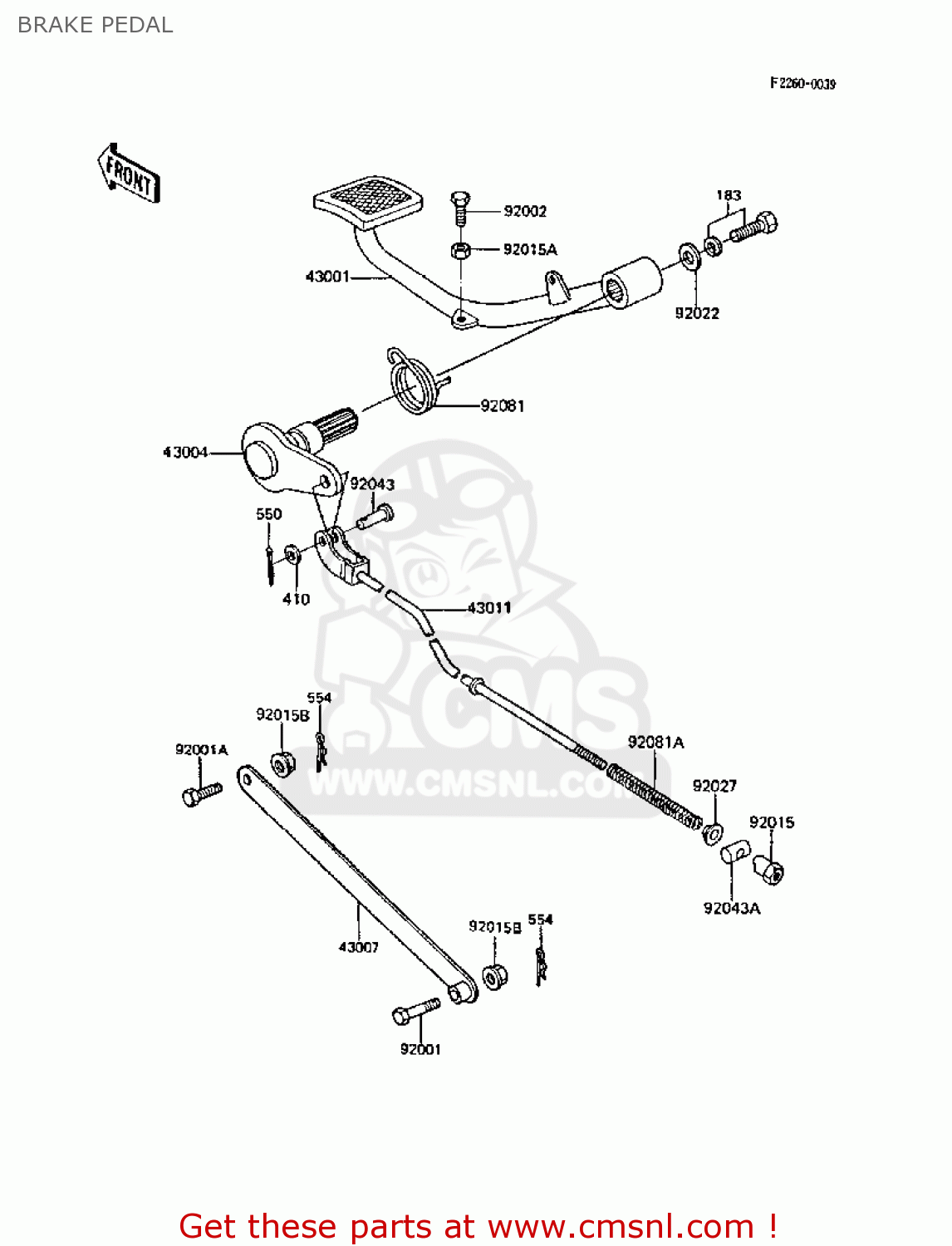

Brake pedal スキーマ Z305A3 CSR 1988 EUROPE

BRAKE PEDAL Z305A3 CSR 1988 EUROPE
BRAKE PEDAL Z305A3 CSR 1988 EUROPE
価格は EUR 単位です
参照
パーツ番号
説明
量
183
183G0812
参照: 183
BOLT-UPSET-WS-SMALL
183G0812
€ 2.50
410
410B0600
参照: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
550
550D2015
参照: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
参照: 554
PIN-SNAP,8MM
554A0800
€ 1.00
43001
430011116
参照: 43001
LEVER-BRAKE,PEDAL
430011116
€ 66.00
43004
430041031
参照: 43004
SHAFT-BRAKE
€ 39.50
43007
430071027
参照: 43007
ROD-TORQUE
€ 26.50
43011
430111032
参照: 43011
ROD-BRAKE
€ 20.00
92001
920011423
参照: 92001
BOLT, 10X45
€ 6.50
92001A
92003017
参照: 92001A
BOLT-TRQ LINK 10X25
92003017
€ 3.50
92002
920021373
参照: 92002
BOLT,6X20
920021373
€ 2.50
92015
92015042
参照: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92015A
920151391
参照: 92015A
NUT,6MM
920151391
€ 1.50
92015B
920151428
参照: 92015B
NUT,FLANGED,10MM
920151428
€ 3.00
92022
92022195
参照: 92022
WASHER-PLAIN
92022195
€ 2.50
92027
92027122
参照: 92027
COLLAR,L=4.7
92027122
€ 5.00
92043
92043064
参照: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.00
92043A
92043065
参照: 92043A
PIN-BRAKE ROD
92043065
€ 3.50
92081
43005022
参照: 92081
SPRING,BRAKE PEDAL
43005022
€ 4.50
92081A
43012001
参照: 92081A
SPRING,BRAKE ROD
43012001
€ 3.00
