CLUTCH

Z305A3 CSR 1988 EUROPE

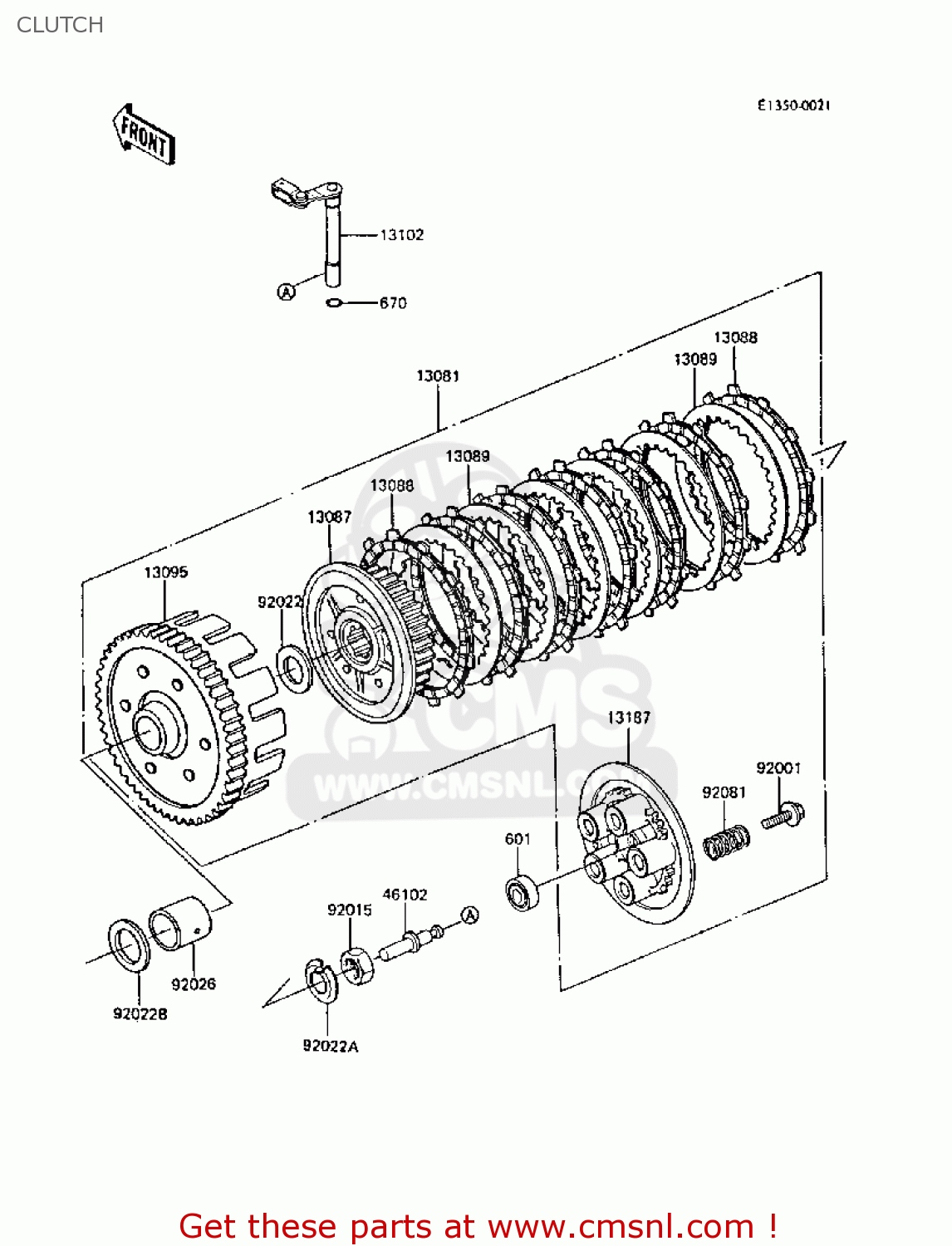

Clutch スキーマ Z305A3 CSR 1988 EUROPE

CLUTCH Z305A3 CSR 1988 EUROPE
CLUTCH Z305A3 CSR 1988 EUROPE
価格は EUR 単位です
参照
パーツ番号
説明
量
601
601B6001
参照: 601
BALL BEARING,#6001C3
€ 14.50
670
670B1509
参照: 670
O RING,9MM
670B1509
€ 1.00
13081
130811065
参照: 13081
CLUTCH-ASSY
€ 276.50
13087
130871005
参照: 13087
HUB-CLUTCH
130871005
€ 90.00
13088
130881009
参照: 13088
PLATE-FRICTION (NAS)
130881009
€ 10.00
13089
130891005
参照: 13089
PLATE,CLUTCH STEEL (NAS)
130891005
€ 7.00
13095
130951020
参照: 13095
HOUSING-COMP-CLUTCH
€ 300.50
13102
131021009
参照: 13102
RELEASE-COMP-CLUTCH
131021009
€ 32.50
13187
131871018
参照: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871018
€ 45.00
46102
461021030
参照: 46102
ROD,CLUTCH
461021030
€ 20.50
92001
920011066
参照: 92001
BOLT, CLUTCH SPR FITT
920011066
€ 4.00
92015
92016028
参照: 92015
NUT
92016028
€ 6.00
92022
920221075
参照: 92022
WASHER,25.5X38X2
920221075
€ 8.50
92022A
920221142
参照: 92022A
WASHER,LOCK
920221142
€ 2.50
92022B
92022145
参照: 92022B
WASHER-CLUTCH THRUST
92022145
€ 4.00
92026
920261052
参照: 92026
BUSHING,CLUTCH
920261052
€ 10.50
92081
920811078
参照: 92081
SPRING,CLUTCH
920811078
€ 3.50
