WATER PUMP

VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

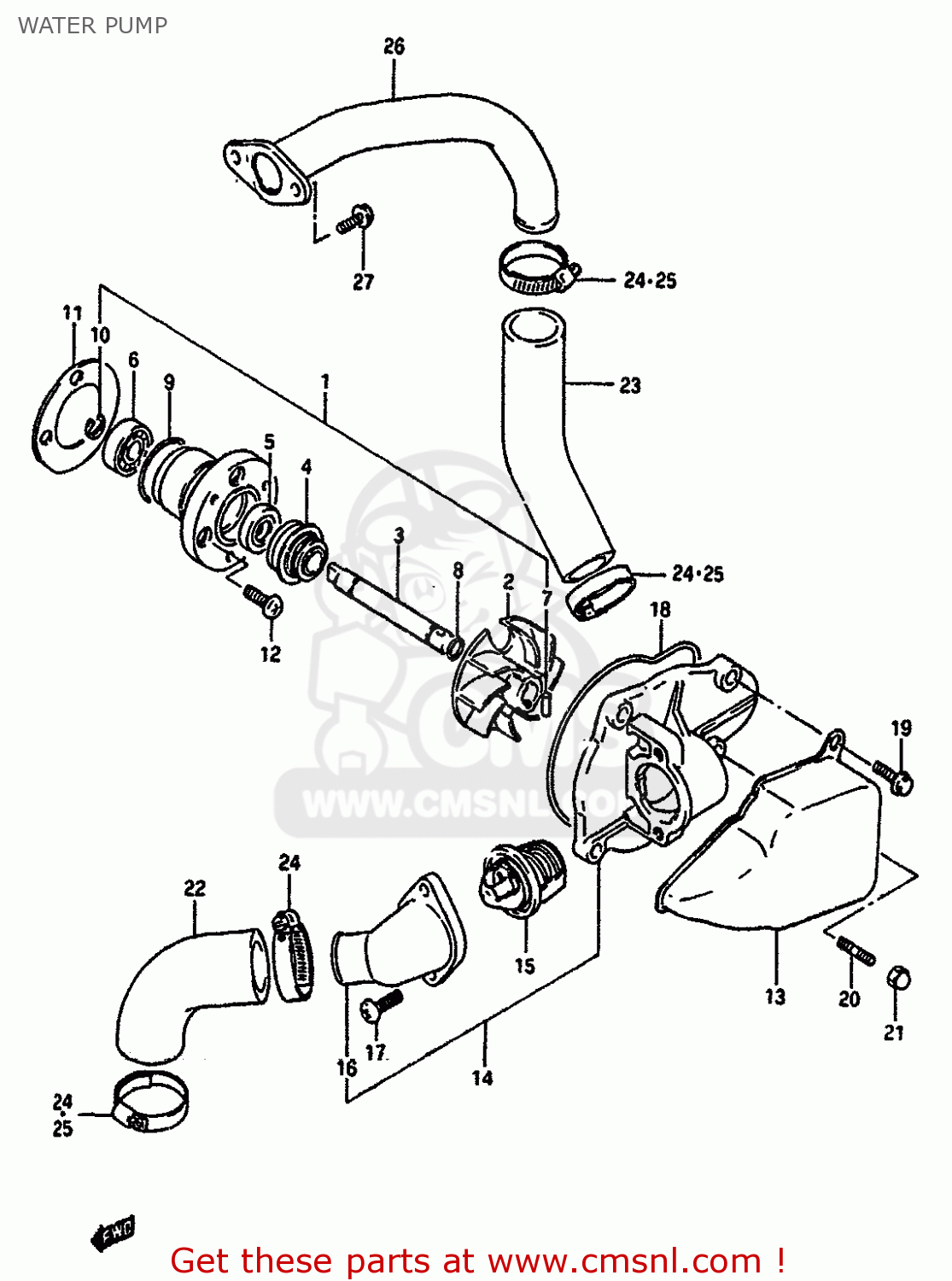

Water pump diagramma VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

WATER PUMP VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

1740038A02
rif: 1
-17400-38A01

PUMP ASSEMBLY,WATER

€ 119.00

2

1749138A00
rif: 2

IMPELLER

€ 16.50

3

1751138A00
rif: 3

SHAFT

€ 28.50

4

1747046A00
rif: 4

SEAL,MECHANICAL

€ 18.00

5

1746138A00
rif: 5

OILSEAL

€ 4.00

6

1745138A00
rif: 6

BEARING,10X26X8

€ 10.50

7

1751638A00
rif: 7

PIN

€ 4.00

8

1751538A00
rif: 8

O RING

€ 1.50

9

1741738A00
rif: 9

O RING

€ 2.50

10

0833211086
rif: 10

E RING

€ 1.50

11-1

1743138A00
rif: 11-1
MODEL F/G/H/J/K/L

GASKET,WATER PUMP CASE (NAS)

€ 4.50

11-2

1743138A10
rif: 11-2
MODEL M

GASKET,WATER PUMP (NAS)

€ 4.50

11-3

1743138A00H17
rif: 11-3
E17,E77 (SWEDEN)

GASKET,WATER PUMP CASE

€ 4.50

12

0211206126
rif: 12

SCREW

€ 1.50

13

1744138A02
rif: 13

COVER,WATER PUMP

€ 17.50

14

1741038A00
rif: 14

CASE ASSY,WATER PUMP

€ 156.00

15

1767033410
rif: 15

THERMOSTAT,WATER

€ 32.50

16

1741238A00
rif: 16

CONNECTOR

€ 43.50

17

0211206167
rif: 17

SCREW

€ 2.50

18

1743538A00
rif: 18

O RING,WATER PUMP CAP

€ 4.50

19

0154706207
rif: 19

BOLT

€ 1.50

20

0910806046
rif: 20

STUD

€ 4.50

21

0831311067
rif: 21

NUT

€ 1.50

22

1785738A02
rif: 22

HOSE,WATER PUMP IN

€ 15.50

23

1785838A01
rif: 23

HOSE,WATER

€ 15.50

24-1

0940230501
rif: 24-1
MODEL F/G

CLAMP

€ 11.50

24-2

0940230501
rif: 24-2
MODEL H/J/K/L

CLAMP

€ 11.50

25

0940230502
rif: 25
MODEL H/J/K/L

CLAMP

€ 11.50

26

1789038A00
rif: 26

PIPE,CYLINDER INLET

€ 42.50

27

0154706167
rif: 27

BOLT

€ 1.50
