FOOTREST (MODEL F/G)

VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

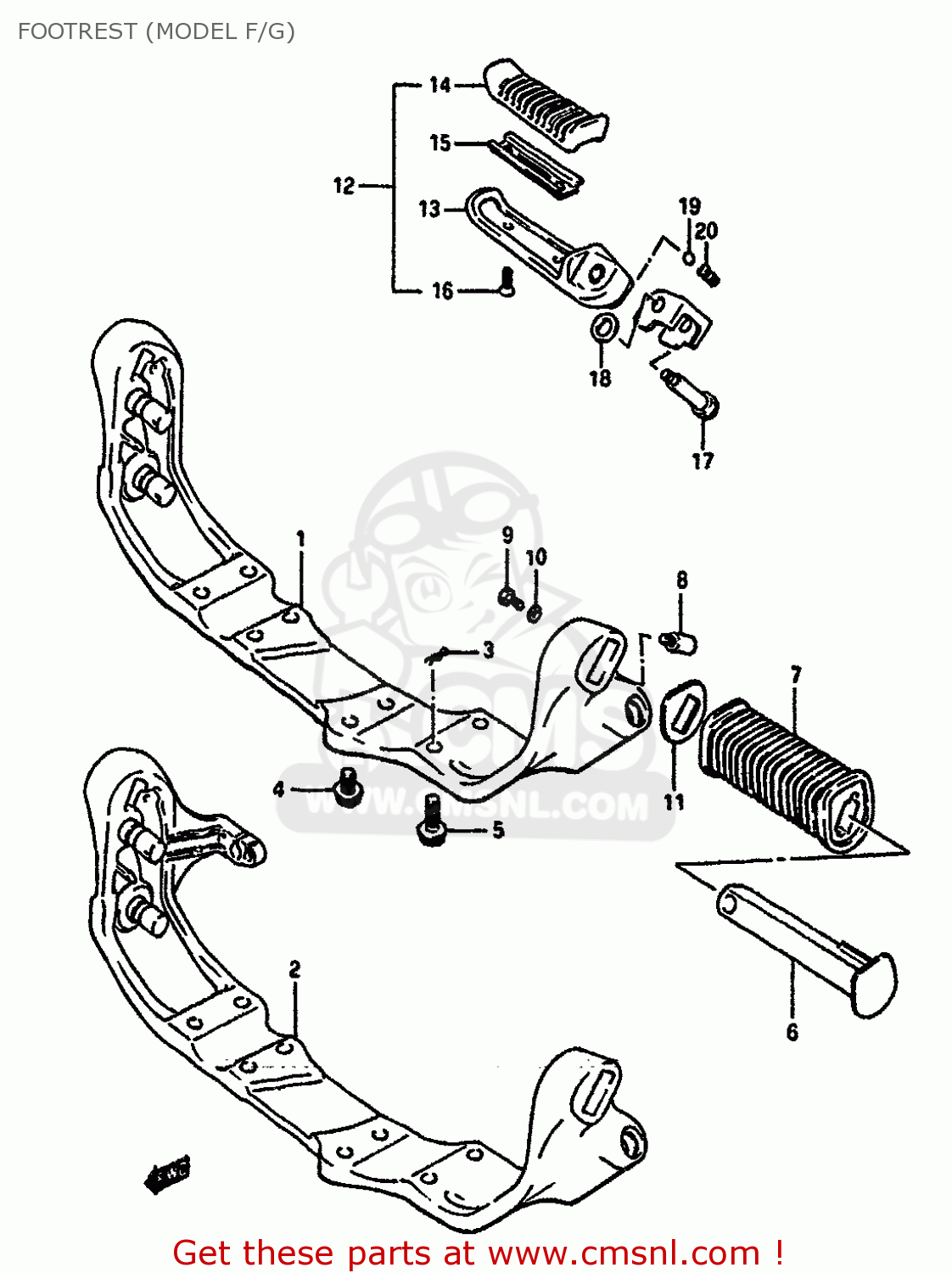

Footrest (model f/g) diagramma VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

FOOTREST (MODEL F/G) VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

4351038A00
rif: 1
MODEL F/G

BRACKET,FRONT FOOTREST

€ 394.50

2-1

4351038A30
rif: 2-1
MODEL G

BRACKET,FRONT FOOTREST

€ 0.00

2-2

4351038A20
rif: 2-2
MODEL G,FOR E4,E17,E

BRACKET COMP,FRONT FOOTREST

€ 410.50

3

0938508002
rif: 3

PIN,SNAP

09385-08002 | 0938508002

€ 1.50

4

0712008208
rif: 4

BOLT

€ 4.00

5

0910608064
rif: 5

BOLT(8X25)

09106-08064 | 0910608064

€ 6.50

6-1

4353038A00
rif: 6-1

BAR,FR FOOTREST,R

43530-38A00 | 4353038A00

€ 38.00

6-2

4354038A00
rif: 6-2

BAR,FR FOOTREST,L

43540-38A00 | 4354038A00

€ 30.00

7

4355138A00
rif: 7

RUBBER,FR FOOTREST

43551-38A00 | 4355138A00

€ 12.00

8

4364138A00
rif: 8

BOLT,FRONT FOOTREST RUBBER

43641-38A00 | 4364138A00

€ 7.00

9

0110705127
rif: 9

BOLT 5X12

€ 2.50

10

0832121057
rif: 10

LOCK WASHER

08321-21057 | 0832121057

€ 2.50

11-1

4357038A00
rif: 11-1

WASHER,FR FOOTREST,R

43570-38A00 | 4357038A00

€ 5.50

11-2

4358038A00
rif: 11-2

WASHER,FR FOOTREST,L

43580-38A00 | 4358038A00

€ 9.00

12-1

4360038A00
rif: 12-1

FOOTREST ASSEMBLY,REAR

€ 39.50

12-2

4370038A00
rif: 12-2

FOOTREST ASSEMBLY,PILLION

€ 35.50

13-1

4361038A00
rif: 13-1

BAR COMP,PILLION FOOTREST

43610-38A00 | 4361038A00

€ 39.50

13-2

4371038A00
rif: 13-2

BAR COMP,PILLION FOOTREST

43710-38A00 | 4371038A00

€ 35.50

14

4361238A00
rif: 14

RUBBER,PILLION FOOTREST

43612-38A00 | 4361238A00

€ 15.50

15

4363238A00
rif: 15

PLATE,RUBBER STOPPER

43632-38A00 | 4363238A00

€ 5.50

16

0213205167
rif: 16

SCREW 5X16

02132-05167 | 0213205167

€ 2.50

17

0911106050
rif: 17

BOLT(6X34.5)

09111-06050 | 0911106050

€ 7.50

18

0822108164
rif: 18

SHIM

08221-08164 | 0822108164

€ 2.00

19

0611107004
rif: 19

BALL

06111-07004 | 0611107004

€ 1.50

20

0944005031
rif: 20

SPRING

09440-05031 | 0944005031

€ 2.00
