OIL PUMP-FUEL PUMP

VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

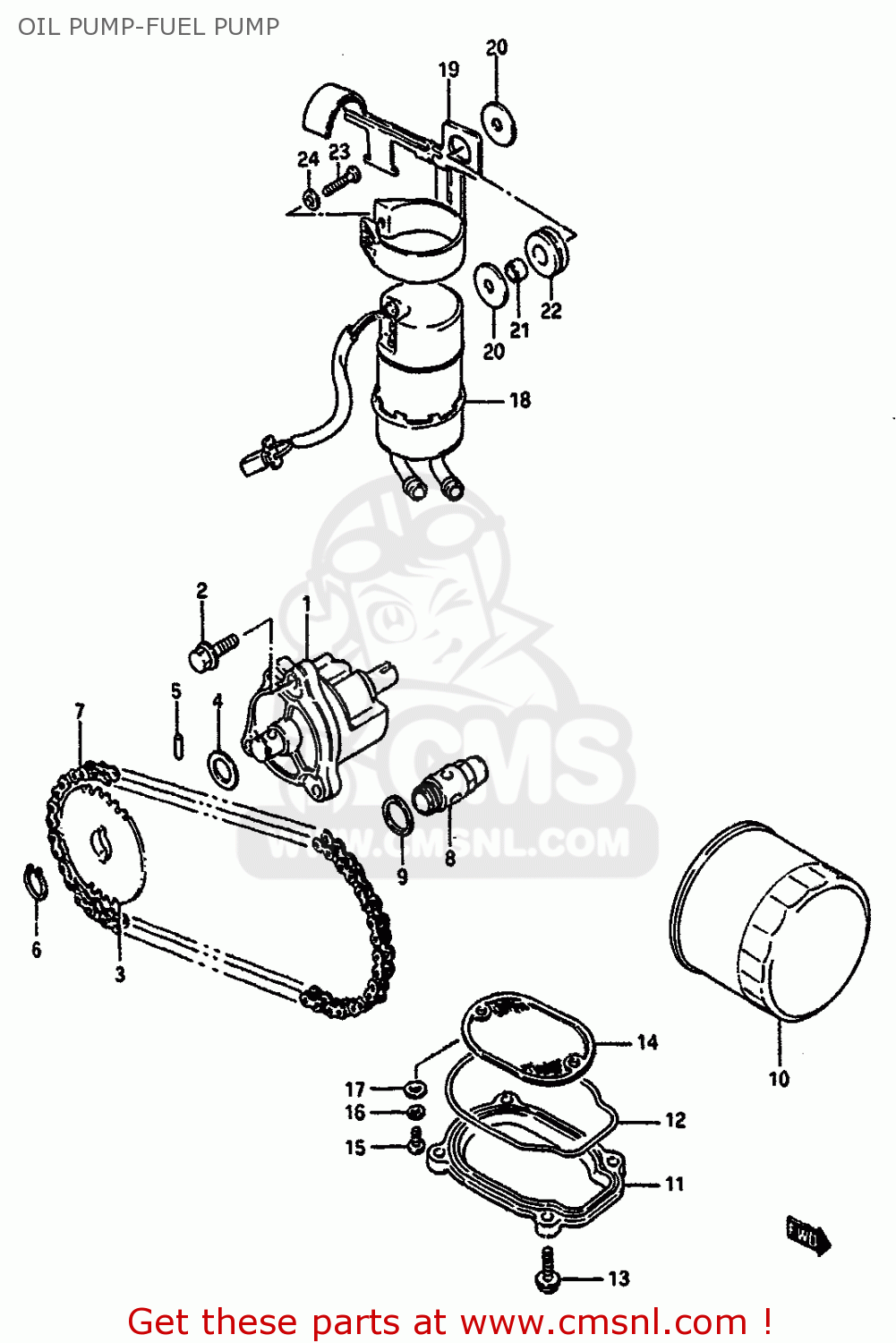

Oil pump-fuel pump diagramma VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

OIL PUMP-FUEL PUMP VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
OIL PUMP-FUEL PUMP VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
1640038A01
rif: 1
PUMP ASSY,ENGINE OIL
1640038A01
€ 137.00
2
0151706257
rif: 2
BOLT 6X25
€ 1.50
3
1633138A00
rif: 3
SPROCKET,OIL PUMP DRIVEN
1633138A00
€ 20.00
4
0822112205
rif: 4
SHIM
0822112205
€ 1.50
5
0926105006
rif: 5
PIN(5X18)
0926105006
€ 1.50
6
0833131128
rif: 6
CIRCLIP
0833131128
€ 1.50
7
1631038A00
rif: 7
CHAIN,OIL PUMP DRIVE
1631038A00
€ 17.50
8
1644024A01
rif: 8
VALVE ASSY,OIL RELIEF
1644024A01
€ 48.50
9
0916816002
rif: 9
GASKET(16X22X2) (NAS)
0916816002
€ 1.50
10-1
1651005A00
rif: 10-1
MODEL F/G
FILTER ASSY,ENGINE OIL
1651005A00
€ 8.50
10-2
1651006B01
rif: 10-2
MODEL H/J/K/L/M-1651
FILTER ASSEMBLY,ENGINE OIL
1651006B01
€ 14.00
11
1652338A00
rif: 11
CAP,OIL STRAINER
1652338A00
€ 18.50
12
1652838A00
rif: 12
O RING,OIL STRAINER CAP
1652838A00
€ 7.50
13
0151706207
rif: 13
BOLT 6X20
€ 2.00
14
1652038A00
rif: 14
STRAINER,ENGINE OIL
1652038A00
€ 7.50
15
0211205126
rif: 15
SCREW 5X12
€ 1.00
16
0832121056
rif: 16
LOCK WASHER
0832121056
€ 2.50
17
0832221056
rif: 17
WASHER
€ 2.00
18-1
1510038A00
rif: 18-1
MODEL F/G
PUMP ASSY,FUEL
1510038A00
€ 211.50
18-2
1510038A10
rif: 18-2
MODEL H/J/K/L/M
PUMP ASSY,FUEL
1510038A10
€ 347.00
19-1
1511038A02
rif: 19-1
MODEL F/G
BRACKET,FUEL PUMP
€ 4.00
19-2
1511038A10
rif: 19-2
MODEL H/J/K/L/M
BRACKET,FUEL PUMP
1511038A10
€ 12.50
20
0916006004
rif: 20
WASHER (6.5X24X1.6)
0916006004
€ 1.50
21
0918006082
rif: 21
SPACER(6.5X10.5X6.5)
0918006082
€ 2.50
22
0932010014
rif: 22
CUSHION
0932010014
€ 4.00
23
0211204208
rif: 23
SCREW
0211204208
€ 1.00
24
0832221047
rif: 24
WASHER 4MM
0832221047
€ 2.00
