Il vostro catalogo delle parti di ricambio online

MUFFLER

VS1400GLP INTRUDER 1988 (J) USA (E03)

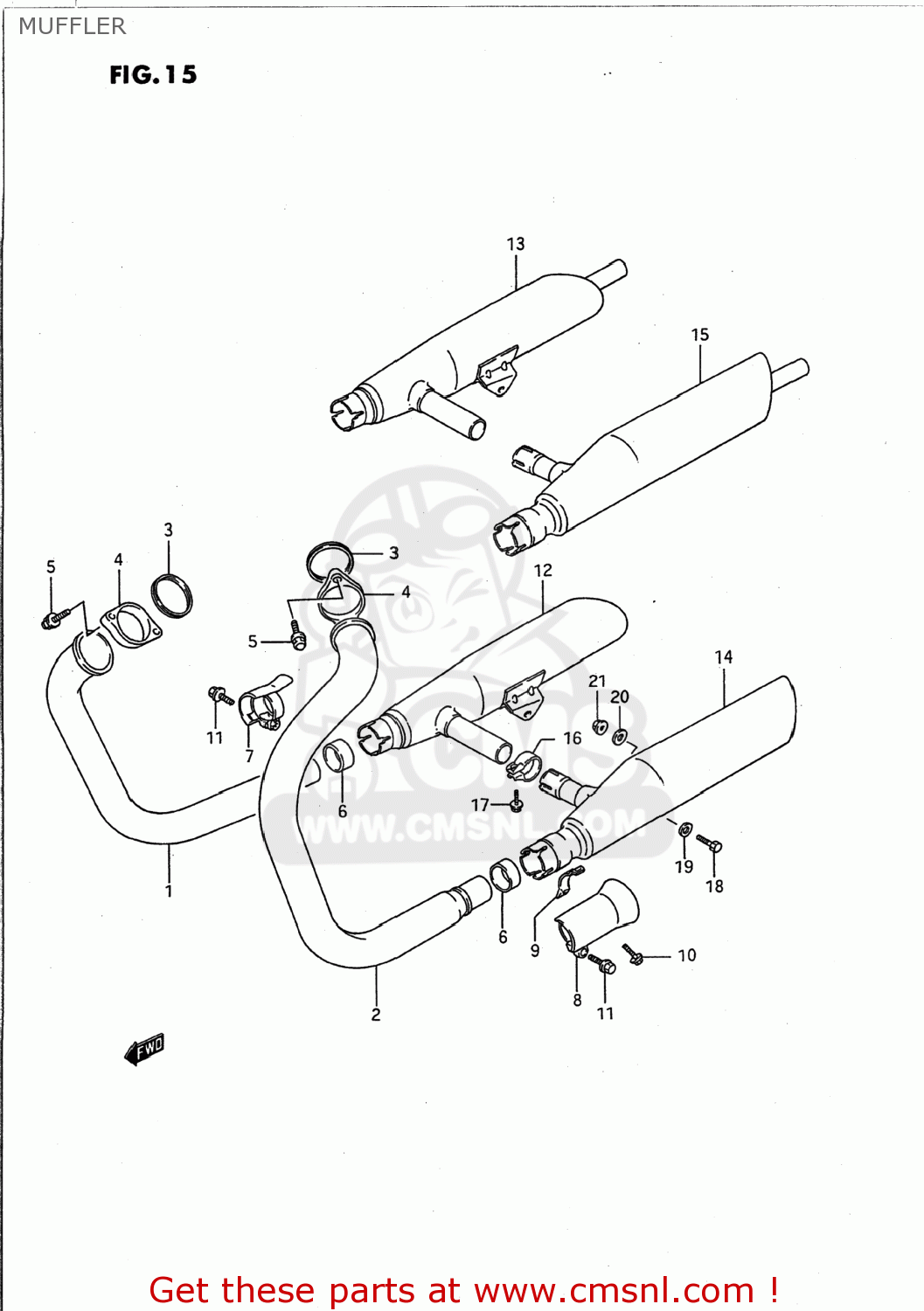

Muffler diagramma VS1400GLP INTRUDER 1988 (J) USA (E03)

MUFFLER VS1400GLP INTRUDER 1988 (J) USA (E03)
MUFFLER VS1400GLP INTRUDER 1988 (J) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
1415038B02
rif: 1-1
14150-38B03
PIPE,EXHAUST R
€ 230.50
1-2
1415038B20
rif: 1-2
14150-38B21
PIPE,EXHAUST,RIGHT
€ 251.00
2-1
1416038B02
rif: 2-1
14160-38B03
PIPE,EXHAUST,LEFT
€ 330.00
2-2
1416038B20
rif: 2-2
14160-38B21
PIPE,EXHAUST
€ 278.50
3
1418145C00
rif: 3
GASKET,EXHAUST PIPE (NAS)
1418145C00
€ 5.50
3A
0154706127
rif: 3A
BOLT
0154706127
€ 2.00
4-1
1418238B00
rif: 4-1
14182-38A02
CLAMP, EXHAUST PIPE
€ 28.50
4-2
1418238A01
rif: 4-2
14182-38A02
CLAMP,EXHAUST PIPE
€ 28.50
5
0910408026
rif: 5
BOLT(8X35)
0910408026
€ 3.50
6-1
1477124B00
rif: 6-1
14771-24B01
CONNECTOR,MUFFLER
1477124B00
€ 28.50
6-2
1477138B00
rif: 6-2
14771-38B01
CONNECTOR,MUFFLER
1477138B00
€ 35.00
6-3
1477138B01
rif: 6-3
CONNECTOR,MUFFLER
1477138B01
€ 35.00
7
1445038B02
rif: 7
CLAMP,CONNECTOR,R
1445038B02
€ 208.50
8
1446038B02
rif: 8
CLAMP,CONNECTOR,L
1446038B02
€ 149.00
9
1478524A00
rif: 9
CLAMP,MUFFLER COVER
1478524A00
€ 50.50
10
0154706207
rif: 10
BOLT
0154706207
€ 1.50
11-1
0910308225
rif: 11-1
09103-08256
BOLT
€ 5.00
11-2
0910308241
rif: 11-2
BOLT(8X35)
0910308241
€ 6.50
12-1
1431038B02H01
rif: 12-1
14310-38B51
BODY,MUFFLER
€ 379.00
12-2
1431038B40H01
rif: 12-2
BODY,MUFFLER,R
1431038B40H01
€ 1,209.00
13-1
1434038B02H01
rif: 13-1
14340-38B51
BODY,MUFFLER
€ 350.50
13-2
1434038B40H01
rif: 13-2
BODY,MUFFLER,L
1434038B40H01
€ 1,181.50
14
1477238B00
rif: 14
CLAMP,EXHAUST COUPLER
1477238B00
€ 8.50
15-1
0151706257
rif: 15-1
01550-06257
BOLT 6X25
€ 1.50
15-2
0155006257
rif: 15-2
BOLT
0155006257
€ 1.50
16
0110708307
rif: 16
01500-08307
BOLT
€ 2.50
17
0832211088
rif: 17
08322-01087
WASHER
0832211088
€ 1.50
17A
0155008307
rif: 17A
BOLT
0155008307
€ 3.50
18
0916008004
rif: 18
09160-08134
WASHER
0916008004
€ 2.50
19-1
0831626088
rif: 19-1
08316-20087
NUT
0831626088
€ 2.50
19-2
0831620087
rif: 19-2
NUT
0831620087
€ 2.50
19-3
0831610083
rif: 19-3
08316-1008B
NUT
0831610083
€ 2.50
