HANDLE SWITCH (MODEL L/M/N/P/R)

VS1400GLP INTRUDER 1988 (J) USA (E03)

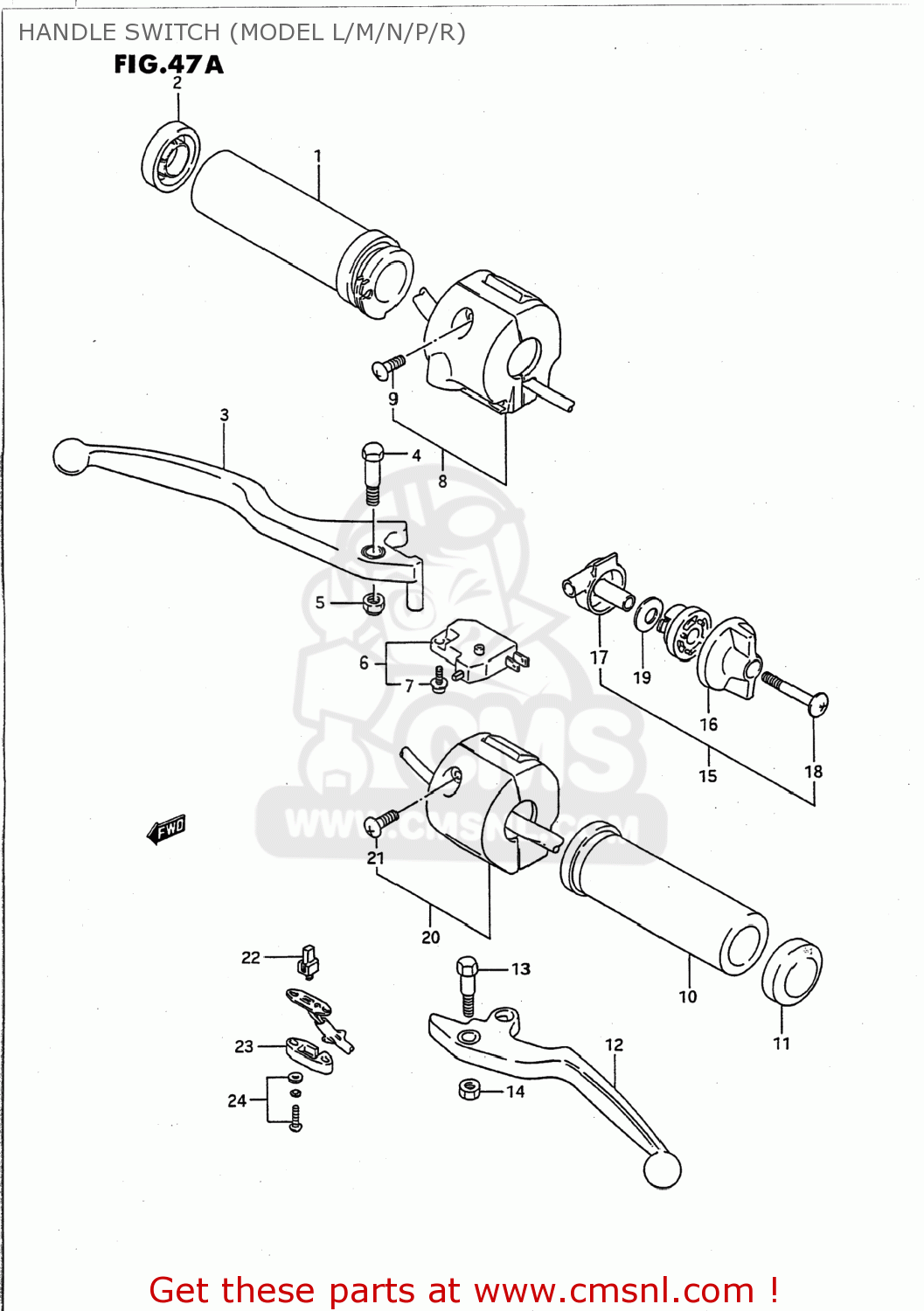

Handle switch (model l/m/n/p/r) diagramma VS1400GLP INTRUDER 1988 (J) USA (E03)

HANDLE SWITCH (MODEL L/M/N/P/R) VS1400GLP INTRUDER 1988 (J) USA (E03)
HANDLE SWITCH (MODEL L/M/N/P/R) VS1400GLP INTRUDER 1988 (J) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
5711038A02
rif: 1
GRIP,THROTTLE
5711038A02
€ 32.00
2
5721638A00
rif: 2
CAP,GRIP END
5721638A00
€ 5.50
3
5742038B10
rif: 3
LEVER,BRAKE
5742038B10
€ 43.50
4-1
5743138A00
rif: 4-1
57431-38A10
BOLT,LEVER
€ 13.50
4-2
5743138A10
rif: 4-2
BOLT,LEVER SET
5743138A10
€ 13.50
5
0831921068
rif: 5
08319-2106A
NUT 6MM
0831921068
€ 1.50
6
5746017C00
rif: 6
57460-17C01
SWITCH ASSEMBLY,STOP
5746017C00
€ 28.00
7
5746517C00
rif: 7
SCREW
5746517C00
€ 1.50
8
3720038B80
rif: 8
SWITCH ASSY,HANDLE,R
3720038B80
€ 164.00
9
3739138A00
rif: 9
02112-05167
SCREW
€ 1.50
10
5721038A02
rif: 10
GRIP,L
5721038A02
€ 44.00
11
5721638A00
rif: 11
CAP,GRIP END
5721638A00
€ 5.50
12-1
5762038B00
rif: 12-1
57621-38B01
LEVER,CLUTCH
5762038B00
€ 50.00
12-2
5762138B01
rif: 12-2
LEVER,CLUTCH
5762138B01
€ 50.00
13-1
5743138A00
rif: 13-1
57431-38A10
BOLT,LEVER
€ 13.50
13-2
5743138A10
rif: 13-2
BOLT,LEVER SET
5743138A10
€ 13.50
14
0831921068
rif: 14
08319-2106A
NUT 6MM
0831921068
€ 1.50
15
5870038B00
rif: 15
58700-38B02
LEVER ASSEMBLY,STARTER
5870038B00
€ 52.50
16
5872138B00
rif: 16
58700-38B02
CLAMP,REAR BRAKE CABLE
€ 52.50
17
5872338B00
rif: 17
BODY,STARTER
€ 12.50
18
5872538B00
rif: 18
SCREW,STARTER LEVER(6X45)
5872538B00
€ 6.50
19
5872202310
rif: 19
WASHER
5872202310
€ 2.50
20
3740038B80
rif: 20
SWITCH ASSY,HANDLE,L
3740038B80
€ 228.50
21
3739138A00
rif: 21
02112-05167
SCREW
€ 1.50
22
5746518601
rif: 22
CONTACT,SWITCH
5746518601
€ 3.00
23
5748138A10
rif: 23
COVER,CLUTCH SWITCH
5748138A10
€ 14.00
24
5748438A00
rif: 24
SCREW
5748438A00
€ 5.50
