FUEL COCK

VS1400GLP INTRUDER 1988 (J) USA (E03)

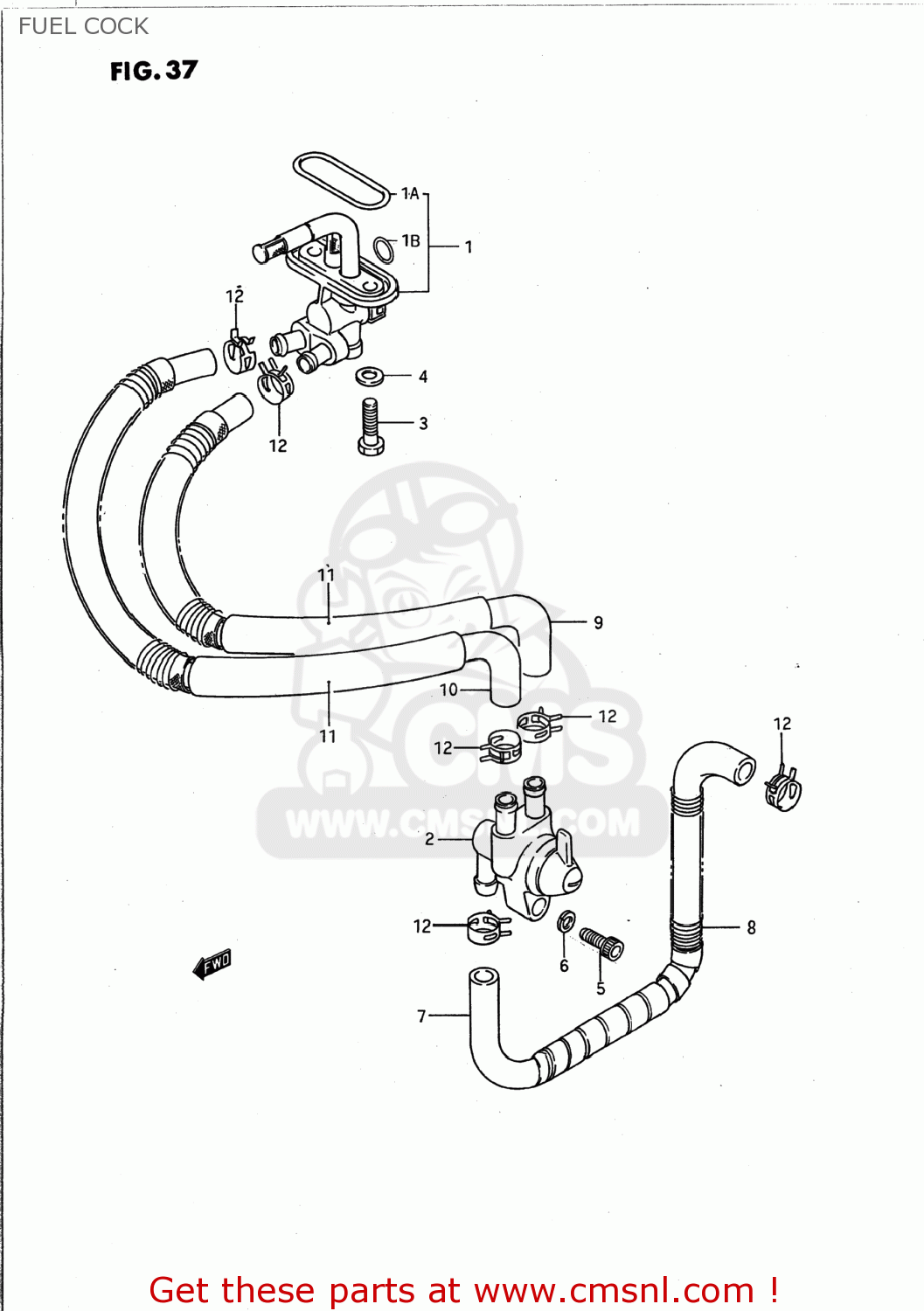

Fuel cock diagramma VS1400GLP INTRUDER 1988 (J) USA (E03)

FUEL COCK VS1400GLP INTRUDER 1988 (J) USA (E03)
FUEL COCK VS1400GLP INTRUDER 1988 (J) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1A
4434828070
rif: 1A
O RING,FUEL COCK
4434828070
€ 4.00
1B
4435312C00
rif: 1B
44353-12C01
O-RING,LEVER
€ 7.00
1-1
4430038B01
rif: 1-1
44300-38B02
COCK ASSEMBLY,FUEL
€ 129.50
1-2
4430038B02
rif: 1-2
COCK ASSY,FUEL
4430038B02
€ 129.50
2-1
4430038B10
rif: 2-1
44300-38B13
COCK ASSEMBLY,FUEL
4430038B10
€ 159.50
2-2
4430038B12
rif: 2-2
44300-38B13
COCK ASSEMBLY,FUEL
€ 159.50
3
0912806006
rif: 3
09128-06057
BOLT(6X20)
0912806006
€ 1.50
4
0916806026
rif: 4
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 2.50
5-1
0713005127
rif: 5-1
BOLT
€ 2.00
5-2
0713005123
rif: 5-2
07130-0512B
BOLT
€ 2.00
6-1
0832101057
rif: 6-1
08321-0105A
WASHER,LOCK
0832101057
€ 2.00
6-2
0832101053
rif: 6-2
08321-0105A
LOCK,WASHER
€ 2.50
7
4442038B01
rif: 7
44420-38BR0
HOSE COMP,FUEL PUMP &
€ 18.50
8
0944014026
rif: 8
SPRING
0944014026
€ 8.50
9-1
4443038B01
rif: 9-1
44430-38BR0
HOSE,FUEL
€ 24.00
9-2
4443038B03
rif: 9-2
44430-38BR0
HOSE,FUEL
4443038B03
€ 24.00
10-1
4443038B10
rif: 10-1
44430-38BR0
HOSE,FUEL
€ 24.00
10-2
4443038B12
rif: 10-2
44430-38BS0
HOSE,FUEL NO.2
4443038B12
€ 46.50
10-3
4443038B03
rif: 10-3
44430-38BR0
HOSE,FUEL
4443038B03
€ 24.00
10-4
4443038B20
rif: 10-4
44430-38BR0
HOSE,FUEL
€ 24.00
11-1
4431038B00
rif: 11-1
44311-17E01
TUBE, FUEL HOSE
€ 14.00
11-2
4431138B02
rif: 11-2
44311-17E01
TUBE, INTERFERENCE HOSE
4431138B02
€ 14.00
11-3
4442338B00
rif: 11-3
44423-44B00
SHIELD,FUEL HOSE HEATER
€ 13.50
11-4
4431038B10
rif: 11-4
44311-17E01
TUBE, FUEL HOSE
€ 14.00
12-1
0940112406
rif: 12-1
09401-11415
CLAMP
€ 2.00
12-2
0940111407
rif: 12-2
09401-11415
CLIP
0940111407
€ 2.00
