STARTER CLUTCH

LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

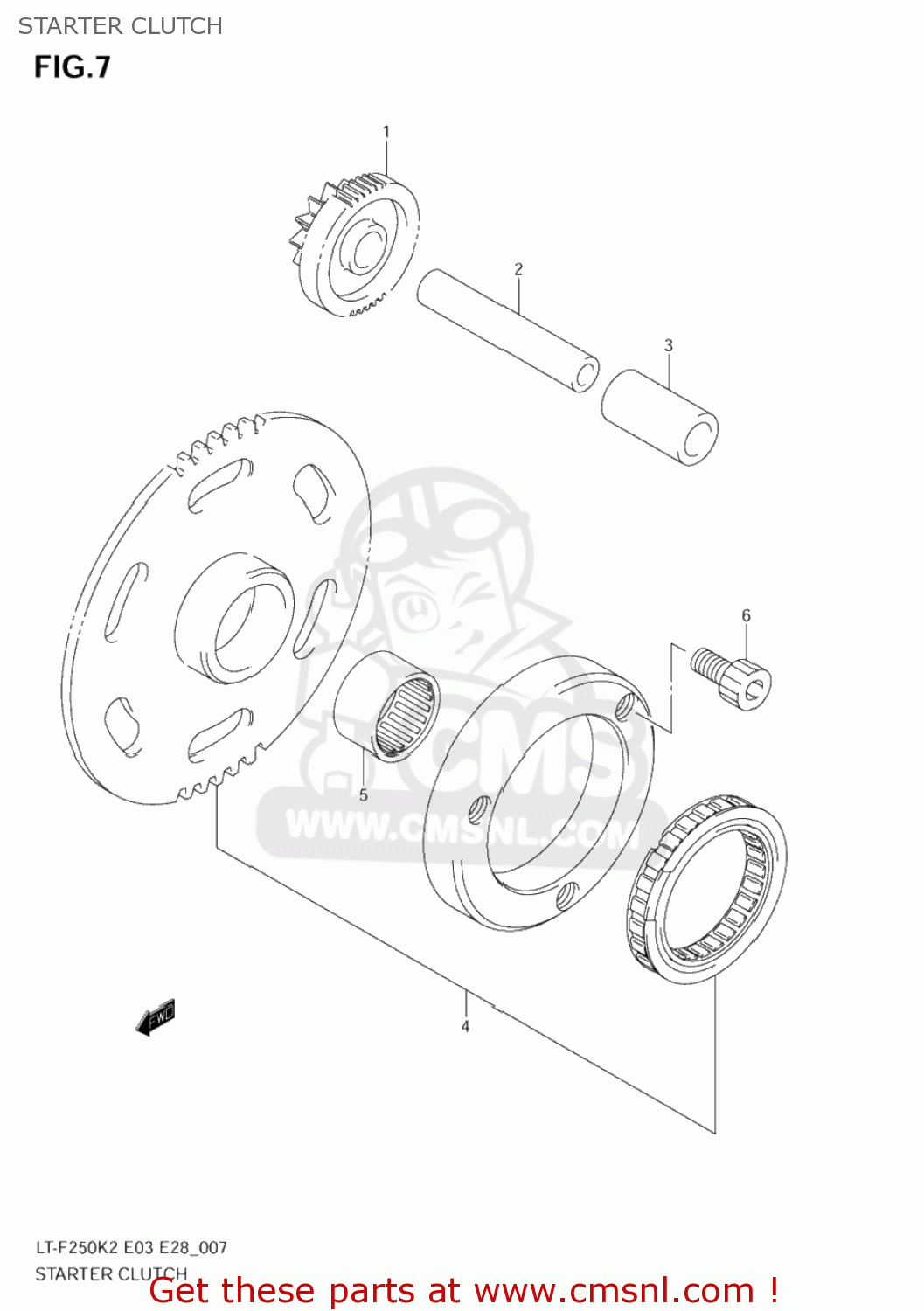

Starter clutch diagramma LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

STARTER CLUTCH LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

1261119B02
rif: 1

GEAR,STARTER IDLE

€ 47.50

2

0920613016
rif: 2

PIN(7.4X13X72)

€ 11.00

3

0918013009
rif: 3

SPACER(13X19X32.8)

€ 15.50

4

1260016830
rif: 4

CLUTCH SET,STARTER

€ 223.00

5

0926325049
rif: 5

BEARING(25X31X19)

€ 19.00

6

0910608095
rif: 6

BOLT(8X16)

€ 2.50
