CLUTCH (MODEL K3)

LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

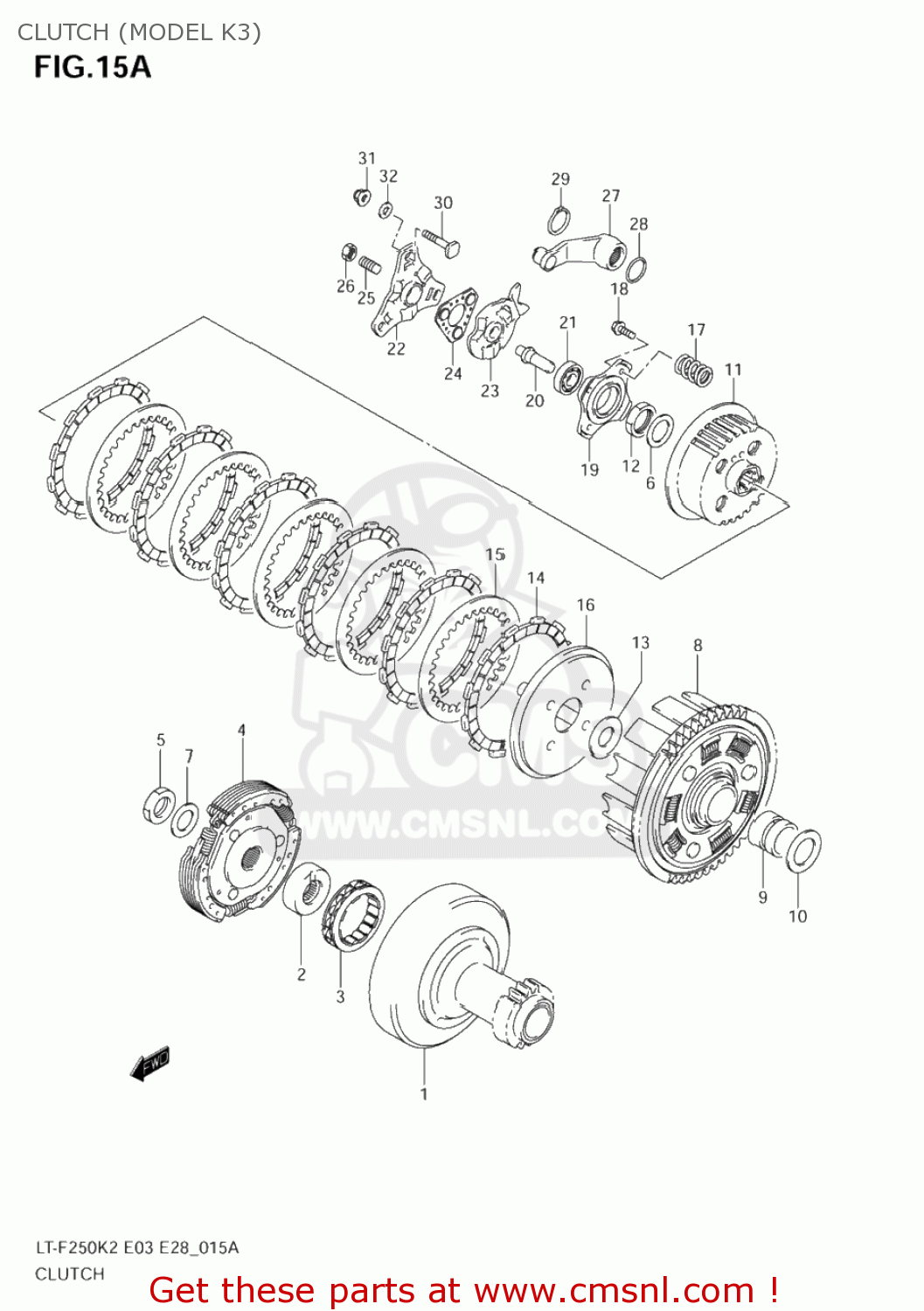

Clutch (model k3) diagramma LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

CLUTCH (MODEL K3) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
CLUTCH (MODEL K3) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
2111005G00
rif: 1
GEAR,PRIMARY DRIVE(NT:20)
2111005G00
€ 113.50
2
2163119B11
rif: 2
RACE,ONE WAY CLUTCH
€ 22.00
3
2127319B10
rif: 3
CLUTCH ASSY,ONE WAY
2127319B10
€ 97.00
4
2150005G00
rif: 4
21500-05G10
CLUTCH ASSY,SHOE
€ 197.50
5
0914018012
rif: 5
NUT
0914018012
€ 6.50
6
0916420007
rif: 6
WASHER
0916420007
€ 3.50
7
0916418007
rif: 7
09164-18001
WASHER
0916418007
€ 3.00
8
2120005G00
rif: 8
GEAR ASSY,PRIMARY
2120005G00
€ 189.00
9
0918022035
rif: 9
SPACER(22X28X23)
0918022035
€ 15.50
10
0918122251
rif: 10
SHIM(22X36X1)
0918122251
€ 3.50
11
2141005G00
rif: 11
HUB,CLUTCH SLEEVE
2141005G00
€ 71.50
12
0914020001
rif: 12
NUT
0914020001
€ 3.00
13
0821120323
rif: 13
WASHER
0821120323
€ 2.50
14
2144122A01
rif: 14
PLATE,CLUTCH DRIVE (NAS)
2144122A01
€ 10.50
15
2145111900
rif: 15
21451-01B40
PLATE,CLUTCH DRIVEN (NAS)
2145111900
€ 4.50
16
2146224501
rif: 16
DISC,CLUTCH PRESSURE
2146224501
€ 35.50
17
2141305G10
rif: 17
SPRING,CLUTCH
2141305G10
€ 5.00
18
0155006203
rif: 18
01550-0620A
BOLT
0155006203
€ 1.50
19
2146524500
rif: 19
PLATE,RELEASE
2146524500
€ 10.00
20
2312105G00
rif: 20
PIECE,CLUTCH PUSH
€ 15.00
21
0926212001
rif: 21
BEARING(12X28X8)
0926212001
€ 12.00
22
2323105G20
rif: 22
23231-05G21
GUIDE,CL RELEASE OUTER BALL
€ 17.00
23
2321105G20
rif: 23
23211-05G21
GUIDE,CL RELEASE INNER BALL
€ 23.50
24
2325031003
rif: 24
BALL,CLUTCH RELEASE
2325031003
€ 21.50
25
0913408009
rif: 25
SCREW(8X19.5)
0913408009
€ 3.50
26
0914008021
rif: 26
NUT
0914008021
€ 2.00
27
2322005G20
rif: 27
ARM,CLUTCH RELEASE
2322005G20
€ 70.50
28
0821110243
rif: 28
WASHER
0821110243
€ 2.00
29
0833131146
rif: 29
08331-3114A
CIRCLIP
0833131146
€ 1.50
30
0911906103
rif: 30
BOLT
€ 2.50
31
0831320063
rif: 31
08313-2006A
NUT
0831320063
€ 2.00
32
0916806023
rif: 32
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 1.50
