CARBURETOR

LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

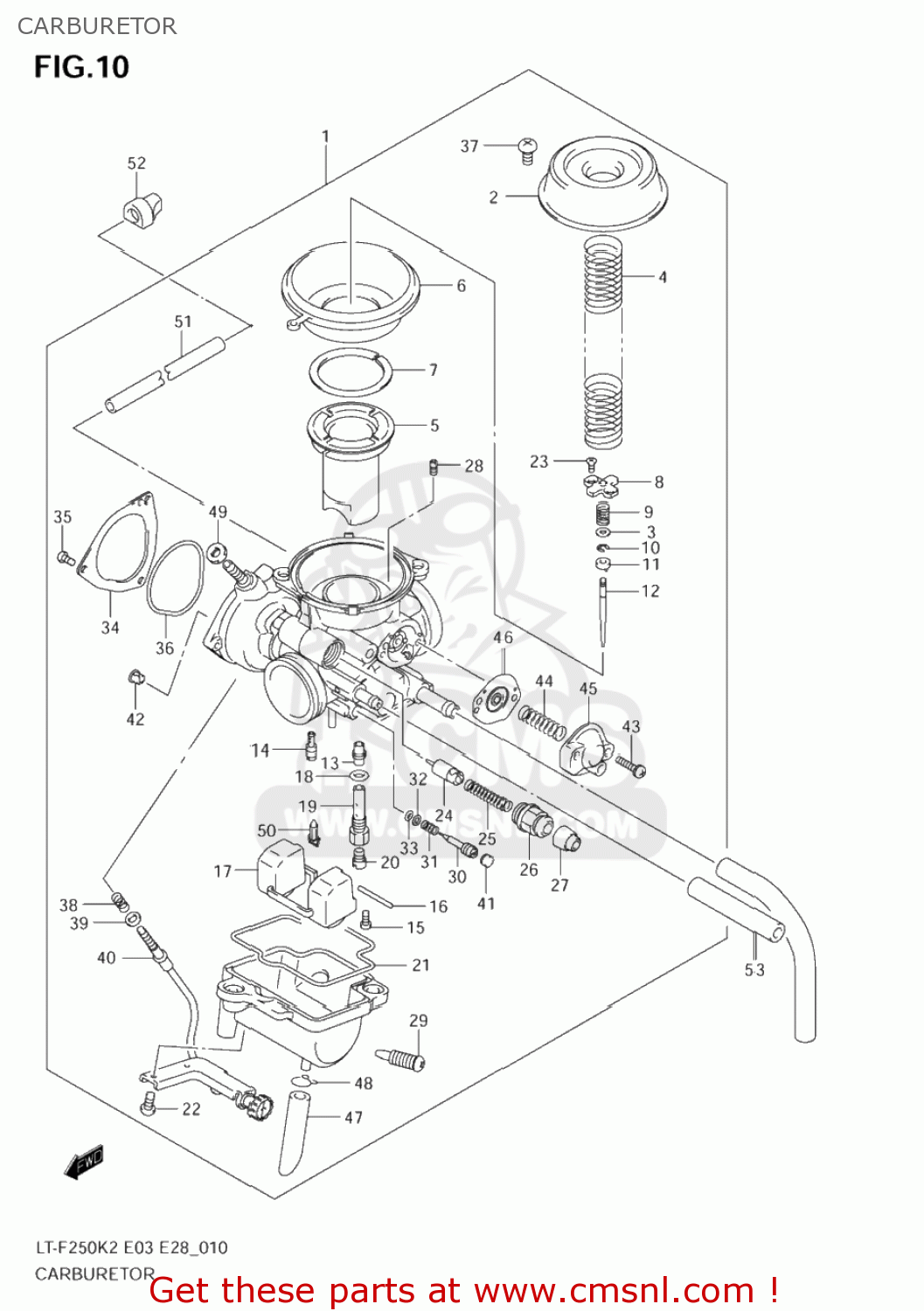

Carburetor diagramma LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

CARBURETOR LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
CARBURETOR LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
1320005G00
rif: 1-1
CARBURETOR ASS
€ 334.50
1-2
1320005G10
rif: 1-2
CARBURETOR ASSY
€ 351.50
2
1350205F00
rif: 2
COVER,DIAPHRAGM
€ 19.50
3
1338246E00
rif: 3
WASHER
1338246E00
€ 3.00
4
1350305G00
rif: 4
SPRING
1350305G00
€ 9.00
5
1350005F10
rif: 5
VALVE ASSY,PISTON
€ 54.00
6
1350705G00
rif: 6
DIAPHRAGM
1350705G00
€ 21.00
7
1350416E00
rif: 7
RING
1350416E00
€ 4.00
8
1358105F00
rif: 8
PLATE
1358105F00
€ 5.00
9
1338820E20
rif: 9
SPRING
1338820E20
€ 3.00
10
1339417E60
rif: 10
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
11
1357405F00
rif: 11
RING
1357405F00
€ 4.50
12
1338305G00
rif: 12
JET,NEEDLE(4DJ24-1)
€ 12.50
13
0949400921
rif: 13
JET,NEEDLE(P-0M)
0949400921
€ 42.00
14
0949217006
rif: 14
JET,PILOT(17.5)
0949217006
€ 7.50
15
0211204083
rif: 15
02112-0408A
SCREW
€ 2.00
16
1325420010
rif: 16
PIN,FLOAT
1325420010
€ 3.00
17
1324047E00
rif: 17
FLOAT ASSY
1324047E00
€ 20.00
18
1324643010
rif: 18
O RING
1324643010
€ 3.00
19
1334205G00
rif: 19
JET,HOLDER
€ 15.00
20
0949127014
rif: 20
JET,MAIN(137.5)
€ 8.50
21
1325147E00
rif: 21
GASKET,FLOAT BODY
1325147E00
€ 6.00
22
1360105148
rif: 22
13601-05148-XC0
SCREW(5X14)
1360105148
€ 3.50
23
1360305F00
rif: 23
SCREW
1360305F00
€ 2.00
24
1341105G00
rif: 24
PLUNGER ASSY
1341105G00
€ 19.50
25
1341737200
rif: 25
SPRING
1341737200
€ 3.00
26
1341843410
rif: 26
HOLDER,GUIDE
1341843410
€ 5.50
27
1368104010
rif: 27
CAP
1368104010
€ 3.00
28
0949334003
rif: 28
JET,PILOT AIR(170)
0949334003
€ 10.50
29
1324713A00
rif: 29
13247-02340
SCREW,DRAIN
1324713A00
€ 4.50
30
1327948F00
rif: 30
ADJUSTER
1327948F00
€ 10.00
31
1326847070
rif: 31
SPRING
1326847070
€ 4.00
32
1329129900
rif: 32
WASHER
1329129900
€ 1.50
33
1329529900
rif: 33
O RING,PILOT AIR SCREW
1329529900
€ 3.50
34
1350202C10
rif: 34
COVER,THROTTLE
1350202C10
€ 11.00
35
0211204063
rif: 35
02112-0406B
SCREW 4X6
0211204063
€ 2.00
36
1367320B00
rif: 36
O RING
1367320B00
€ 6.00
37
0211205087
rif: 37
SCREW
0211205087
€ 1.50
38
1326803110
rif: 38
SPRING,THROTTLE SCREW
1326803110
€ 3.50
39
1361505G00
rif: 39
WASHER
1361505G00
€ 2.50
40
1357705G00
rif: 40
CABLE ADJUSTER ASSY
€ 51.50
41-1
1328205G00
rif: 41-1
CAP
€ 5.50
41-2
1328105A00
rif: 41-2
PLUG
1328105A00
€ 3.50
42
1357905G00
rif: 42
CABLE,GUIDE
1357905G00
€ 6.00
43
1360104148
rif: 43
SCREW
1360104148
€ 2.50
44
1327113F00
rif: 44
SPRING
1327113F00
€ 4.00
45
1350210F00
rif: 45
COVER ASSY
1350210F00
€ 24.50
46
13480055A0
rif: 46
DIAPHRAGM ASSY
13480055A0
€ 13.50
47
1368438D00
rif: 47
HOSE
1368438D00
€ 5.00
48
1352998010
rif: 48
CLIP
1352998010
€ 2.00
49
1360798410
rif: 49
NUT
€ 5.00
50
1337047E00
rif: 50
VALVE ASSY,NEEDLE
1337047E00
€ 38.00
51
0935465113600
rif: 51
HOSE(6.5X11.5X600)
0935465113600
€ 26.50
52
1369905G00
rif: 52
CAP,AIR VEN HOSE
1369905G00
€ 6.50
53
0935550105600
rif: 53
44421-13ER0
HOSE(5X10X600)
€ 7.50
