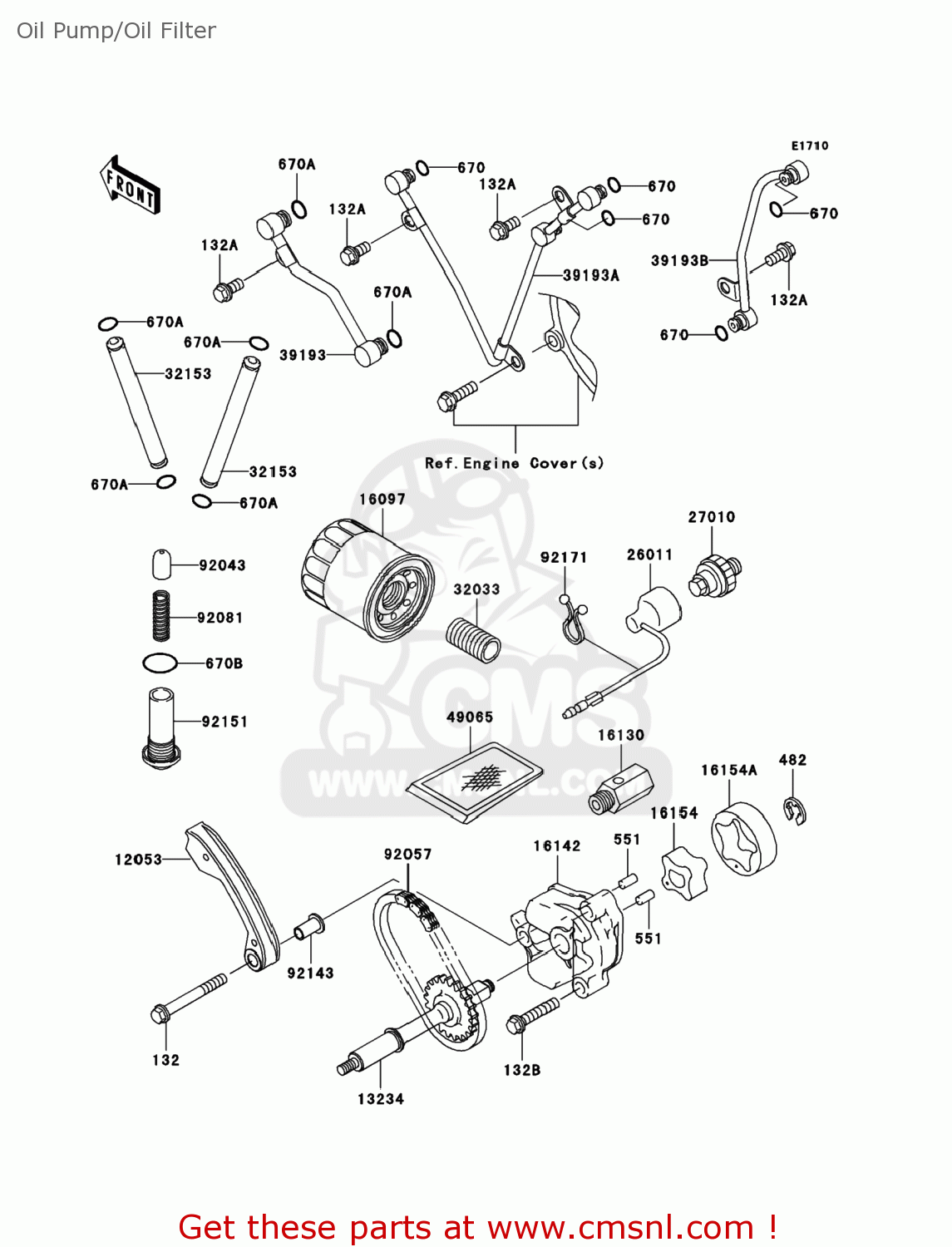

Oil Pump/Oil Filter

rif

parte #

descrizione

quantità

12053

120531440
rif: 12053

GUIDE-CHAIN

€ 35.00

132

132J0650
rif: 132

BOLT-FLANGED-SMALL

€ 2.50

13234

132341112
rif: 13234

SHAFT-COMP,OIL PUMP

€ 82.50

132A

132Y0612
rif: 132A

BOLT-FLANGED-SMALL

€ 1.50

132B

132Y0630
rif: 132B

BOLT-FLANGED-SMALL

€ 2.00

16097

160971072
rif: 16097

FILTER-ASSY-OIL

€ 10.00

16130

161301058
rif: 16130

VALVE-ASSY-RELIEF

€ 28.00

16142

161421162
rif: 16142

COVER-PUMP

€ 25.50

16154

161542059
rif: 16154

ROTOR-PUMP,INNER

€ 5.50

16154A

161542060
rif: 16154A

ROTOR-PUMP,OUTER

€ 7.50

26011

260111755
rif: 26011

WIRE-LEAD

€ 14.50

27010

270101313
rif: 27010

SWITCH,OIL PRESSURE

€ 26.00

32033

320331535
rif: 32033

PIPE

€ 8.00

32153

321531189
rif: 32153

PIPE

€ 5.50

39193

391931052
rif: 39193

PIPE-OIL,CRANKSHAFT

€ 40.50

39193A

391931053
rif: 39193A

PIPE-OIL,CRANKCASE,LH

€ 107.00

39193B

391931054
rif: 39193B

PIPE-OIL,CRANKCASE,RH

€ 42.50

482

482J6000
rif: 482

CIRCLIP-TYPE-E,6MM

€ 0.50

49065

490651086
rif: 49065

FILTER-OIL

€ 9.50

551

551A0408
rif: 551

PIN-DOWEL,4X8

€ 0.50

670

670D1505
rif: 670

O RING

€ 2.50

670A

670D1507
rif: 670A

O RING,7MM

€ 1.00

670B

670D2016
rif: 670B

O RING,16MM

€ 1.00

92043

92043076
rif: 92043

PIN-NEUTRAL PISTON

€ 7.50

92057

920571486
rif: 92057

CHAIN

€ 15.50

92081

92081112
rif: 92081

SPRING

€ 3.50

92143

921431857
rif: 92143

COLLAR

€ 2.00

92151

921511781
rif: 92151

BOLT

€ 20.50

92171

921711329
rif: 92171

CLAMP

€ 1.50
