Fuel Tank

KVF700-D1 PRAIRIE700 2005 USA / 4X4

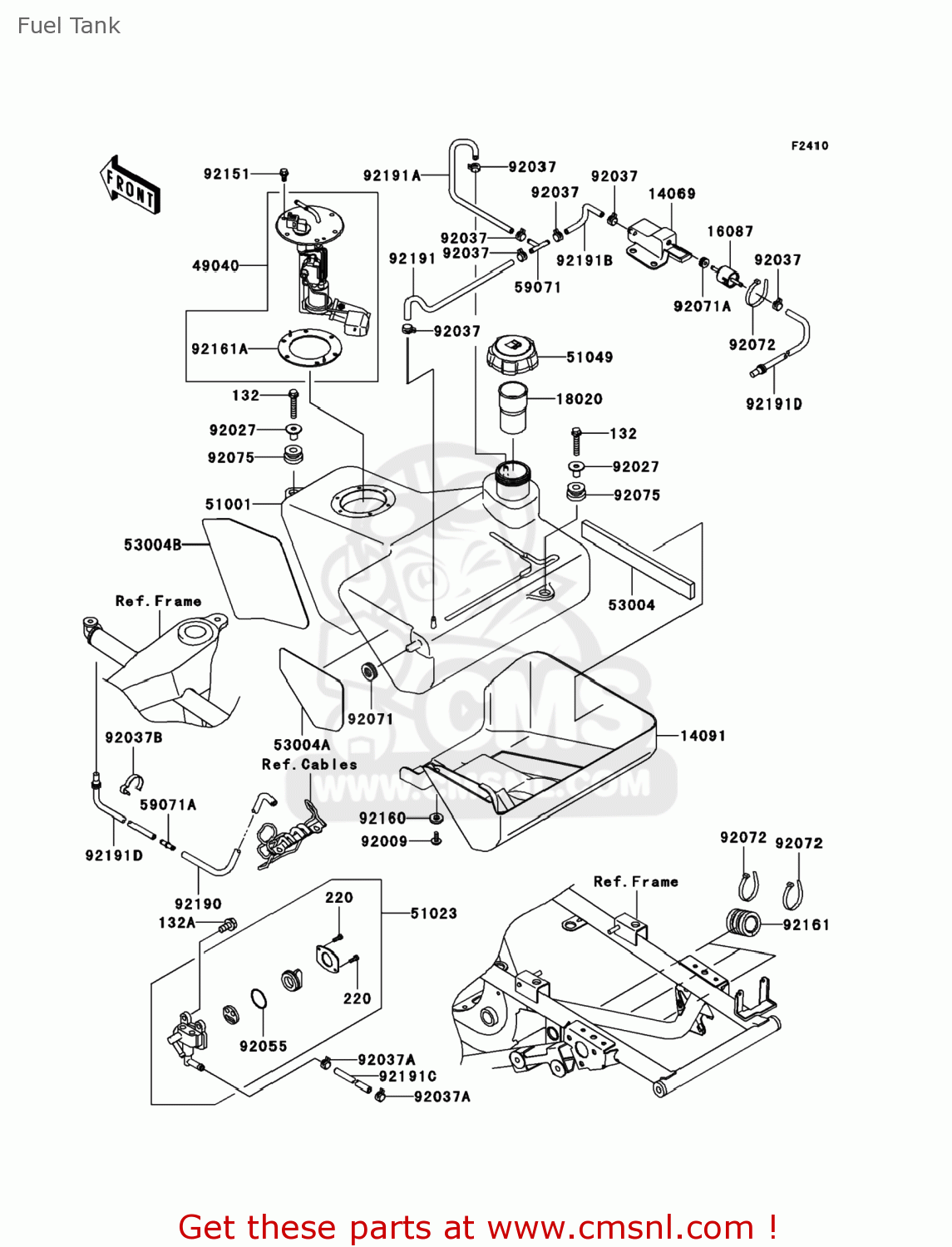

Fuel tank diagramma KVF700-D1 PRAIRIE700 2005 USA / 4X4

Fuel Tank KVF700-D1 PRAIRIE700 2005 USA / 4X4
Fuel Tank KVF700-D1 PRAIRIE700 2005 USA / 4X4
i prezzi sono in EUR
rif
parte #
descrizione
quantità
132
132G0630
rif: 132
BOLT-FLANGED-SMALL
132G0630
€ 1.50
132A
132J0612
rif: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
14069
140691069
rif: 14069
BREATHER,TANK
€ 19.50
14091
140911404
rif: 14091
COVER,FUEL TANK
€ 80.00
16087
160871054
rif: 16087
VALVE-CHECK
160871054
€ 36.50
18020
180201278
rif: 18020
BAFFLE,FUEL TANK CAP
€ 11.00
220
220B0308
rif: 220
SCREW-PAN-CROS
220B0308
€ 0.50
49040
490400006
rif: 49040
PUMP-FUEL
490400006
€ 1,002.00
51001
510011638
rif: 51001
TANK-COMP-FUEL
510011638
€ 319.50
51023
510230002
rif: 51023
TAP-ASSY,FUEL
510230002
€ 86.00
51049
510491128
rif: 51049
CAP-TANK,FUEL
510491128
€ 49.00
53004
530041161
rif: 53004
MAT
€ 5.00
53004A
530041164
rif: 53004A
MAT,FUEL TANK
€ 10.50
53004B
530041165
rif: 53004B
MAT,FUEL TANK
€ 9.50
59071
590713705
rif: 59071
JOINT
€ 3.00
59071A
590713717
rif: 59071A
JOINT
€ 2.00
92009
920091480
rif: 92009
SCREW
920091480
€ 1.50
92027
920271847
rif: 92027
COLLAR,6=16.1
920271847
€ 4.00
92037
920371461
rif: 92037
CLAMP,TUBE
920371461
€ 1.00
92037A
920371505
rif: 92037A
CLAMP,TUBE
920371505
€ 3.00
92037B
920371552
rif: 92037B
CLAMP
920371552
€ 6.00
92055
920550017
rif: 92055
RING-O
€ 1.50
92071
920711249
rif: 92071
GROMMET,AIR SUCTION V
€ 2.50
92071A
920711266
rif: 92071A
GROMMET
€ 3.00
92072
920721239
rif: 92072
BAND,L=188
920721239
€ 1.50
92075
920751787
rif: 92075
DAMPER
920751787
€ 4.00
92151
921511754
rif: 92151
BOLT,FLANGED,5X11.5
€ 1.00
92160
921601017
rif: 92160
DAMPER
921601017
€ 3.00
92161
921611111
rif: 92161
DAMPER,FUEL TANK,RR
€ 6.50
92161A
921611272
rif: 92161A
DAMPER,FUEL PUMP
€ 9.00
92190
921901256
rif: 92190
TUBE
921901256
€ 4.00
92191
921911639
rif: 92191
TUBE,TANK-FRONT
€ 7.00
92191A
921911640
rif: 92191A
TUBE,TANK-REAR
€ 7.50
92191B
921911641
rif: 92191B
TUBE,5X9X160
€ 2.50
92191C
921911665
rif: 92191C
TUBE,5.3X10.5X425
€ 7.50
92191D
921911666
rif: 92191D
TUBE,TANK BREATHER
€ 7.00
