Front Fender(s)

KVF700-D1 PRAIRIE700 2005 USA / 4X4

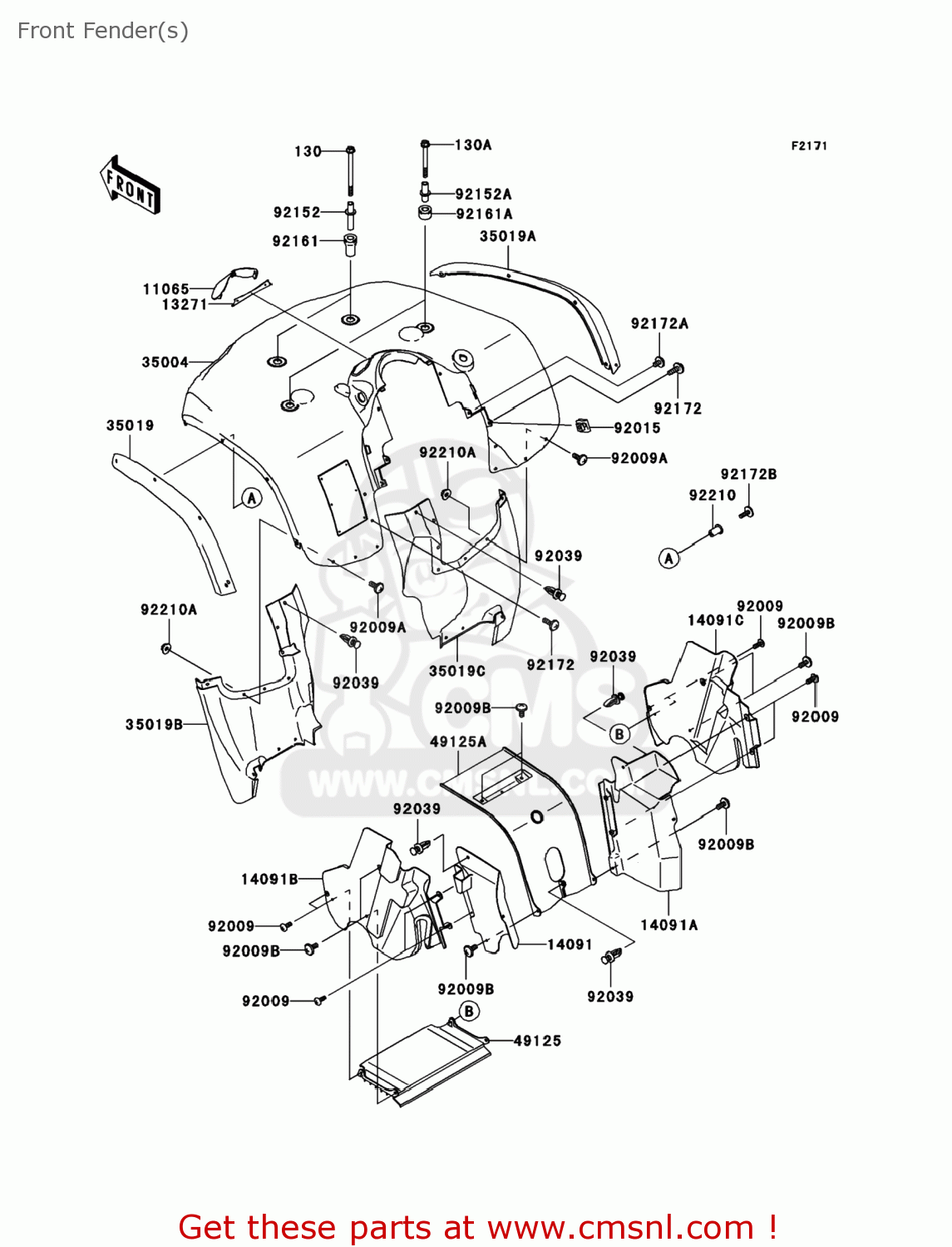

Front fender(s) diagramma KVF700-D1 PRAIRIE700 2005 USA / 4X4

Front Fender(s) KVF700-D1 PRAIRIE700 2005 USA / 4X4
Front Fender(s) KVF700-D1 PRAIRIE700 2005 USA / 4X4
i prezzi sono in EUR
rif
parte #
descrizione
quantità
11065
110651204290
rif: 11065
CAP,FR FENDER,L.GREEN
€ 6.50
130
130S08105
rif: 130
BOLT-FLANGED
€ 2.50
130A
130S0875
rif: 130A
BOLT-FLANGED
€ 2.00
13271
132711640
rif: 13271
PLATE,FR FENDER CAP
132711640
€ 4.00
14091
140911282
rif: 14091
COVER,SIDE,RR,LH
€ 16.00
14091A
140911283
rif: 14091A
COVER,SIDE,RR,RH
€ 16.00
14091B
140911428
rif: 14091B
COVER,SIDE,FR,LH
€ 19.00
14091C
140911429
rif: 14091C
COVER,SIDE,FR,RH
€ 19.00
35004
350041452290
rif: 35004
FENDER-FRONT,L.GREEN
€ 175.50
35019
3501913656Z
rif: 35019
FLAP,FR,SIDE,LH,F.BLA
3501913656Z
€ 24.00
35019A
3501913666Z
rif: 35019A
FLAP,FR,SIDE,RH,F.BLA
3501913666Z
€ 24.00
35019B
3501913916Z
rif: 35019B
FLAP,FR,RR,LH,F.BLACK
3501913916Z
€ 40.00
35019C
3501913926Z
rif: 35019C
FLAP,FR,RR,RH,F.BLACK
3501913926Z
€ 40.00
49125
491250006
rif: 49125
SHROUD,FR,LWR
€ 18.00
49125A
491251081
rif: 49125A
SHROUD,FR,UPP
€ 25.50
92009
920091197
rif: 92009
SCREW
920091197
€ 2.50
92009A
920091621
rif: 92009A
SCREW
920091621
€ 1.50
92009B
920091662
rif: 92009B
SCREW
920091662
€ 2.50
92015
920151678
rif: 92015
NUT
920151678
€ 3.50
92039
920391229
rif: 92039
RIVET
920391229
€ 1.50
92152
921520025
rif: 92152
COLLAR,L=90
€ 10.00
92152A
921520026
rif: 92152A
COLLAR,L=60.7
€ 7.00
92161
921610035
rif: 92161
DAMPER,L=58.5
€ 9.00
92161A
921611166
rif: 92161A
DAMPER,L=25.5
921611166
€ 5.50
92172
921720002
rif: 92172
SCREW,6X18
921720002
€ 1.50
92172A
921720005
rif: 92172A
SCREW,6X10
921720005
€ 1.50
92172B
921721063
rif: 92172B
SCREW,5X18
€ 2.00
92210
922100012
rif: 92210
NUT,POP,5MM
922100012
€ 2.00
92210A
922101368
rif: 92210A
NUT,6MM
922101368
€ 1.50
