Taillight(s)

KVF650-B1 PRAIRIE650 2002 USA

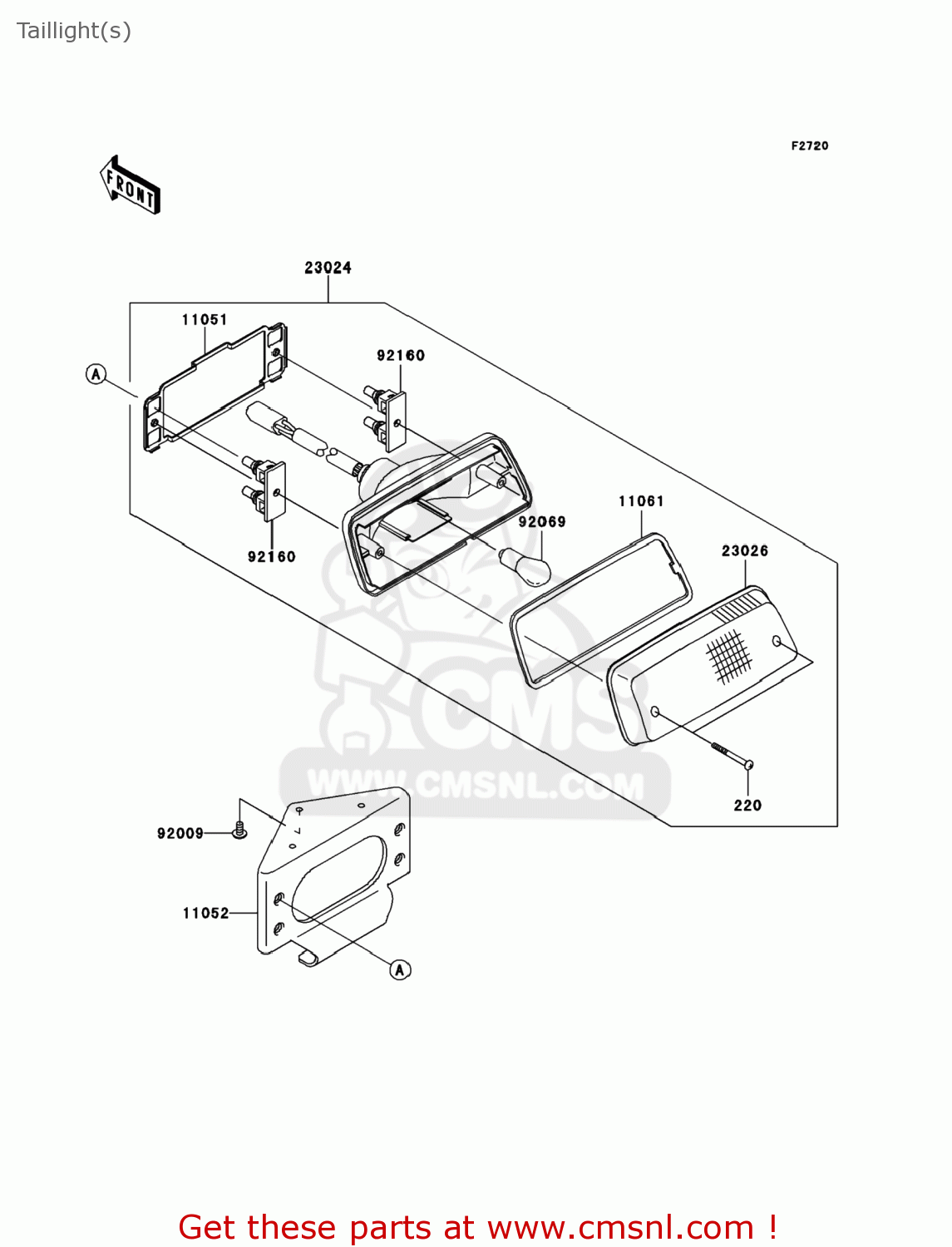

Taillight(s) diagramma KVF650-B1 PRAIRIE650 2002 USA

Taillight(s) KVF650-B1 PRAIRIE650 2002 USA
Taillight(s) KVF650-B1 PRAIRIE650 2002 USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
11051
110511870
rif: 11051
BRACKET,TAIL LAMP
110511870
€ 8.50
11052
110521360
rif: 11052
BRACKET,TAIL LAMP
110521360
€ 5.50
11061
110610055
rif: 11061
GASKET,TAIL LAMP LENS (NAS)
110610055
€ 3.00
220
220B0440
rif: 220
SCREW-PAN-CROS
220B0440
€ 2.00
23024
230241130
rif: 23024
LAMP-ASSY-TAIL
230241130
€ 123.00
23026
230261230
rif: 23026
LENS,TAIL LAMP
230261230
€ 20.00
92009
920091332
rif: 92009
SCREW,TAPPING,5X10
920091332
€ 2.50
92069
92069063
rif: 92069
BULB 12V 21/5W
92069063
€ 4.50
92160
921601053
rif: 92160
DAMPER,TAIL LAMP
921601053
€ 4.00
