Headlight(s)

KVF650-B1 PRAIRIE650 2002 USA

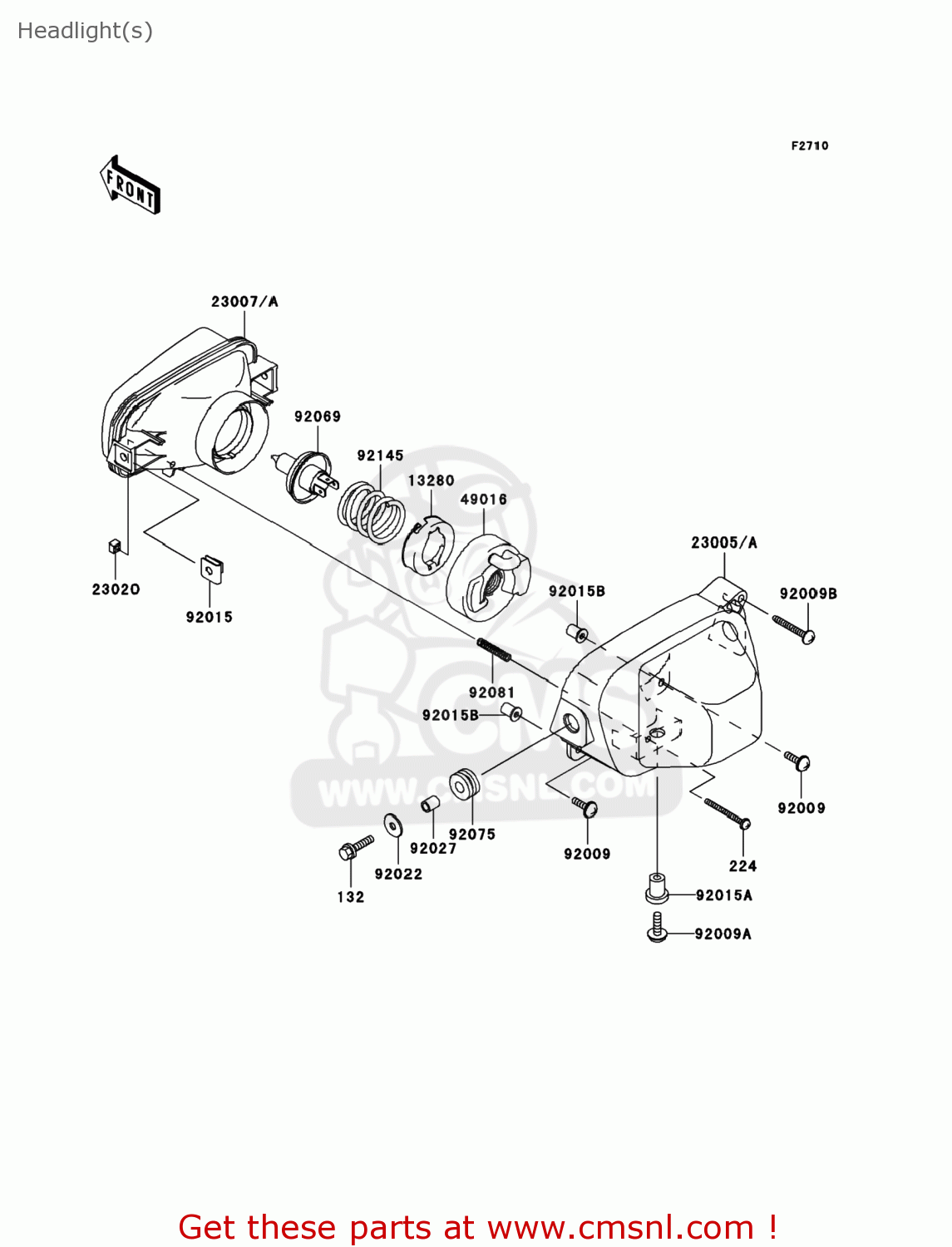

Headlight(s) diagramma KVF650-B1 PRAIRIE650 2002 USA

Headlight(s) KVF650-B1 PRAIRIE650 2002 USA
Headlight(s) KVF650-B1 PRAIRIE650 2002 USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
132
132H0625
rif: 132
BOLT-FLANGED-SMALL,6X
132H0625
€ 1.50
13280
132801198
rif: 13280
HOLDER,BULB SETTING
€ 6.00
224
224D0445
rif: 224
SCREW-PAN-WP-CROS
224D0445
€ 1.00
23005
230051180
rif: 23005
BODY-COMP-HEAD LAMP,L
230051180
€ 34.00
23005A
230051181
rif: 23005A
BODY-COMP-HEAD LAMP,R
230051181
€ 34.00
23007
230071389
rif: 23007
LENS-COMP,HEAD LAMP,L
230071389
€ 37.50
23007A
230071390
rif: 23007A
LENS-COMP,HEAD LAMP,R
230071390
€ 37.50
23020
23020018
rif: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
49016
490161213
rif: 49016
COVER-SEAL,HEAD LAMP
490161213
€ 9.00
92009
920091654
rif: 92009
SCREW
920091654
€ 0.50
92009A
920091664
rif: 92009A
SCREW
920091664
€ 2.50
92009B
920091928
rif: 92009B
SCREW,TAPPING,5X40
920091928
€ 1.50
92015
920151094
rif: 92015
NUT,MUFFLER
920151094
€ 5.50
92015A
920151692
rif: 92015A
NUT
920151692
€ 4.00
92015B
920151757
rif: 92015B
NUT,5MM
920151757
€ 4.50
92022
92022125
rif: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027162
rif: 92027
COLLAR-REAR FENDER
92027162
€ 4.00
92069
920691114
rif: 92069
BULB,12V 45/45W,T15
920691114
€ 31.50
92075
920751690
rif: 92075
DAMPER,10X24X12
920751690
€ 3.00
92081
920811896
rif: 92081
SPRING,FOCUS ADJUST
€ 3.00
92145
921451346
rif: 92145
SPRING,BULB SETTING
921451346
€ 7.00
