Swingarm

KVF650-B1 PRAIRIE650 2002 USA

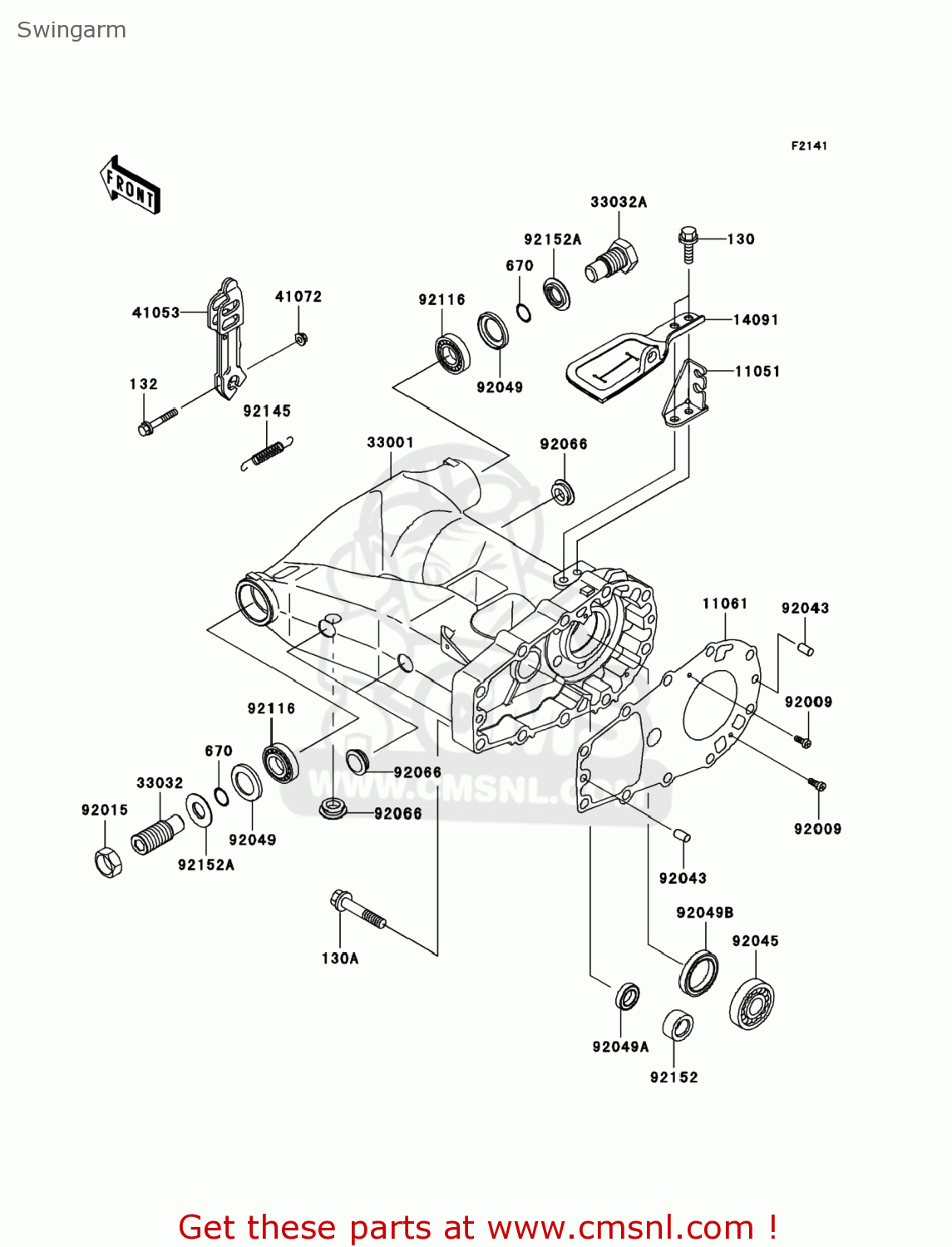

Swingarm diagramma KVF650-B1 PRAIRIE650 2002 USA

Swingarm KVF650-B1 PRAIRIE650 2002 USA
Swingarm KVF650-B1 PRAIRIE650 2002 USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
11051
110511762
rif: 11051
BRACKET,CABLE
€ 10.00
11061
110611065
rif: 11061
GASKET,SWING ARM (NAS)
110611065
€ 32.50
130
130J0822
rif: 130
BOLT-FLANGED
€ 1.00
130A
130P1055
rif: 130A
BOLT-FLANGED
€ 2.00
132
132G0640
rif: 132
BOLT-FLANGED-SMALL
132G0640
€ 2.50
14091
140911425
rif: 14091
COVER,BRAKE
140911425
€ 49.50
33001
330011585
rif: 33001
ARM-COMP-SWING
€ 803.50
33032
330321197
rif: 33032
SHAFT-SWING ARM,LEFT
330321197
€ 26.50
33032A
330321200
rif: 33032A
SHAFT-SWING ARM,RIGHT
330321200
€ 26.50
41053
410531094
rif: 41053
LEVER-BRAKE CAM
€ 42.50
41072
41072007
rif: 41072
NUT,6MM
41072007
€ 2.50
670
670B2016
rif: 670
O RING,16MM
670B2016
€ 1.00
92009
920091936
rif: 92009
SCREW,4X10
920091936
€ 1.00
92015
920151229
rif: 92015
NUT,22MM
920151229
€ 6.50
92043
920431567
rif: 92043
PIN,8X14
920431567
€ 1.50
92045
920451427
rif: 92045
BEARING-BALL,TMBO/28C
920451427
€ 29.00
92049
920491030
rif: 92049
OIL SEAL,26406
920491030
€ 6.00
92049A
920491537
rif: 92049A
SEAL-OIL,TC17X28X6
920491537
€ 7.50
92049B
920491538
rif: 92049B
SEAL-OIL,HTC35X48X7
920491538
€ 9.50
92066
920661534
rif: 92066
PLUG
920661534
€ 2.00
92116
921161001
rif: 92116
BEARING,R,4T30203E1
921161001
€ 36.00
92145
921451313
rif: 92145
SPRING,BRAKE LEVER RE
921451313
€ 3.00
92152
921521240
rif: 92152
COLLAR
921521240
€ 9.50
92152A
921521356
rif: 92152A
COLLAR
921521356
€ 6.50
