TUBING (2)

GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

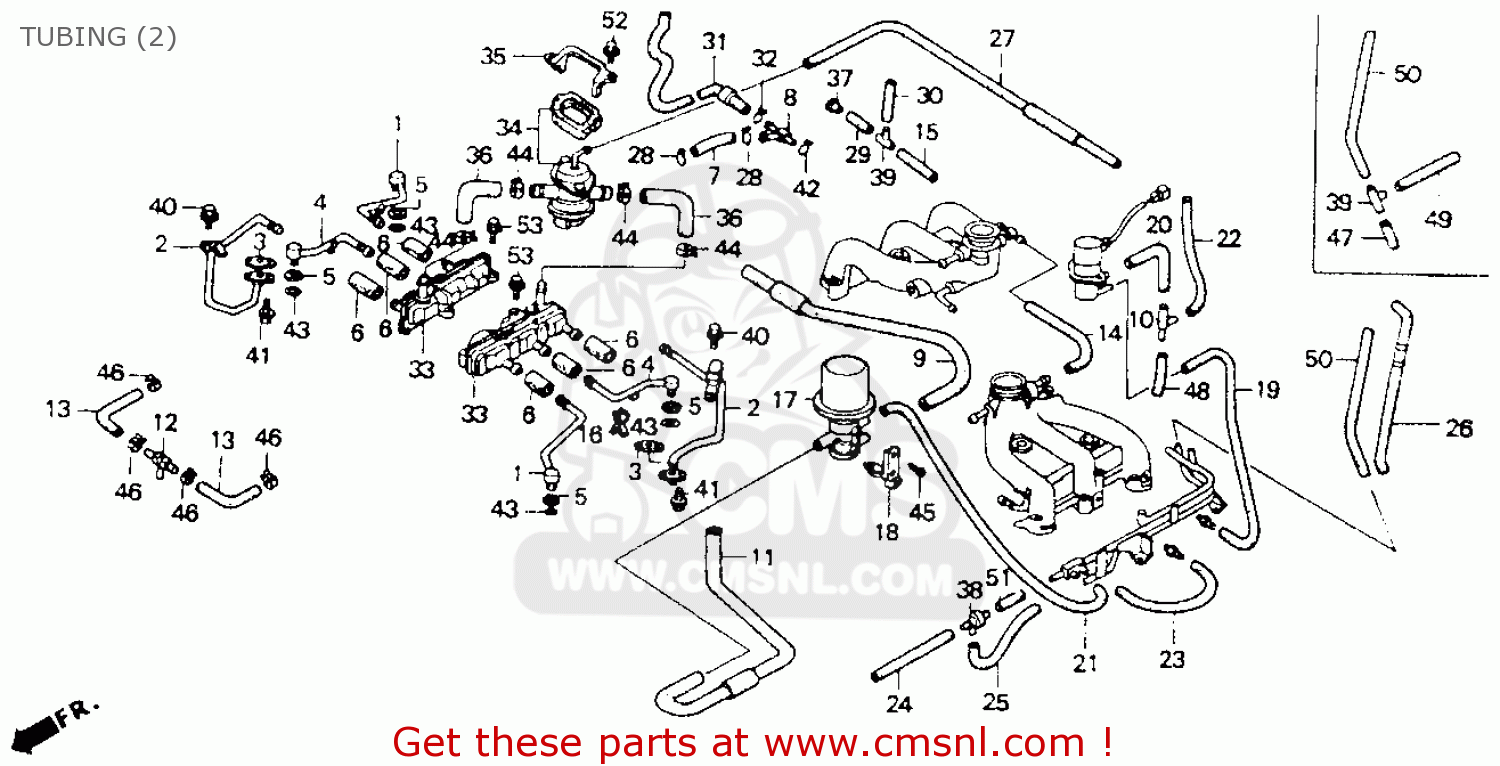

Tubing (2) diagramma GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

TUBING (2) GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
TUBING (2) GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
17130MN5020
rif: 1
PIPE A,AIR FEED
€ 24.50
2
17140MN5000
rif: 2
PIPE B,AIR FEED
17140MN5000
€ 46.00
3
17142MN5000
rif: 3
GASKET,AIR FEED P
17142MN5000
€ 1.50
4
17150MN5020
rif: 4
PIPE C,AIR FEED
€ 24.50
5
17155MT2000
rif: 5
RUBBER,AIR FEED P
17155MT2000
€ 3.00
6
17161MN5010
rif: 6
HOSE,AIR FEED
17161MN5010
€ 7.50
7
17162MN5000
rif: 7
TUBE A,AIR INTAKE
€ 13.00
8
17163MN5000
rif: 8
JOINT B,3WAY
€ 9.50
9
17164MN5000
rif: 9
TUBE B,AIR INTAKE
17164MN5000
€ 21.00
10
17165MY4000
rif: 10
JOINT,AIR INJECTI
€ 8.00
11
17170MY4000
rif: 11
TUBE F,AIR INTAKE
17170MY4000
€ 22.50
12
17171MW5003
rif: 12
VALVE,CHECK
€ 56.50
13
17172MN5000
rif: 13
TUBE G,AIR INTAKE
17172MN5000
€ 9.50
14
17173MN5000
rif: 14
TUBE C,PB
17173MN5000
€ 9.50
15
17175MT2000
rif: 15
TUBE E,PB
17175MT2000
€ 5.00
16
17176MN5000
rif: 16
CLAMPER J,HOSE
€ 4.50
17
17340MT2003
rif: 17
VLV ASSY,SHOT AIR
€ 139.50
18
17342MT2000
rif: 18
STAY,SHOT AIR VAL
€ 9.50
19
17350MT8000
rif: 19
TUBE,I PB
17350MT8000
€ 14.00
20
17351MT8000
rif: 20
TUBE J,PB
€ 7.00
21
17352MT8000
rif: 21
TUBE K,PB
17352MT8000
€ 10.50
22
17353MT8000
rif: 22
TUBE L,PB
17353MT8000
€ 9.50
23
17354MT8000
rif: 23
TUBE M,PB
17354MT8000
€ 14.50
24
17355MT8000
rif: 24
TUBE N,PB
€ 8.50
25
17356MT8000
rif: 25
TUBE O,PB
17356MT8000
€ 5.50
26
17357MY4000
rif: 26
TUBE P,PB
€ 17.50
27
17358MT8000
rif: 27
TUBE,PROTECTOR TU
€ 8.50
28
17369KB4670
rif: 28
CLIP,BRTHR.TUBE
17369KB4670
€ 2.50
29
17461MT2000
rif: 29
TUBE H,PB
€ 3.00
30
17462MT8000
rif: 30
TUBE,4.5X260
17462MT8000
€ 5.50
31
17472MT2000
rif: 31
TUBE,14MM (G4)
17472MT2000
€ 37.50
32
17724102700
rif: 32
CLIP,TANK HOSE
17724102700
€ 2.50
33
18610MW5000
rif: 33
CASE ASSY,REED VA
18610MW5000
€ 161.50
34
18650MN5024
rif: 34
AICV ASSY
18650MN5024
€ 128.00
35
18652MN5000
rif: 35
STAY,AICV
€ 5.50
36
18654MN5000
rif: 36
HOSE,AIR INTAKE
18654MN5000
€ 8.00
37
36034PD1000
rif: 37
PLUG,SEALING
€ 2.50
38
36627MN5000
rif: 38
VALVE,CHECK
€ 48.00
38
36627MN5003
rif: 38
VALVE,CHECK
36627MN5003
€ 48.00
39
36010PA6004
rif: 39
A
JOINT 3 WAY 3.5
36010PA6004
€ 15.50
39
36010PA6004
rif: 39
AC
JOINT 3 WAY 3.5
36010PA6004
€ 15.50
39
38773PB9000
rif: 39
A
JOINT,THREE WAY
€ 15.50
39
38773PB9000
rif: 39
AC
JOINT,THREE WAY
€ 15.50
40
90016MN5000
rif: 40
BOLT,FLANGE,6X14
90016MN5000
€ 2.50
41
90040MN5000
rif: 41
SOCKET BOLT,6X18
90040MN5000
€ 4.50
42
90654MK3780
rif: 42
CLIP TUBE,(B14)
90654MK3780
€ 2.50
43
91305422000
rif: 43
O-RING,9.8X2.4
91305422000
€ 2.50
43
91352425003
rif: 43
O-RING,9.8X2.4
91352425003
€ 2.50
44
91405PE0003
rif: 44
CLAMP,D20 TUBE
€ 7.00
45
9390425180
rif: 45
SCREW,TAP.5X10
€ 0.50
46
950024120008
rif: 46
CLAMP D 12.0 TUBE
950024120008
€ 2.00
47
950053500810M
rif: 47
AC
BULK TUBE,TA 35X8
950053500810M
€ 155.50
48
950053500810M
rif: 48
BULK TUBE,TA 35X8
950053500810M
€ 155.50
49
950053500810M
rif: 49
AC
BULK TUBE,TA 35X8
950053500810M
€ 155.50
50
950053500810M
rif: 50
BULK TUBE,TA 35X8
950053500810M
€ 155.50
51
950054500110M
rif: 51
BULK TUBE,TA 45X1
950054500110M
€ 38.00
52
957010601408
rif: 52
BOLT,FLANGE,6X14
957010601408
€ 1.00
53
957010602508
rif: 53
BOLT,FLANGE,6X25
957010602508
€ 1.50
