CYLINDER HEAD

GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

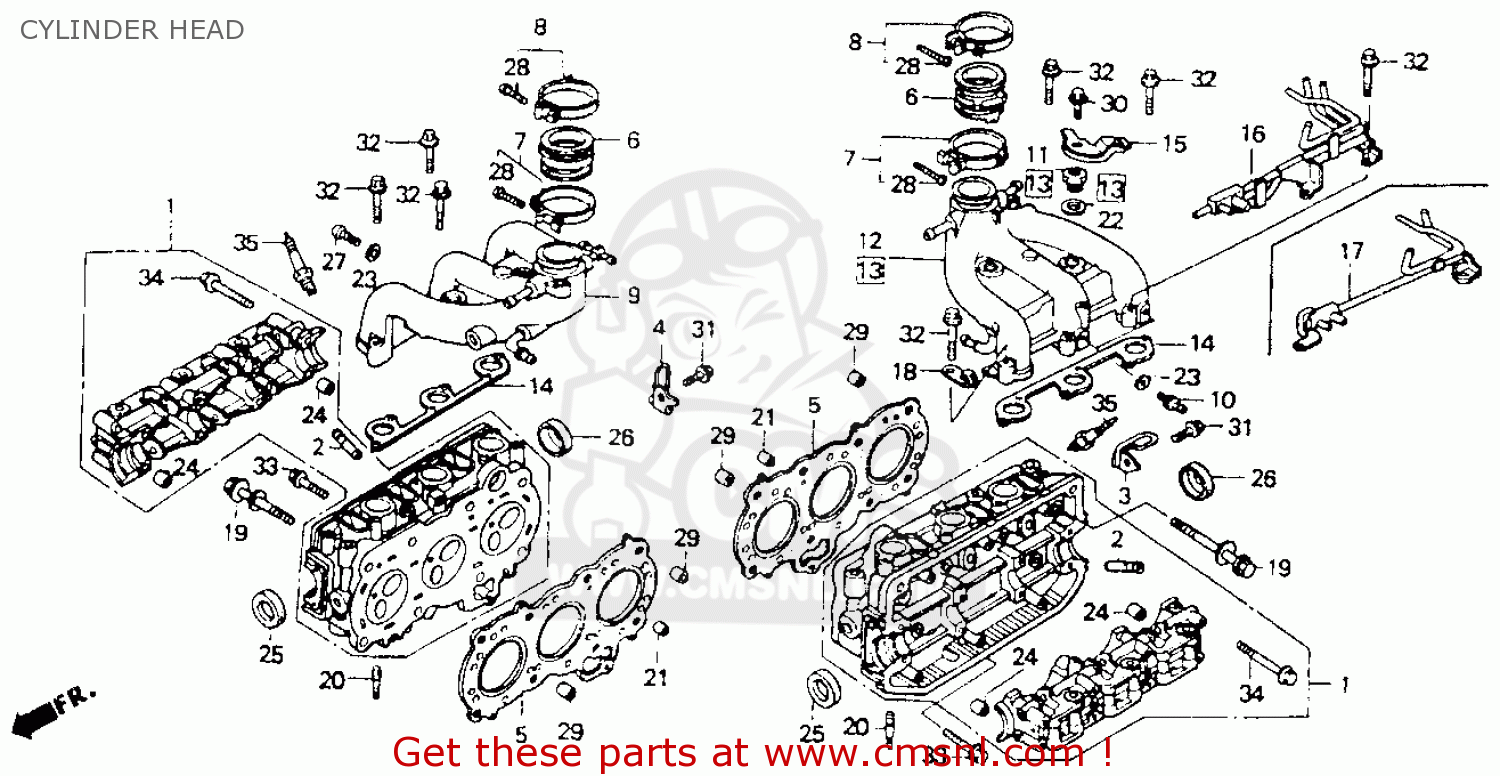

Cylinder head diagramma GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

CYLINDER HEAD GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
CYLINDER HEAD GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
12200MT8000
rif: 1
HEAD ASSY,CYLN
€ 1,232.00
2
12204MN5305
rif: 2
GUIDE,VALVE
12204MN5305
€ 19.50
3
12214MN5000
rif: 3
CLAMPER G,TUBE
€ 7.50
4
12215MT2000
rif: 4
CLAMPER,TUBE (D)
€ 5.00
5
12251MN5004
rif: 5
GASKET,CYLINDER H (NAS)
12251MN5004
€ 84.50
5
12251MN5013
rif: 5
GASKET,CYLINDER H (NAS)
12251MN5013
€ 84.50
5
12251MN5305
rif: 5
GASKET,CYLINDER H (NAS)
12251MN5305
€ 78.50
6
16211MN5000
rif: 6
INSULATOR,CARB
16211MN5000
€ 26.00
7
16218MN5000
rif: 7
BAND A,INSULATOR
16218MN5000
€ 10.00
8
16219MN5000
rif: 8
BAND B,INSULATOR
16219MN5000
€ 11.00
9
17110MY4000
rif: 9
MANIFOLD COMP.,R.
€ 298.00
10
17113MT8000
rif: 10
JOINT D.PB
€ 6.50
11
17116MT2740
rif: 11
AC
BOLT, SEALING (20MM)
€ 21.50
12
17120MY4000
rif: 12
A
MANIFOLD COMP.,L.
€ 298.00
13
17120MY4740
rif: 13
AC
MANIFOLD, L. IN.
€ 244.00
14
17231MN5003
rif: 14
GASKET,IN.MANIFOL
17231MN5003
€ 11.50
14
17231MN5004
rif: 14
GASKET,INLET MANI
17231MN5004
€ 11.50
15
17303MT2740
rif: 15
AC
STAY, AIR VENT PIPE
€ 11.00
16
17380MT8000
rif: 16
PIPE A,INSTALL
€ 61.00
18
32170443850
rif: 18
CLIP,WIRE HARN
32170443850
€ 5.50
18
91403663000
rif: 18
CLIP HIGH/T CORD
€ 5.00
19
90010MT8003
rif: 19
BOLT.FLANGE-WASH
90010MT8003
€ 10.00
20
90035MN5000
rif: 20
BOLT STUD 8-6X40
90035MN5000
€ 3.50
21
90084MN5000
rif: 21
ORIFICE,2.0
90084MN5000
€ 7.00
22
90441MN5000
rif: 22
AC
WASHER,SEALING 20
90441MN5000
€ 3.50
23
90452323000
rif: 23
WASHER 5MM
90452323000
€ 2.00
24
90701GB4680
rif: 24
PIN,DOWEL,10X13.5
€ 2.00
25
91209371003
rif: 25
SEAL,OIL 27X43X9
91209371003
€ 14.50
26
91209463013
rif: 26
CAP,SEAL,43X9
91209463013
€ 11.00
27
93500050080A
rif: 27
SCREW,CROSS 5X8
93500050080A
€ 0.50
28
93500050250G
rif: 28
SCREW,PAN,5X25
93500050250G
€ 1.50
29
9430112200
rif: 29
DOWEL,PIN,12X20
9430112200
€ 2.00
30
957010601008
rif: 30
AC
BOLT,FLANGE,6X10
957010601008
€ 1.50
31
957010601408
rif: 31
BOLT,FLANGE,6X14
957010601408
€ 1.00
32
957010603508
rif: 32
BOLT,FLANGE,6X35
957010603508
€ 1.00
33
957010604008
rif: 33
BOLT,FLANGE,6X40
957010604008
€ 1.50
34
957010808000
rif: 34
BOLT,FLANGE,8X80
957010808000
€ 2.00
35
9806956916
rif: 35
SPARK PLUG(DPR6EA
9806956916
€ 9.50
35
9806956926
rif: 35
PLUG,SPARK (X20EP
9806956926
€ 8.50
35
9806957916
rif: 35
SPARK PLUG(NGK)
9806957916
€ 9.50
35
9806957926
rif: 35
SPARK PLUG (ND)
9806957926
€ 9.50
35
9806958916
rif: 35
SPARK PLUG (NGK)
9806958916
€ 9.50
35
9806958926
rif: 35
SPARK PLUG (ND)
9806958926
€ 8.50
