REVERSE BAR

GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

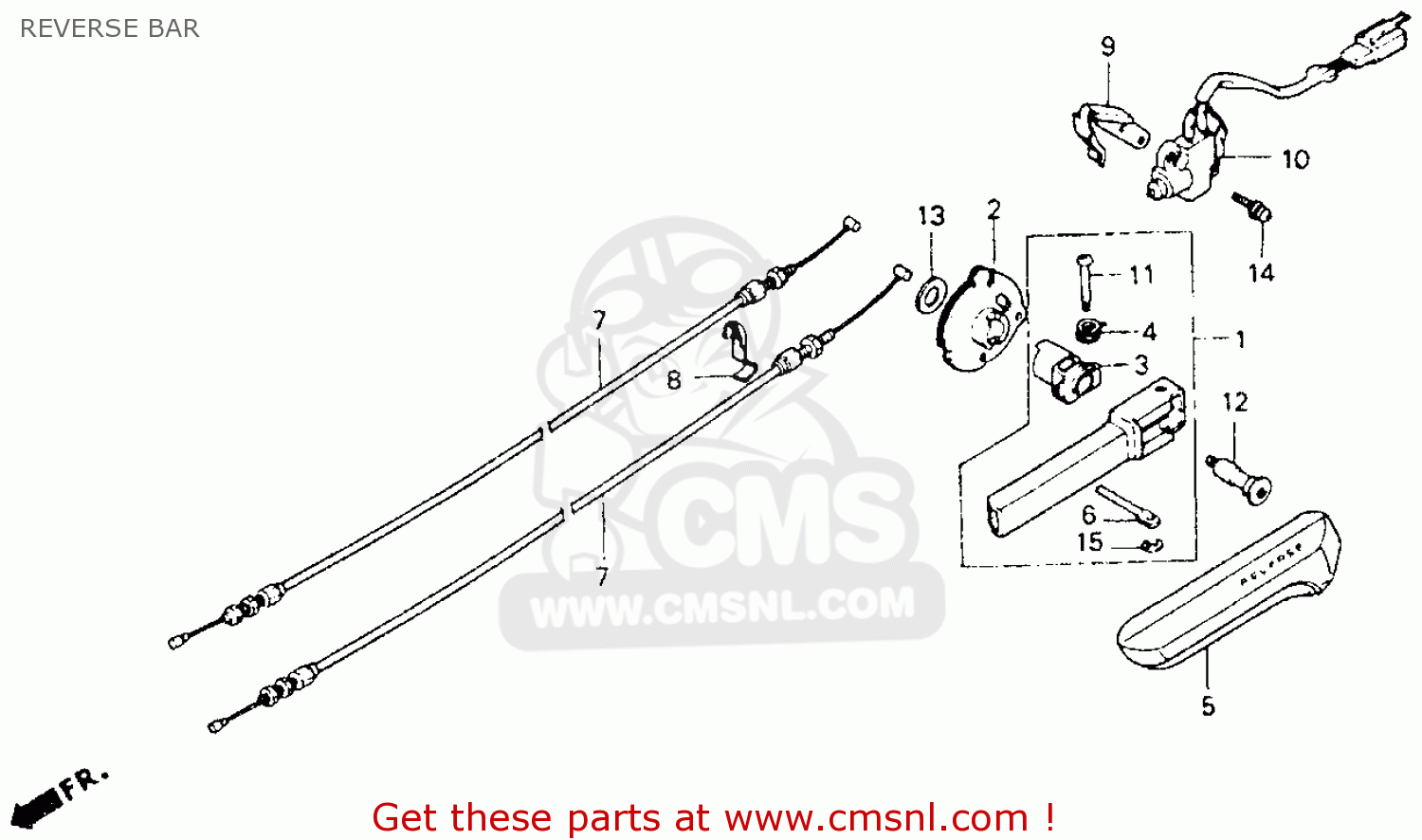

Reverse bar diagramma GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA

REVERSE BAR GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
REVERSE BAR GL1500A GOLDWING ASPENCADE 1992 (N) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
24800MT8000
rif: 1
BAR ASSY,RVS
€ 94.50
2
24802MN5000
rif: 2
DRAM COMP,RVS.
€ 38.50
3
24804MN5000
rif: 3
JOINT COMP.,RVS
24804MN5000
€ 27.00
4
24806MN5000
rif: 4
SPG.,RVS ARM SET
24806MN5000
€ 3.00
5
24807MT8000
rif: 5
GRIP,RVS
24807MT8000
€ 14.00
6
24808MN5000
rif: 6
PIN,REVERSE BAR
24808MN5000
€ 32.00
7
24810MT2000
rif: 7
CABLE COMP.,REVER
24810MT2000
€ 33.50
8
24813MN5000
rif: 8
SPRING,REVERSE DR
24813MN5000
€ 5.00
9
24814MN5000
rif: 9
SPG.,RVS SW
24814MN5000
€ 7.00
10
35370MN5003
rif: 10
SWITCH ASSY.,REVE
35370MN5003
€ 22.00
11
90116MN5000
rif: 11
SCREW PAN RVS PVO
90116MN5000
€ 1.00
12
90118MN5000
rif: 12
BOLT RVS.,JOINT
90118MN5000
€ 8.00
13
90453444000
rif: 13
WASHER,THRUST
90453444000
€ 4.00
14
938930401208
rif: 14
WASHER,SCREW 4X12
938930401208
€ 0.50
15
9454003018
rif: 15
E RING,3
9454003018
€ 1.50
