OIL COOLER

TRX250EX SPORTRAX 2004 (4) AUSTRALIA

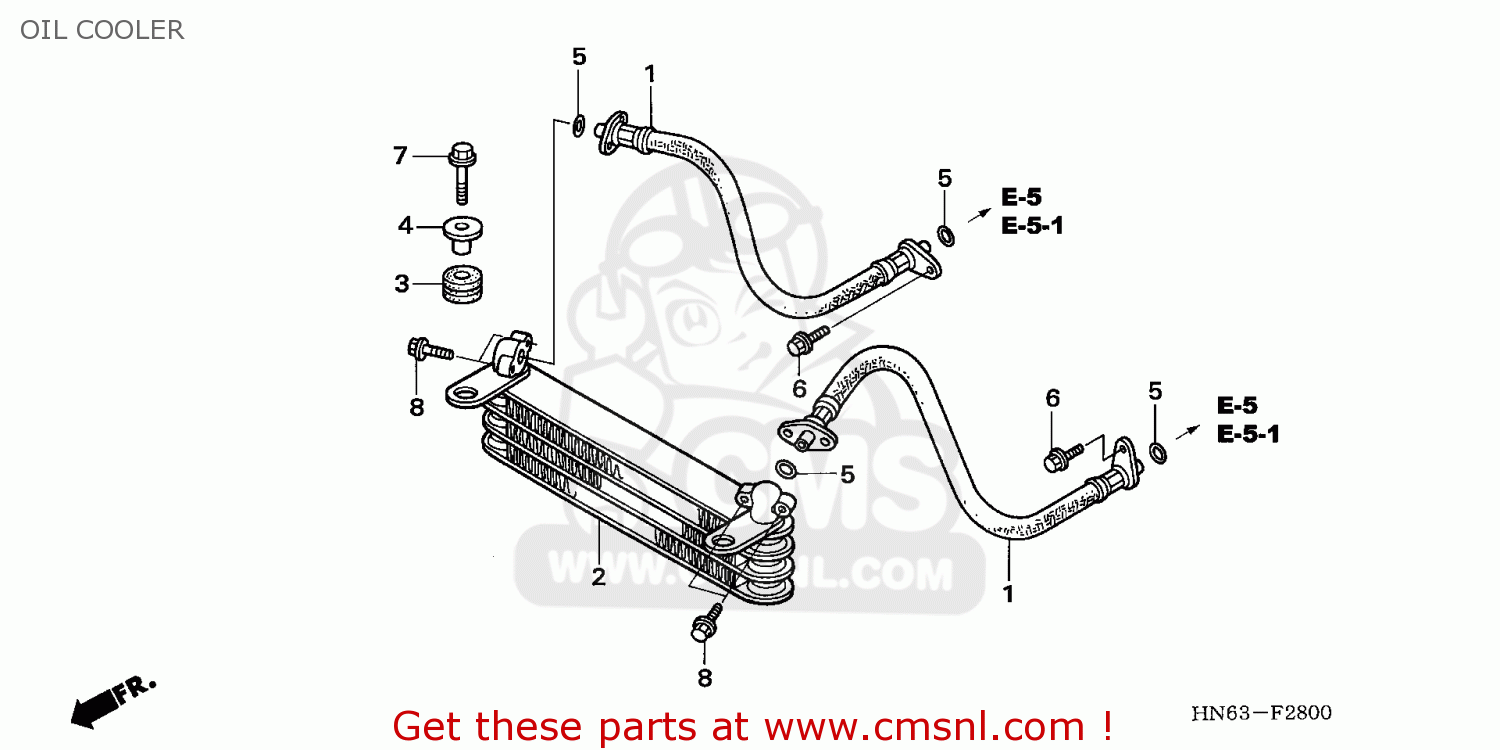

Oil cooler schéma TRX250EX SPORTRAX 2004 (4) AUSTRALIA

OIL COOLER TRX250EX SPORTRAX 2004 (4) AUSTRALIA

les prix sont en EUR

ref

pièce #

description

quantité

1

15520HN6000
ref: 1

HOSE COMP R,OIL

€ 56.00

2

15600HN6000
ref: 2

COOLER COMP,OIL

€ 287.00

3

19051KA3830
ref: 3

RUBBER,RAD.MOUNT

€ 5.00

4

19052MN8000
ref: 4

COLLAR,RAD MT

€ 4.50

5

91314HN6000
ref: 5

O-RING 11X2.4

€ 3.00

6

957010601800
ref: 6

BOLT FLANGE 6X18

€ 1.00

7

957010602200
ref: 7

BOLT,FLANGE,6X22

€ 1.50

8

960010602000
ref: 8

BOLT FLANG 6X20

€ 1.50
