KNUCKLE

TRX250EX SPORTRAX 2004 (4) AUSTRALIA

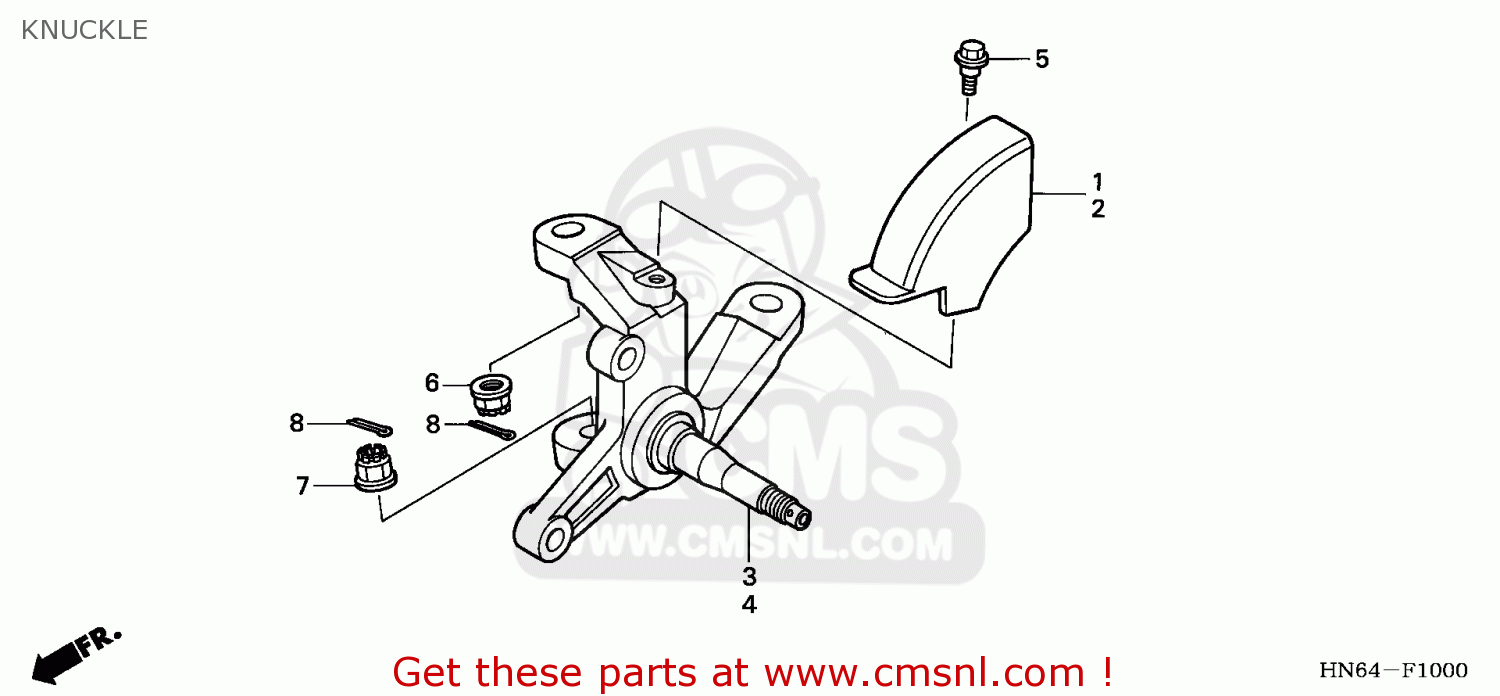

Knuckle schéma TRX250EX SPORTRAX 2004 (4) AUSTRALIA

KNUCKLE TRX250EX SPORTRAX 2004 (4) AUSTRALIA

les prix sont en EUR

ref

pièce #

description

quantité

1

45331HN1000
ref: 1

COVER,R FR CALIPE

€ 11.50

2

45341HN1000
ref: 2

COVER,L FR DISK

€ 5.00

3

51210HN6A00
ref: 3

KNUCKLE COMP,R

€ 277.00

4

51260HN6A00
ref: 4

KNUCKLE COMP,L

€ 205.50

5

90111HN6000
ref: 5

BOLT FLANGE 6MM

€ 2.50

6

90310HB9000
ref: 6

NUT,CASTLE,12MM

€ 3.00

7

90363SF1000
ref: 7

NUT CASTLE 12MM

€ 5.50

8

9420130180
ref: 8

PIN COTTER 3.0MM

€ 1.00
