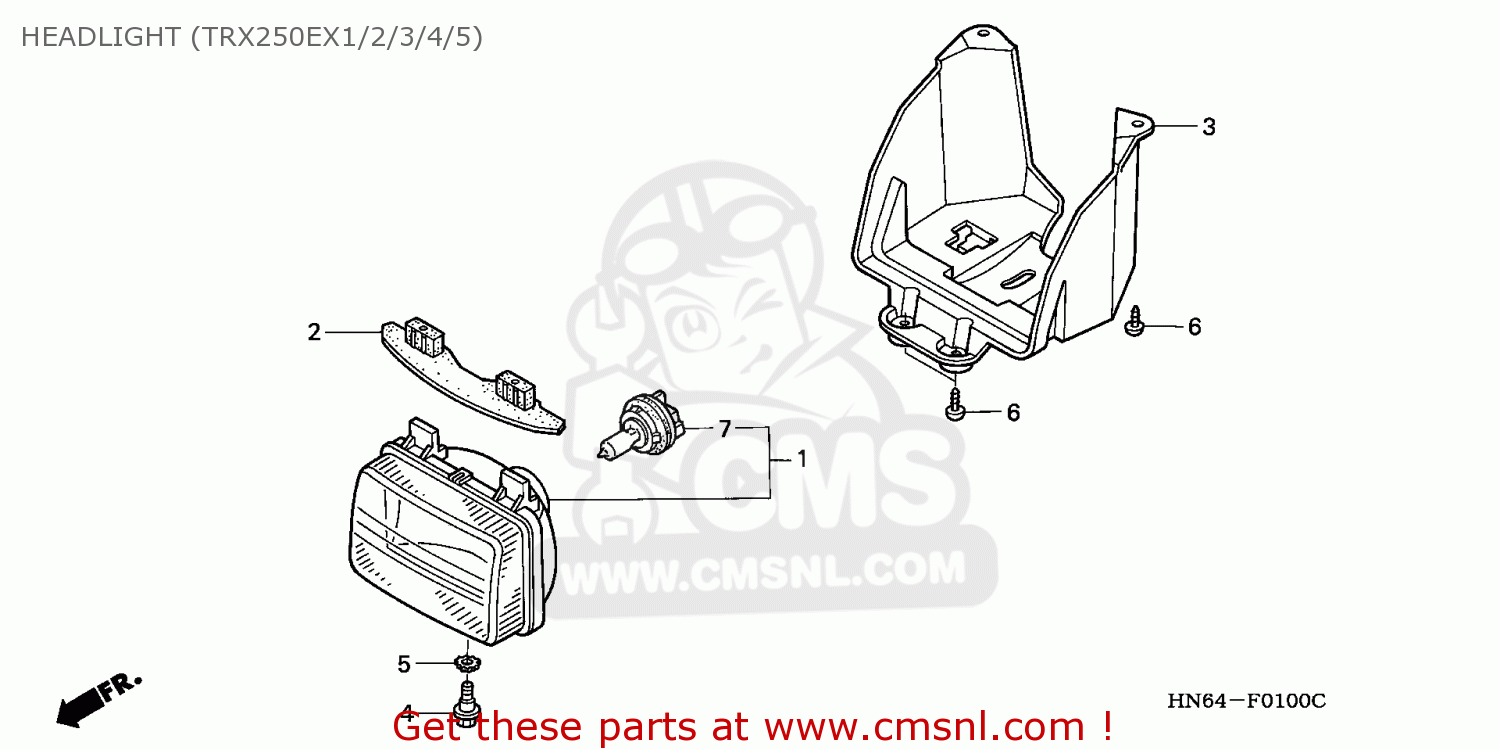

HEADLIGHT (TRX250EX1/2/3/4/5)

TRX250EX SPORTRAX 2004 (4) AUSTRALIA

Headlight (trx250ex1/2/3/4/5) schéma TRX250EX SPORTRAX 2004 (4) AUSTRALIA

HEADLIGHT (TRX250EX1/2/3/4/5) TRX250EX SPORTRAX 2004 (4) AUSTRALIA

les prix sont en EUR

ref

pièce #

description

quantité

1

33100HN6010
ref: 1

LIGHT ASSY,HEAD

€ 108.50

2

33101HN6000
ref: 2

RUBBER,H/L

€ 1.00

3

61301HN6000
ref: 3

COVER,HEAD LIGHT

€ 20.50

4

90101HN1000
ref: 4

SCREW,ADJUST

€ 5.50

5

90307GJ6003
ref: 5

WASH,LOCK 6MM

€ 3.50

6

9390325320
ref: 6

SCREW,TAPPING,5X16

€ 1.00

7

33150HN6010
ref: 7

BULB,SOCKET COMP.

€ 68.50
