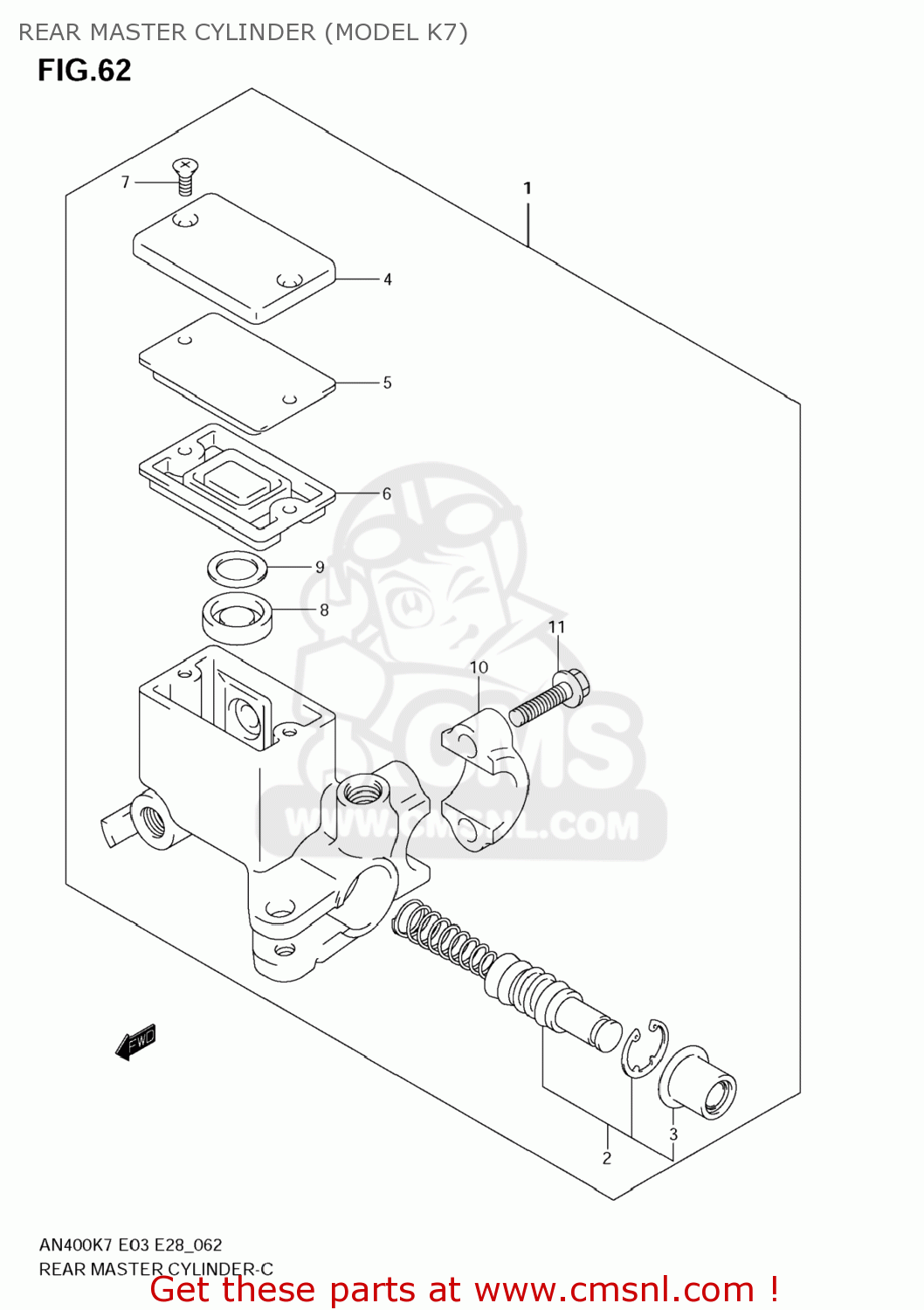

REAR MASTER CYLINDER (MODEL K7)

AN400 BURGMAN 2007 (K7) USA (E03)

Rear master cylinder (model k7) diagrama AN400 BURGMAN 2007 (K7) USA (E03)

REAR MASTER CYLINDER (MODEL K7) AN400 BURGMAN 2007 (K7) USA (E03)

los precios están en EUR

ref

parte #

descripción

cantidad

1

6960014F61
ref: 1

CYLINDER ASSY,RR MASTER

€ 210.00

2

5960004810
ref: 2

PISTON/CUP SET

€ 33.50

3

5966644300
ref: 3

BOOT

€ 5.00

4

5966914F10
ref: 4

CAP

€ 12.50

5

5966814F00
ref: 5

PLATE,DIAPHRAGM

€ 7.00

6

5966704700
ref: 6

DIAPHRAGM

€ 6.50

7

6968949300
ref: 7

SCREW

€ 1.50

8

5974815400
ref: 8

SEPERATOR

€ 7.00

9

5974915400
ref: 9

PLATE

€ 2.00

10

5967136500
ref: 10

HOLDER

€ 10.00

11

5967502FA0
ref: 11

BOLT(6X22)

€ 3.00
