MUFFLER

AN400 BURGMAN 2007 (K7) USA (E03)

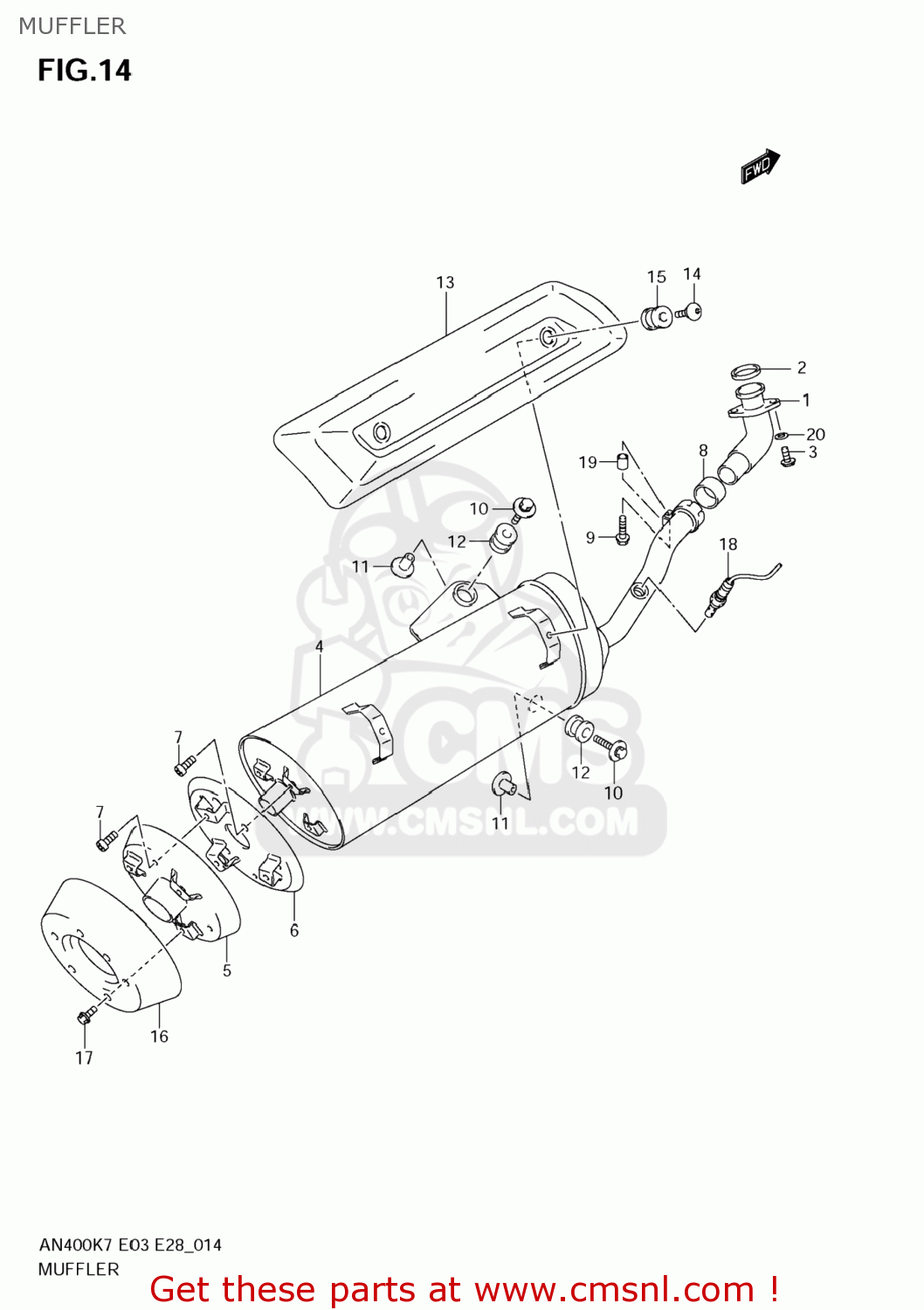

Muffler diagrama AN400 BURGMAN 2007 (K7) USA (E03)

MUFFLER AN400 BURGMAN 2007 (K7) USA (E03)
MUFFLER AN400 BURGMAN 2007 (K7) USA (E03)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
1415005H00
ref: 1-1
PIPE,EXHAUST
1415005H00
€ 106.50
1-2
1415005H01
ref: 1-2
PIPE,EXHAUST
1415005H01
€ 67.50
2-1
1418118C00
ref: 2-1
GASKET,EXHAUST (NAS)
1418118C00
€ 5.50
2-2
1418146E10
ref: 2-2
GASKET,EXHAUST
1418146E10
€ 5.50
3
0910608120
ref: 3
09106-08151
BOLT
0910608120
€ 3.50
4
1431005H23H01
ref: 4
BODY,MUFFLER
€ 969.50
4
1431005H23H01
ref: 4
BODY,MUFFLER
€ 969.50
4
1431005H23H01
ref: 4
BODY,MUFFLER
€ 969.50
4
1431005H23H01
ref: 4
BODY,MUFFLER
€ 969.50
4
1431005H23H01
ref: 4
BODY,MUFFLER
€ 969.50
5
1476005H00
ref: 5
STAY,MUFFLER RR COVER
1476005H00
€ 25.50
6
1477005H00
ref: 6
STAY,MUFFLER RR COVER NO.2
1477005H00
€ 19.00
7
0910606076
ref: 7
BOLT(6X10)
0910606076
€ 2.50
8-1
1477113E00
ref: 8-1
CONNECTOR,MUFFLER
1477113E00
€ 9.50
8-2
1477105H01
ref: 8-2
CONNECTOR,MUFFLER JOINT
1477105H01
€ 17.00
9
0910308365
ref: 9
BOLT(8X35)
0910308365
€ 3.50
10
0911608134
ref: 10
BOLT(8X45)
0911608134
€ 4.50
11
0918008152
ref: 11
SPACER(8.6X12X24.2)
0918008152
€ 4.50
12
0932012048
ref: 12
CUSHION
0932012048
€ 4.00
13
1478105H00
ref: 13
COVER,MUFFLER
1478105H00
€ 116.00
14
0913906087
ref: 14
09139-06126
SCREW(6X20)
0913906087
€ 3.50
15
0932008070
ref: 15
CUSHION
0932008070
€ 7.00
16
1479005H00
ref: 16
COVER,MUFFLER RR
1479005H00
€ 88.50
17
0910606078
ref: 17
BOLT(6X15)
0910606078
€ 3.00
18
1821315G00
ref: 18
SENSOR,OXYGEN
€ 348.50
19
1445806H00
ref: 19
SPACER,MUFFLER
1445806H00
€ 4.50
20
0916408022
ref: 20
WASHER
0916408022
€ 4.00
