METER PANEL

AN400 BURGMAN 2007 (K7) USA (E03)

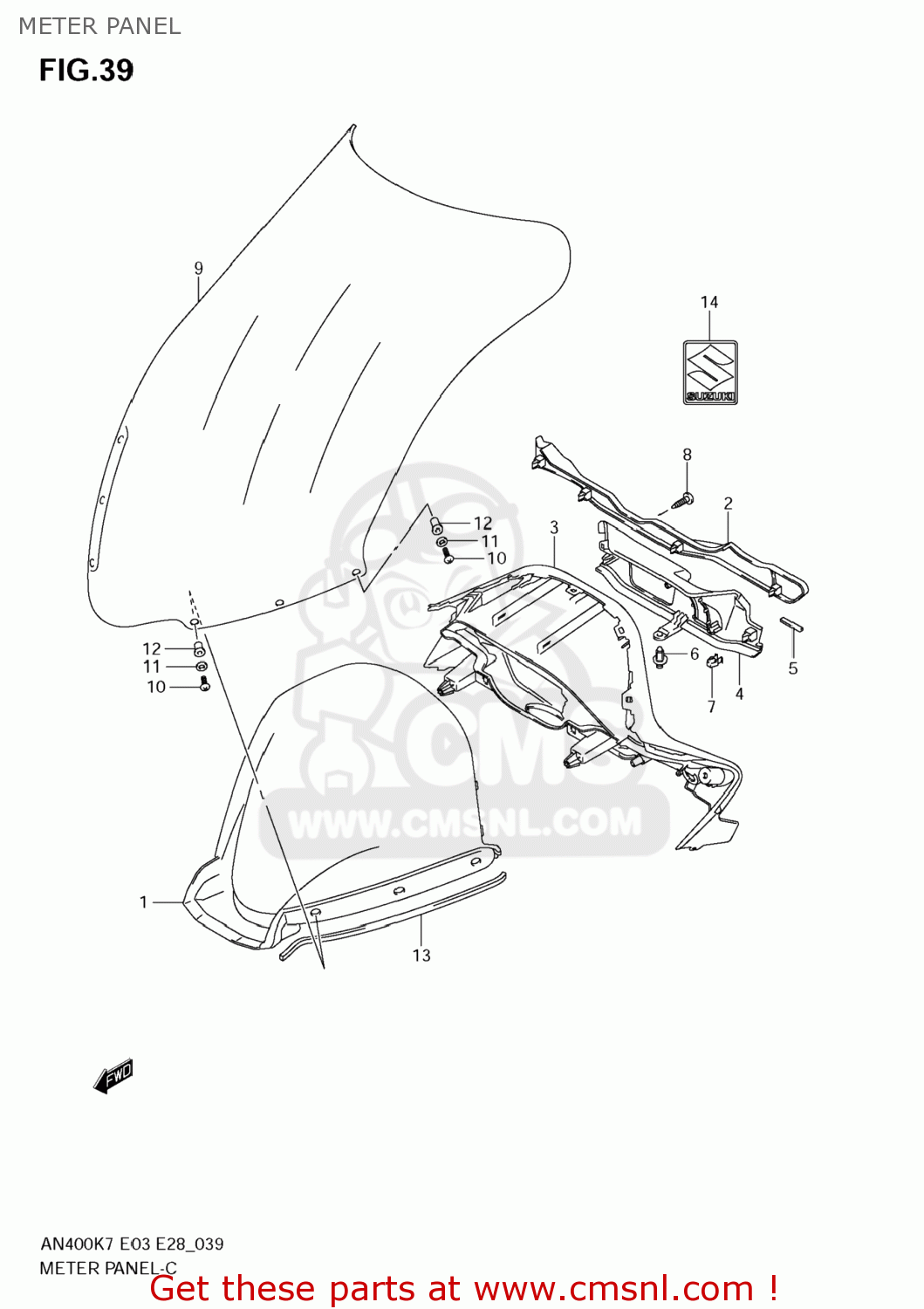

Meter panel diagrama AN400 BURGMAN 2007 (K7) USA (E03)

los precios están en EUR

ref

parte #

descripción

cantidad

9442105H00291
ref: 1

PANEL,METER FR

€ 135.50

9442305H01291
ref: 2

PANEL,METER UPR

€ 87.00

9442205H00291
ref: 3

PANEL,METER RR

€ 126.00

4-1

9467105H00291
ref: 4-1
94671-05H01-291

PANEL,FRONT

€ 56.50

4-2

9467105H01291
ref: 4-2

PANEL,FR

€ 56.50

9444306G00
ref: 5

TAPE(6X25X0.13)

€ 2.00

09409063225PK
ref: 6

CLIP(BLACK)

€ 2.50

0940908326
ref: 7

CLIP

€ 2.00

035410516A
ref: 8

SCREW

€ 1.00

9461105H00
ref: 9

WINDSCREEN

€ 717.00

021420520B
ref: 10

SCREW

€ 1.50

083220105B
ref: 11

WASHER

€ 2.00

0915905045
ref: 12

NUT

€ 5.50

9442405H00
ref: 13

CUSHION

€ 2.50

6828135F00
ref: 14

EMBLEM,S

€ 9.00
