STEERING STEM

VX800U 1992 (N) (E22)

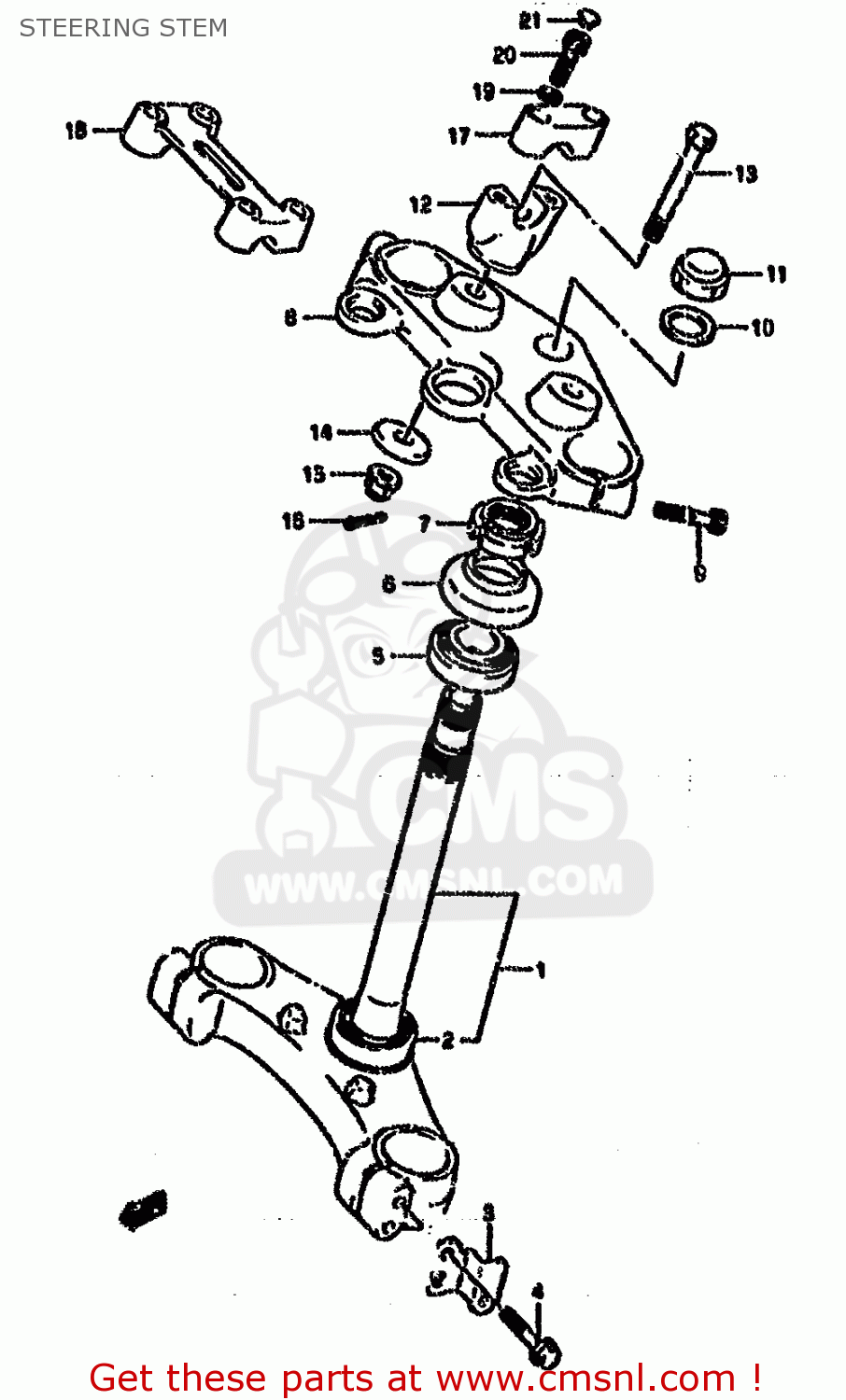

Steering stem diagrama VX800U 1992 (N) (E22)

STEERING STEM VX800U 1992 (N) (E22)
STEERING STEM VX800U 1992 (N) (E22)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
5141045C00
ref: 1-1
MODEL L
STEM,STEERING
€ 458.00
1-2
5141045C0023W
ref: 1-2
MODEL M/N/P
STEM,STEERING(SILVER)
€ 458.00
1-3
5141045C0020H
ref: 1-3
MODEL R/T
STEM,STEERING (SILVER)
5141045C0020H
€ 245.50
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 48.50
3-1
3595645C01
ref: 3-1
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
3-2
3595745C01
ref: 3-2
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
4
5132827C20
ref: 4
BOLT,STEM HEAD(8X40)
5132827C20
€ 4.00
5
0926525008
ref: 5
TAPER,ROLLER BEARING
0926525008
€ 39.00
6-1
5164349001
ref: 6-1
MODEL L/M/N/P
DUST SEAL,STEERING,UPPER
5164349001
€ 8.00
6-2
5164349002
ref: 6-2
MODEL R/T
SEAL,STEERING UPR DUST
5164349002
€ 8.00
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
5163128000
€ 10.00
8-1
5131145C00
ref: 8-1
MODEL L
HEAD,STEERING STEM
€ 289.50
8-2
5131145C0023W
ref: 8-2
MODEL M/N/P
HEAD,STEERING STEM(SILVER)
€ 289.50
8-3
5131145C0020H
ref: 8-3
MODEL R/T
HEAD,STEERING STEM (SILVER)
€ 195.00
9
0713008307
ref: 9
BOLT
0713008307
€ 3.50
10
5135624B01
ref: 10
WASHER(22.5X32X1.6)
5135624B01
€ 4.00
11
5135324B00
ref: 11
NUT,CAP
5135324B00
€ 19.00
12
5622145C00
ref: 12
HOLDER,HANDLE LWR
€ 30.50
13
5632128C00
ref: 13
BOLT
5632128C00
€ 6.00
14
5135627510
ref: 14
WASHER,FRONT FORK
€ 3.50
15
0831931107
ref: 15
NUT
0831931107
€ 2.00
16
0411120208
ref: 16
PIN 20X20
0411120208
€ 1.00
17
5621145C00
ref: 17
MODEL L/M
HOLDER,HANDLEBAR
5621145C00
€ 16.00
18
5621145C60
ref: 18
MODEL N/P/R/T
HOLDER,HANDLE UPR
5621145C60
€ 41.00
19
0916408015
ref: 19
WASHER
0916408015
€ 2.50
20
0713008307
ref: 20
BOLT
0713008307
€ 3.50
21
0925006004
ref: 21
CAP(OD:14.5)
0925006004
€ 1.50
