AIR CLEANER (FRONT)

VX800U 1992 (N) (E22)

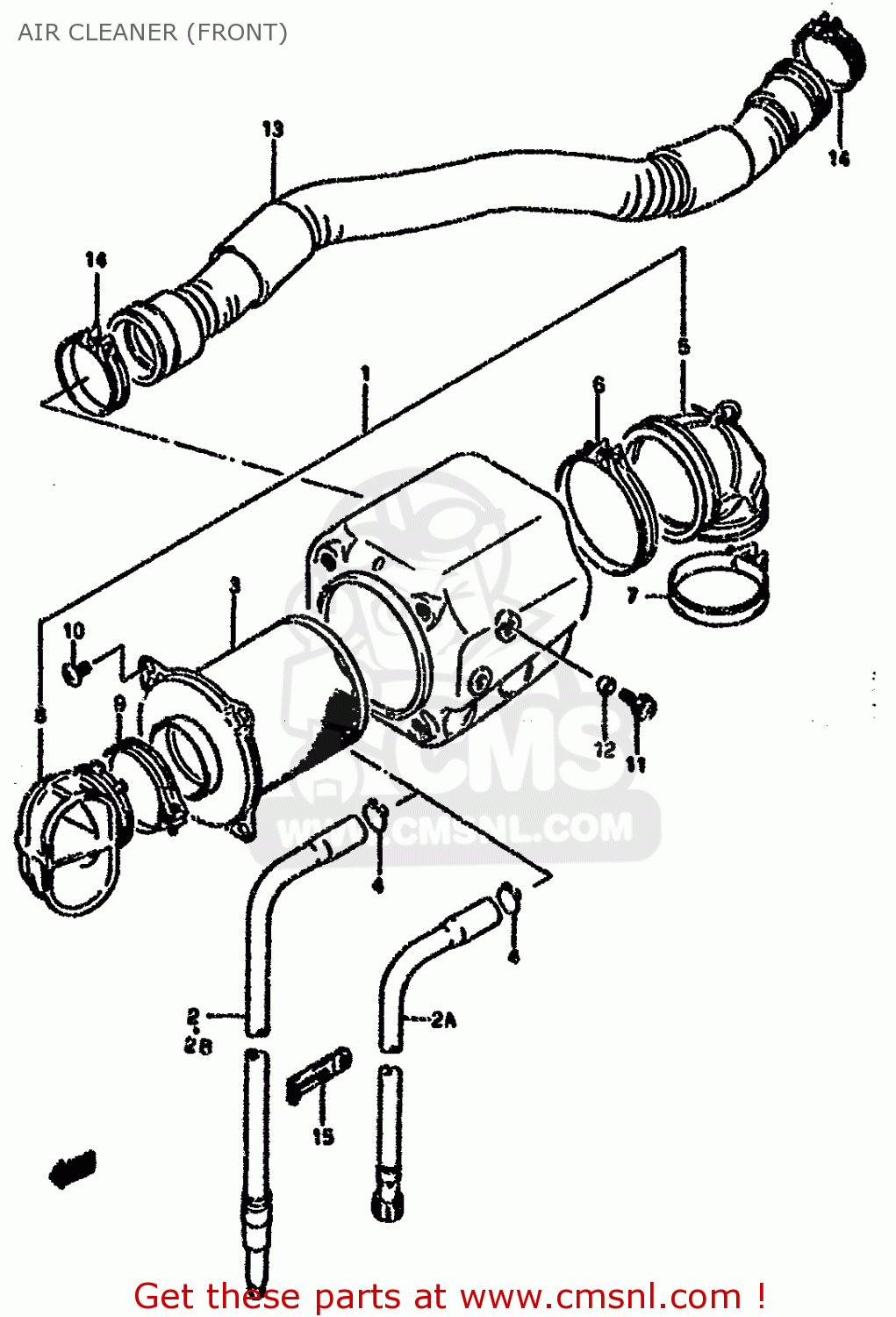

Air cleaner (front) diagrama VX800U 1992 (N) (E22)

AIR CLEANER (FRONT) VX800U 1992 (N) (E22)
AIR CLEANER (FRONT) VX800U 1992 (N) (E22)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
1370045C00
ref: 1-1
E1,MODEL L E16
CLEANER ASSEMBLY,AIR,FRONT
€ 103.50
1-2
1370045C11
ref: 1-2
E2,E4,E15,E17,E18,E2
CLEANER ASSY,AIR FRONT
€ 170.50
1-3
1370045C40
ref: 1-3
MODEL T
CLEANER ASSY,AIR FRONT
€ 133.50
1-4
1370045C11
ref: 1-4
MODEL T E18
CLEANER ASSY,AIR FRONT
€ 170.50
2
1387011714
ref: 2
MODEL L/M/N/P/R
TUBE,DRAIN
€ 18.50
2A
1387011668
ref: 2A
MODEL T
TUBE,DRAIN
1387011668
€ 18.50
2B
1387011714
ref: 2B
MODEL T E18
TUBE,DRAIN
€ 18.50
3-1
1378045C00
ref: 3-1
MODEL L/M/N/P/R MODE
FILTER ASSY,AIR
1378045C00
€ 42.00
3-2
1378045C10
ref: 3-2
MODEL L/M/N/P/R E2,E
FILTER ASSY,AIR
1378045C10
€ 42.00
3-3
1378045C40
ref: 3-3
MODEL T
FILTER ASSY,CLEANER
1378045C40
€ 36.50
3-4
1378045C10
ref: 3-4
MODEL T E18
FILTER ASSY,AIR
1378045C10
€ 42.00
4
0940113409
ref: 4
-13824-00A00
CLIP
0940113409
€ 2.50
5
1388138B00
ref: 5
TUBE,AIR CLEANER OUTLET
1388138B00
€ 23.50
6
0940272207
ref: 6
CLAMP
0940272207
€ 8.00
7
0940258208
ref: 7
CLAMP
0940258208
€ 4.50
8
1389145C01
ref: 8
TUBE,INLET
€ 21.00
9
0940256208
ref: 9
CLAMP
0940256208
€ 3.50
10
0214205087
ref: 10
SCREW
0214205087
€ 2.00
11
0211276163
ref: 11
SCREW
0211276163
€ 2.00
12
0918006092
ref: 12
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
13
1373045C00
ref: 13
HOSE,AIR CLEANER
1373045C00
€ 55.50
14
0940242208
ref: 14
CLAMP
0940242208
€ 4.00
15-1
0940406402
ref: 15-1
MODEL L/M/N/P/R
CLAMP
€ 2.00
15-2
0940406429
ref: 15-2
MODEL T
CLAMP(L:45)
€ 2.00
